AFF 5630SD Air and Hydraulic Bottle Jack, Heavy Duty Steel, 30 Ton Capacity, 10.94" to 20.59" Lift Range

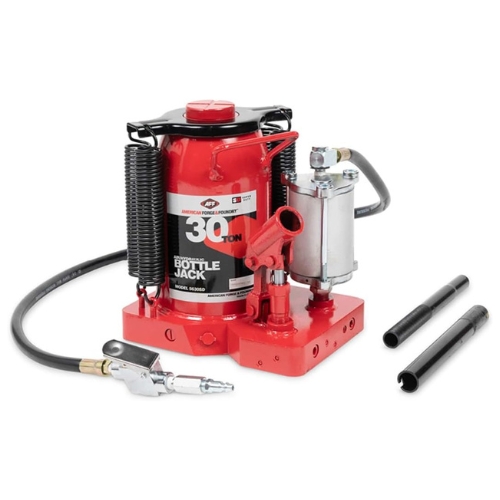

- The AFF 5630SD is a super duty steel air and hydraulic bottle jack with a 30 ton lifting capacity. Designed for lifting trucks, heavy equipment, and industrial machinery, it features a welded tank and frame, thick reinforced base, and dual operation for both air assist and manual lifting.
- Features:
- 30 ton lifting capacity suitable for heavy duty fleet, industrial, and agricultural applications.
- Low profile height of 10.94 inches allows positioning under vehicles with limited clearance.
- Maximum lift height of 20.59 inches with a 5.91 inch stroke for extended reach.

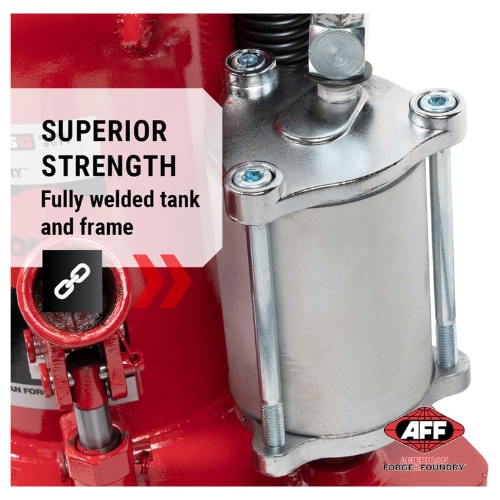

- Welded tank and frame construction enhances durability and performance under heavy or off center loads.

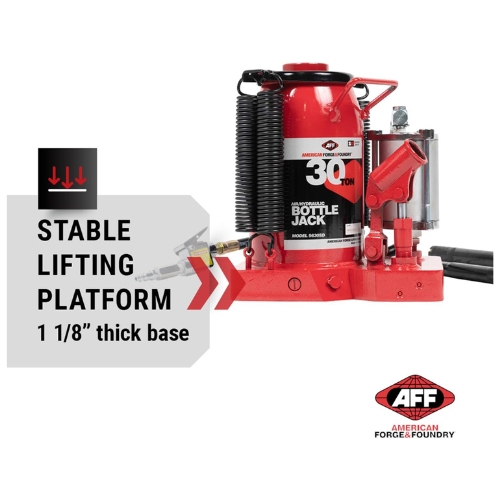

- 1-1/8 inch thick steel base provides a stable and secure lifting platform.
- Dual mode operation: powered by shop air for efficiency or manual handle for flexibility.

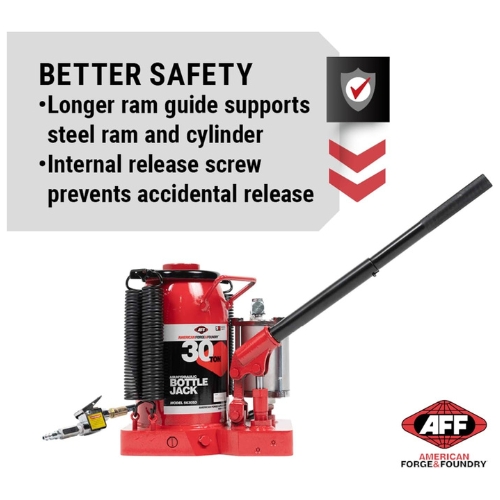

- Shielded release screw ensures safe and controlled lowering.
- Specifications:
- Manufacturer: AFF (American Forge & Foundry)
- Part Number: 5630SD
- Material: Steel
- Capacity: 30 tons

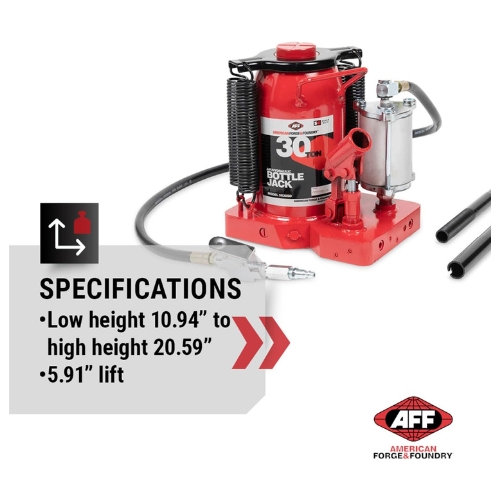

- Low Height: 10.94 inches
- Maximum Height: 20.59 inches
- Lift Stroke: 5.91 inches
- Base Thickness: 1-1/8 inches
- System Compatibility/Application: Built for lifting large trucks, heavy construction equipment, and industrial machinery in demanding shop and field conditions
- The AFF 5630SD may also be referred to as a 30 Ton Super Duty Air and Hydraulic Bottle Jack or Heavy Duty Steel Bottle Jack Model 5630SD.
The AFF 5630SD combines high capacity lifting power with rugged steel construction. With its dual air and manual operation, reinforced base, and welded design, it is engineered for safe, efficient performance in professional heavy duty service environments.
Q: What is the minimum clearance required to use the AFF 5630SD?
A: It requires at least 10.94 inches of clearance in its lowest position.
Q: What is the maximum lifting height of this jack?
A: The AFF 5630SD raises up to 20.59 inches with a stroke of 5.91 inches.
Q: Can this jack operate without an air supply?
A: Yes, it includes a manual handle for operation when shop air is not available.
