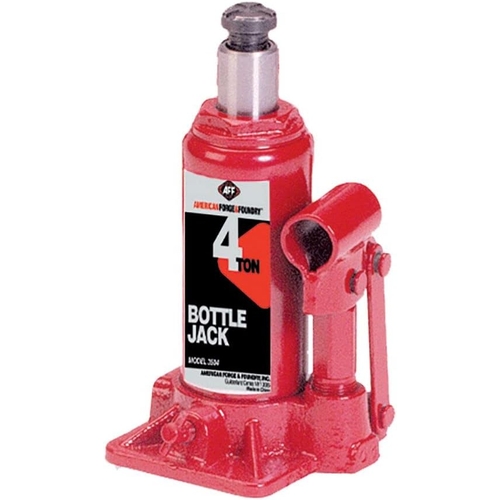

American Forge & Foundry 3504 Bottle Jack, Heavy Duty, 4 Ton Capacity, Manual Centered Pump & Ram
- American Forge & Foundry 3504 Bottle Jack is a manual heavy duty hydraulic jack with centered pump and ram design, machine hardened steel saddle, and built for automotive, industrial, marine, and agricultural applications.
- Features:
- 4 Ton lifting capacity for mid-duty uses.
- Low height of 6-1/2 inch allows access under low ground clearance gear.
- High height reaches 13-1/4 inch to accommodate taller lift requirements.
- Lift stroke of 4-1/4 inch to raise loads efficiently.
- Screw extension of 2-1/2 inch for added height when needed.

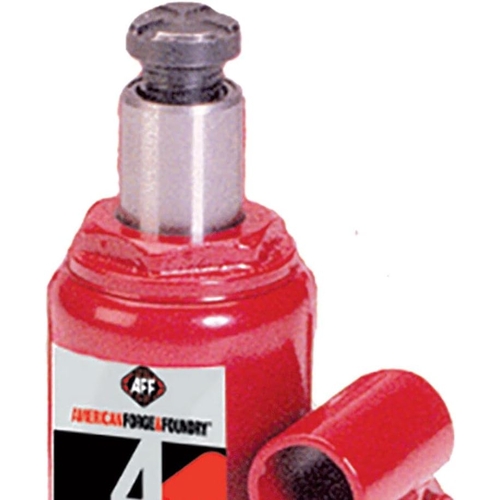

- Machine hardened steel saddle resists wear and improves contact surface reliability.
- Centered pumps and ram with heat-treated piston maintain balance and ease of use.
- Specifications:
- Manufacturer: American Forge & Foundry
- Part Number: 3504
- Product Type: Bottle Jack
- Capacity: 4 Ton
- Low Height: 6-1/2 inch
- High Height: 13-1/4 inch
- Lift Stroke: 4-1/4 inch
- Screw Extension: 2-1/2 inch

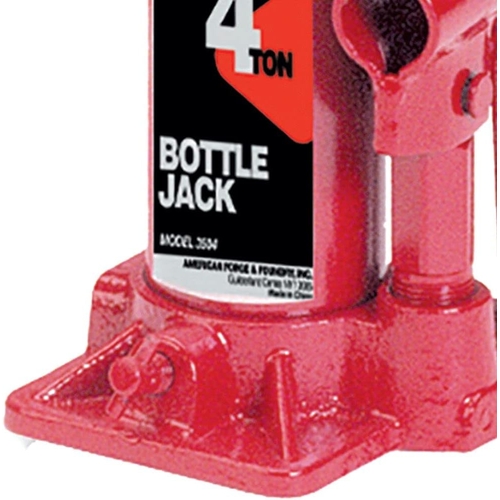

- Base Size: 4-1/2 inch x 4-inch
- Quantity: Single unit
- The American Forge & Foundry 3504 Bottle Jack, Heavy Duty, 4 Ton Capacity, Manual Centered Pump & Ram can also be referred to as AFF 3504 4 Ton bottle jack, AFF centered ram jack 4 Ton, American Forge heavy duty bottle jack model 3504, AFF steel saddle bottle jack, AFF manual hydraulic jack 3504.
American Forge & Foundry builds the 3504 Bottle Jack for dependable performance in industrial and shop environments. Its low-height base, centered pump design, and hardened saddle deliver strength and balance for lifting heavy loads safely.
Q: What is the minimum lift height on this jack?
A: The minimum height is 6-1/2 inch when fully retracted.
Q: How high can the jack lift including the screw extension?
A: It can lift up to 13-1/4 inch at full height including the screw extension.
Q: Is the saddle hardened and are the pump and ram centered?
A: Yes. The saddle is machine hardened steel, and the pump & ram are centered with a heat-treated piston to ensure balance and ease of positioning.
