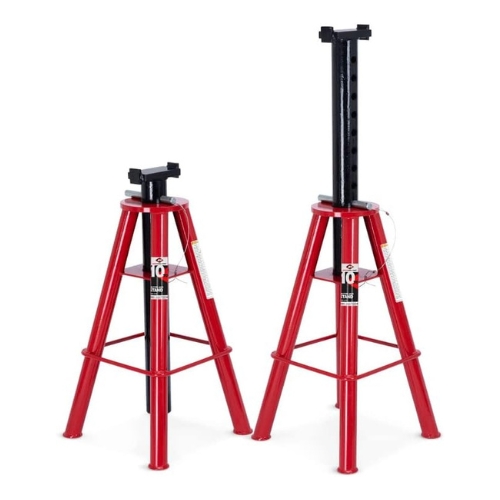

AFF 3310B 10-Ton Steel Pin-Style Jack Stand Set, Heavy-Duty Base, 28-to-47-inch Height Range
- The AFF 3310B is a pair of heavy-duty pin-style jack stands made of steel, rated for 10 tons. Designed for trucks, trailers, and other large equipment, it offers secure support with multiple locking pin positions and an extra-large saddle for frame contact.
- Features:

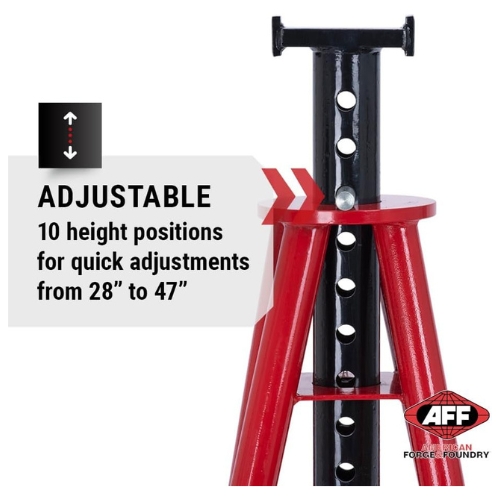

- Pin-style locking system with multiple holes for height adjustment ensures secure height settings.

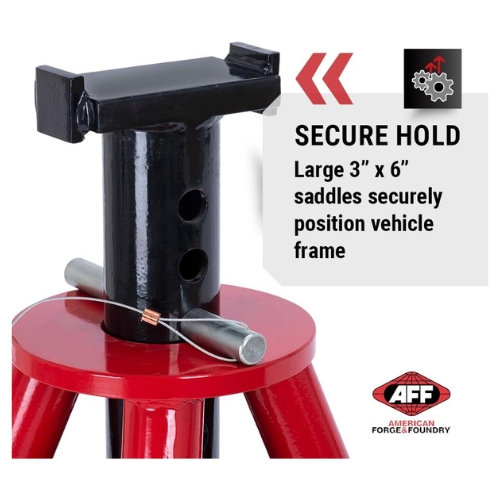

- Extra-large support saddle with locating lugs to properly position under vehicle frame.

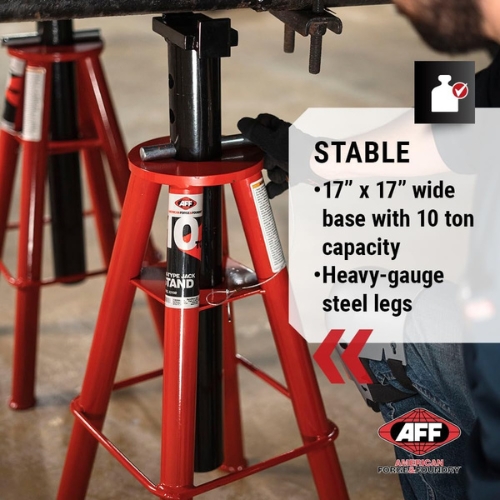

- Wide steel base to provide stability and resist tipping or sinking under load.
- Locking pin tethered to stand so it cannot be lost during use.

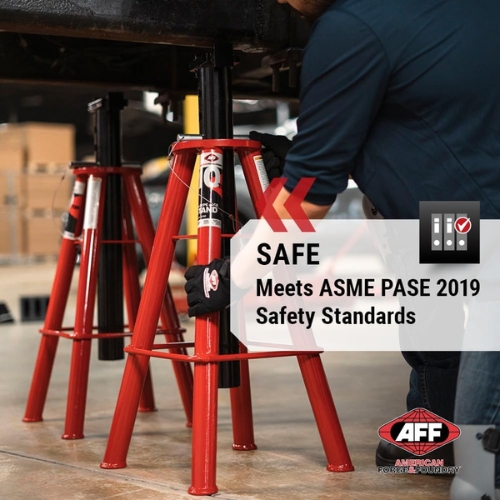

- Conforms to or exceeds ASME PASE 2019 safety standards.
- Sold as a matched pair for balanced and safe use of both sides of vehicle.
- Specifications:
- Manufacturer: AFF (American Forge & Foundry)
- Part Number: 3310B
- Capacity: 10 tons per pair
- Low Height: approximately 28 to 31 inches depending on source
- High Height: approximately 47 inches
- Base Dimensions: around 16 x 16 inches
- Saddle Size: approximately 2 7/8 x 5 1/8 inches (extra-large saddle dimension) according to one distributor

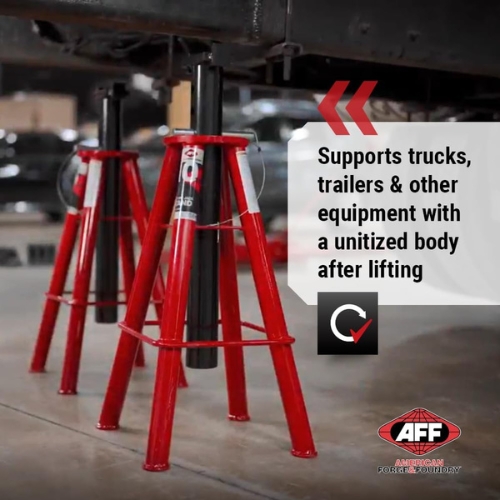

- System Compatibility/Application: Designed for heavy trucks, buses, fleet vehicles, trailers; to be used in pairs under frame rails or chassis for safe, stable support during maintenance
- The AFF 3310B Jack Stand Set may also be called 10-Ton Pin-Style Truck Stands, Tall Profile Jack Stands, Heavy-Duty Base Jack Stand Pair, Frame Support Jack Stands, or Truck Equipment Jack Stands Set.
AFF’s 3310B jack stands deliver dependable framing and support for large vehicle work by combining a tall height range, steel construction, and robust locking pin safety. Ideal for professional shops where elevation and stability are critical.
Q: What is the lowest and highest height setting?
A: The stands adjust from about 28-31 inches at their lowest pin position up to about 47 inches at their highest, across roughly ten pin positions.
Q: Are these stands sold individually or as a pair?
A: They are sold and shipped in a matched pair for safe, balanced support of vehicles.
Q: What kind of vehicles are these best for?
A: Best suited for heavy trucks, trailers, buses, or equipment with long wheelbases and high ground clearance where tall, stable support is required.
