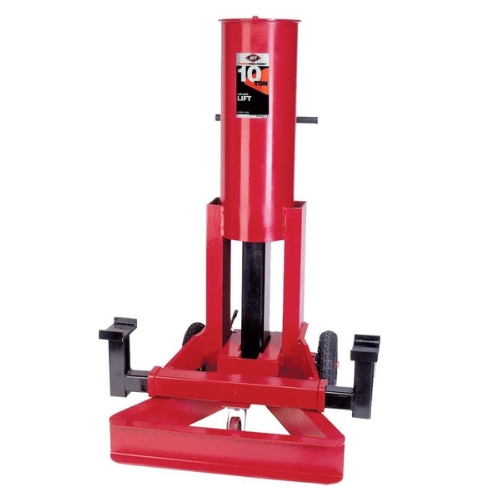

AFF 3598 Air-End Lift, Heavy-Duty Steel, 10-Ton Capacity, Adjustable Saddles 36-50 inches
- The AFF 3598 Air-End Lift is a professional-grade heavy-duty steel lifting jack designed for trucks, buses, and industrial or agricultural equipment. It provides a 10-ton lifting capacity at 200 PSI and features adjustable saddles, reversible arms, and automatic safety locks to ensure secure lifting in demanding shop environments.
- Features:
- 10-ton lifting capacity at 200 PSI for reliable performance on heavy-duty vehicles and equipment.
- Heavy-duty steel frame with wide base for strength and stability.
- Adjustable saddles (4 x 6 inches) with a width range of 36 to 50 inches for versatility across vehicle types.
- Reversible saddle arms allow positioning for both low and high clearance lifting.
- Automatic mechanical safety lock engages at five lift positions from 17.5 to 50 inches.
- Three-way air valve provides smooth raising, holding, and lowering control.
- Dual air inlets: standard shop air fitting and Schrader valve for added flexibility.
- Mobility supported by pneumatic rear tires and a front swivel caster for easy shop movement.
- Specifications:
- Manufacturer: AFF (American Forge & Foundry)
- Part Number: 3598
- Material: Steel
- Capacity: 10 tons (20,000 lbs) at 200 PSI
- Pad Height (Minimum): 12.5 inches
- Maximum Lift Height: 50 inches
- Lift Lock Positions: 5, from 17.5 to 50 inches
- Base Length: 39 inches
- Base Width: 36 inches
- Overall Height: 67 inches
- Saddle Dimensions: 4 x 6 inches, adjustable 36-50 inches wide
- System Compatibility/Application: Designed for lifting front or rear ends of heavy-duty trucks, buses, and equipment in professional service shops
- The AFF 3598 Air-End Lift may also be called a 10-Ton Steel Air Bumper Jack, Wide-Base Truck End Lift, or Heavy-Duty Air-Operated Vehicle Jack.
The AFF 3598 Air-End Lift combines durable steel construction, wide adjustable saddles, and a secure locking system for professional heavy-duty lifting. Its versatility, safety, and mobility make it an essential tool for fleet maintenance and commercial vehicle service shops.
Q: What is the minimum pad height for the AFF 3598?
A: The pad lowers to approximately 12.5 inches, allowing it to fit under trucks and buses with low clearance.
Q: How wide can the saddles be adjusted?
A: The saddles adjust between 36 and 50 inches to fit a variety of truck and bus frames.
Q: What safety mechanism does this jack include?
A: It features an automatic mechanical safety lock with five height positions between 17.5 and 50 inches to secure the load during service.
