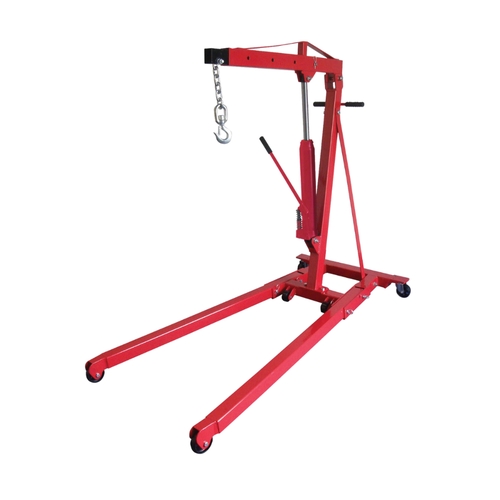

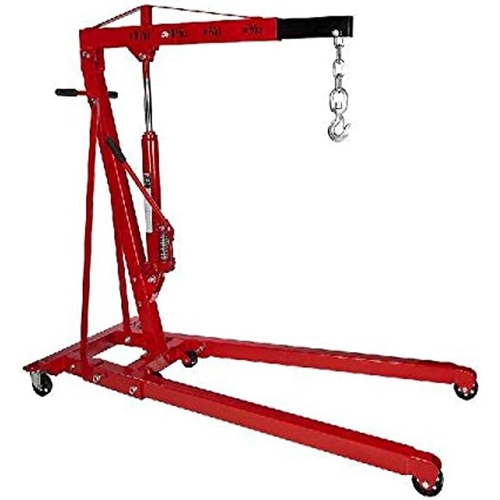

Sunex Tools 5218 Foldable Engine Hoist, 1.5-Ton Capacity
- The Sunex Tools 5218 Foldable Engine Hoist is designed to lift, position, and transport engines or heavy loads in automotive shops, with a foldable frame that reduces storage footprint.
- Features:
- 1.5-ton (3,000 lb) rated capacity in lowest boom position, with multiple boom positions lower capacities safely.

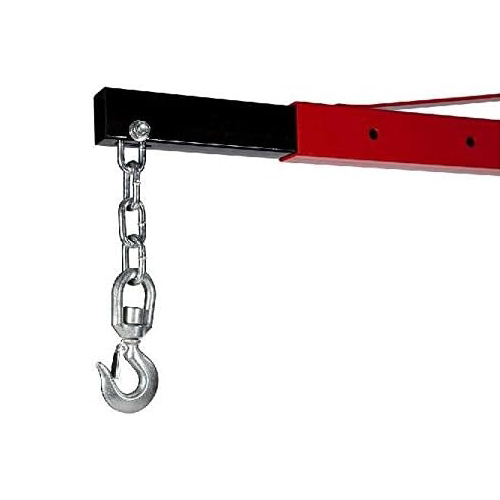

- Four boom positions allow reaching extensions of 48-inch, 41.5-inch, 34-inch, and 27-inch from ram base depending on load.
- Max boom height at full extension ~96.5-inches; minimum boom heights range down to 0-inch in certain positions.

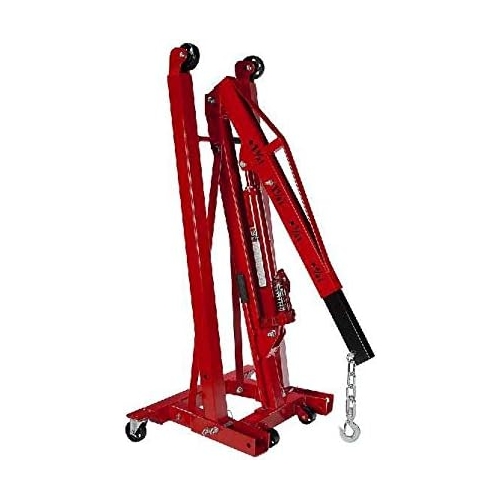

- Base widens to ~35.5-inch front, ~34-inch back when open; folds down to ~24-inch front width for compact storage.
- Low-depth folded profile (~21.5-inch depth) helps store the hoist in tight spaces.
- Complies with ASME PASE/2014 safety standard for portable automotive service equipment.
- Specifications:
- Manufacturer: Sunex Tools
- Part Number: 5218
- Hoist Type: Foldable engine hoist / crane
- Rated Capacity: 1.5 ton (3,000 lb) in lowest boom position
- Boom Extensions: 48-inch, 41.5-inch, 34-inch, 27-inch from ram base
- Boom Heights: ~96.5-inch max to ~0-inch lowest, varying by position
- Base Dimensions (Open): ~69.5-inch length x ~35.5-inch front width x ~34-inch rear width
- Folded Dimensions: ~24-inch front width x ~34-inch rear width x ~21.5-inch depth
- The Sunex Tools 5218 Foldable Engine Hoist can also be called Sunex 5218 fold-up engine crane, 1.5-ton shop hoist, Sunex folding engine lift, or Sunex 5218 crane foldable.
The Sunex Tools 5218 provides heavy-duty lifting with compact storage thanks to its foldable design, enabling full 1.5-ton capacity, selectable boom reach, and a safety certified build for everyday shop use.
Q: What are the boom extension lengths?
A: Boom extensions go to approximately 48-inch, 41.5-inch, 34-inch, and 27-inch from the ram base depending on which boom position is used.
Q: What safety standard does this hoist meet?
A: It meets ASME PASE/2014 safety standard for portable automotive service equipment.
Q: How compact is it when folded for storage?
A: When folded, the hoist’s front width reduces to about 24-inches, rear width about 34-inches, and depth ~21.5-inches, making it much easier to store in shop corners or compact tool rooms.
