American Forge & Foundry 3180A Transmission Jack, Heavy Duty, 4,400 lb Capacity, Low Profile Manual Hydraulic

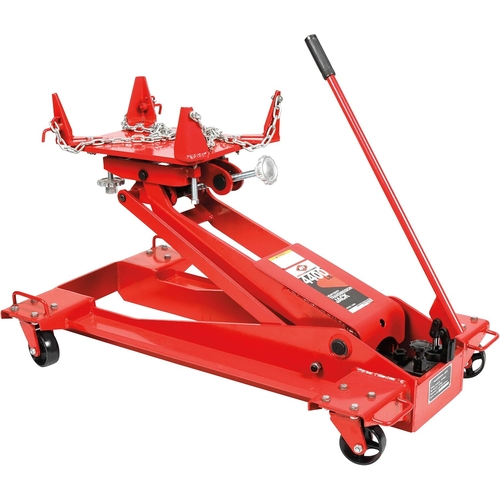

- American Forge & Foundry 3180A Transmission Jack is a floor-style manual hydraulic unit with 4,400 lb lifting capacity. Its low profile design with 8-1/2 inch minimum height and 34 inch maximum height allows access under heavy duty vehicles for transmission, differential, and transfer case service.
- Features:

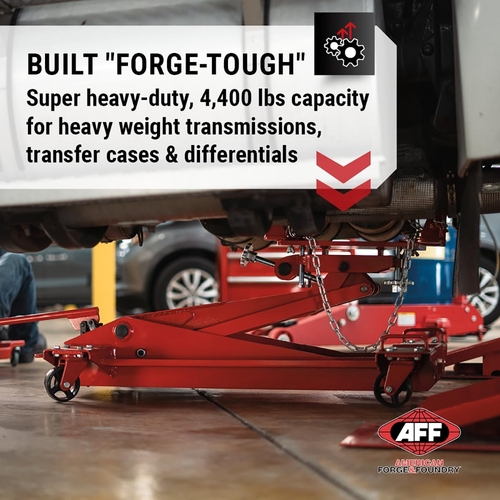

- 4,400 lb capacity supports large truck, bus, and equipment transmissions safely.
- Low profile range of 8-1/2 inch to 34 inch provides access under low-clearance vehicles.

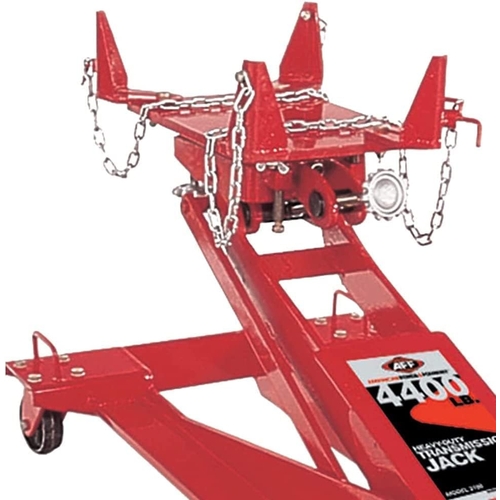

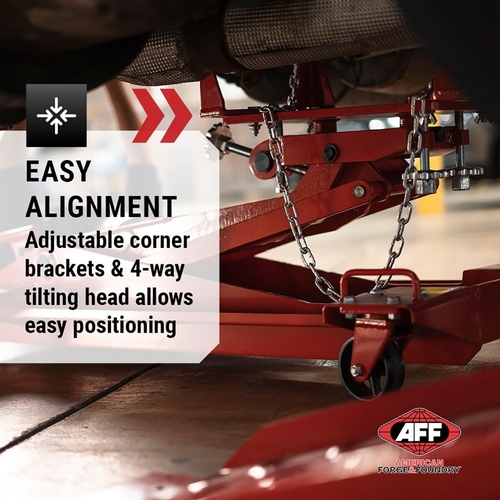

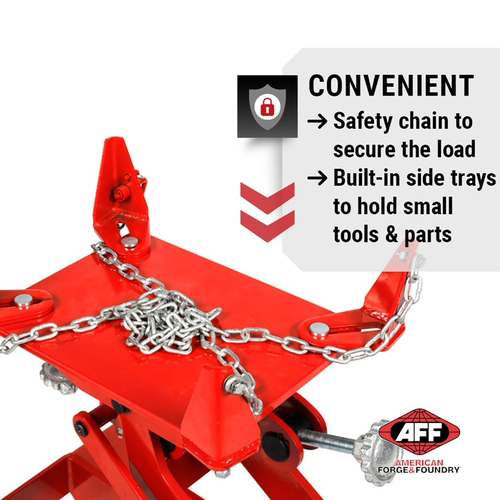

- Fully adjustable tilt saddle with corner brackets ensures secure alignment during removal or installation.

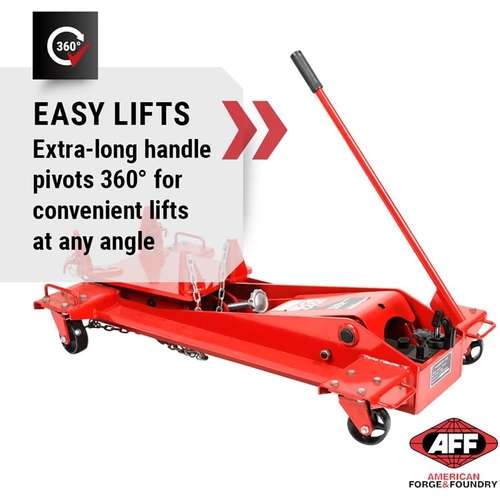

- 32 inch pump handle pivots 360 degrees for convenient operation from multiple positions.

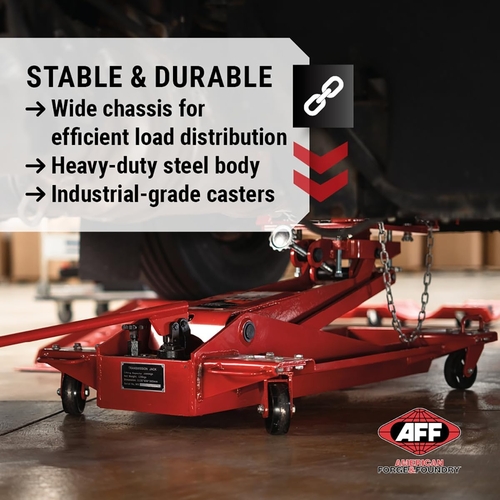

- Industrial-grade 4 inch casters and wide base enhance stability and mobility.
- Built-in safety overload bypass prevents hydraulic damage from excess load.
- Specifications:
- Manufacturer: American Forge & Foundry
- Part Number: 3180A
- Product Type: Transmission Jack
- Capacity: 4,400 lb
- Min Height: 8-1/2 inch
- Max Height: 34 inch
- Tilt Forward: 15 degrees
- Tilt Rear: 30 degrees
- Tilt Sides (Left / Right): 12 degrees
- Head Width: 12 to 18 inch
- Head Length: 16 to 20 inch
- Base Width: 28 inch
- Overall Length: 43 inch
- Quantity: Single jack assembly
- The American Forge & Foundry 3180A Transmission Jack, Heavy Duty, 4,400 lb Capacity, Low Profile Manual Hydraulic can also be referred to as AFF 3180A transmission jack, AFF 4,400 lb heavy duty jack, AFF manual hydraulic transmission jack, AFF low profile transmission jack, American Forge & Foundry truck transmission jack.
American Forge & Foundry manufactures the 3180A Transmission Jack for heavy duty service shops and fleets, combining high lifting capacity, low profile access, and stable hydraulic control for safe and efficient transmission work.
Q: What types of components can this jack handle?
A: It is designed to lift and support transmissions, differentials, and transfer cases for trucks, buses, and heavy equipment.
Q: Can this jack be used under low-clearance vehicles?
A: Yes, with a minimum height of 8-1/2 inch it fits under low chassis vehicles and equipment where space is limited.
Q: What safety features are included?
A: The jack is equipped with a mechanical tilt saddle, wide base, caster support, and an overload bypass system to protect the hydraulic unit and operator.
