K-Tool International XD63136 Fuel Tank to Transmission Jack Adapter Kit, 40 Gallon Capacity, Universal Adapter Plate, Ground Wire, Four 3 x 5.5 Inch Foam Pads

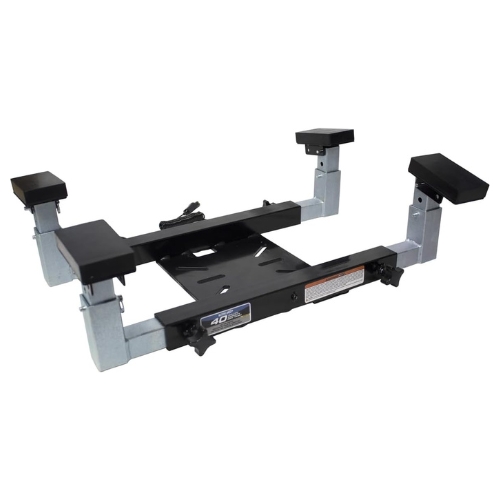

- K-Tool International XD63136 is a fuel tank to transmission jack adapter kit that mounts to underhoist transmission jack saddles to support empty fuel tanks up to 40 gallon capacity. It features adjustable length, width, and height, a universal adapter plate, and a grounding system. This is a service adapter kit for transmission jacks, not a replacement part.
- Features:
- Up to 40 gallon empty tank capacity with adjustable saddle length, width, and height to fit a wide range of tank shapes
- Four 3 x 5.5 inch foam support pads self adjust to protect the tank surface and improve stability during removal and install
- Universal adapter plate enables mounting on transmission jacks that require plate attachment, increasing shop compatibility
- Dual ground wire assemblies with clamps help reduce static discharge risk when working with older metal tanks
- Includes two 8 foot tie down straps to secure the tank to the saddle for safer handling and transport
- Complies with ASME PASE 2019 for portable automotive service equipment

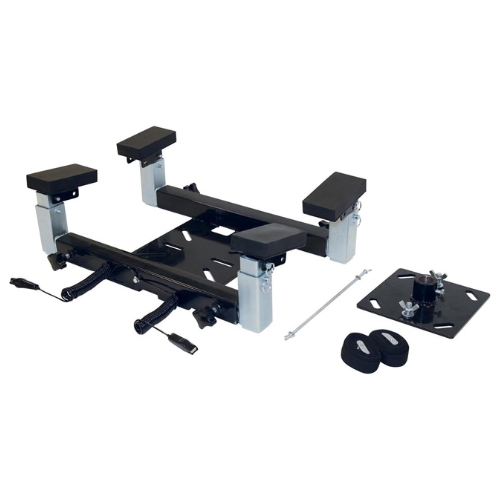

- Includes:

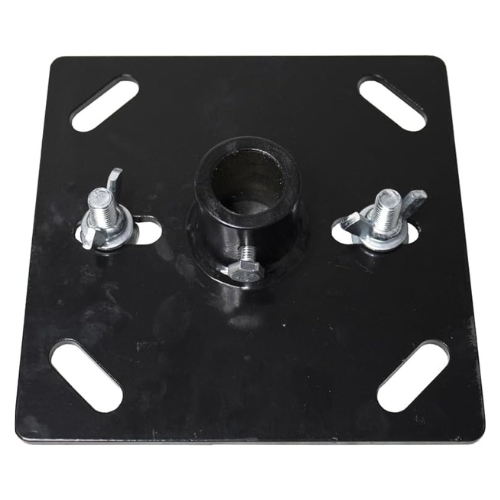

- Adapter plate (RS770403)
- Support pad assemblies, four total, 3 x 5.5 inch (RS770616)

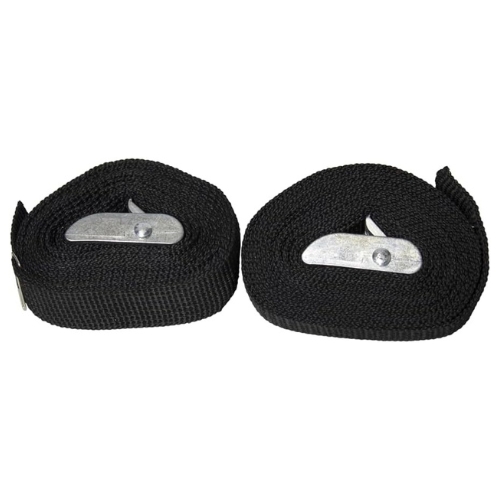

- Tie down straps, two total, 8 foot (RS770601)
- Ground wire assemblies, two total with clamps (RS770602)
- Locking knobs, four total (RS770611)
- Base assembly (quantity 1)
- Arm assemblies, four total
- Height adjustment tubes, four total
- Detent pins, eight total
- Lock rod, one total
- Hardware set: carriage bolts, screws, flat washers, wing nuts, and hex nut (as specified in the parts list)
- Specifications:
- Manufacturer: K-Tool International
- Part Number: XD63136
- Capacity: Up to 40 gallon empty fuel tank
- Overall Dimensions: 24-1/2 inch length x 15 inch width x 7-3/16 inch height
- Adjustment Ranges: Length 24-1/2 to 39-3/4 inch; width 15 to 19 inch; height 7-3/16 to 11 inch
- Tie Down Length: 8 foot (two straps included)
- Compliance: ASME PASE 2019
- System Compatibility / Application: Designed to mount on underhoist transmission jack saddles for handling and securing empty vehicle fuel tanks; not a replacement part
- The Fuel Tank to Transmission Jack Adapter Kit can also be referred to as fuel tank to transmission jack adapter, fuel tank saddle adapter, universal adapter plate fuel tank cradle, 40 gallon fuel tank adapter, and transmission jack fuel tank adapter kit.
K-Tool International supplies professional lifting and service equipment for automotive shops. Model XD63136 combines an adjustable saddle, protective foam pads, universal adapter plate, and grounding hardware to streamline safer removal and installation of empty fuel tanks.
Q: What transmission jacks will this fit?
A: It installs on underhoist transmission jack saddles and includes a universal adapter plate for jacks that require plate mounting.
Q: What tank size and condition are supported?
A: It is rated for empty fuel tanks up to 40 gallon capacity. Always drain and ground the tank per the manual before removal.
Q: What are the adjustment ranges?
A: The saddle adjusts to length 24-1/2 to 39-3/4 inch, width 15 to 19 inch, and height 7-3/16 to 11 inch to accommodate different tank designs.
