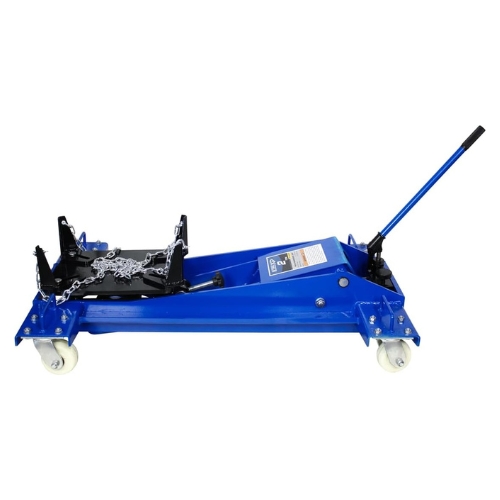

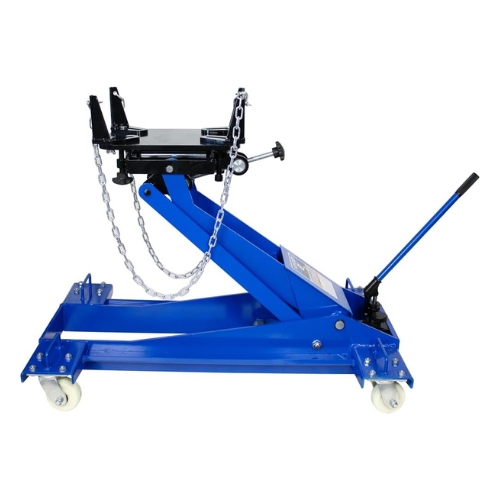

K-Tool International XD63517 Portable Hydraulic Transmission Jack, 2 Ton Capacity, Low 8.3 Inch to 37.4 Inch Lift Range, Saddle Tilt Plus or Minus 25 Degrees
- K-Tool International XD63517 portable hydraulic transmission jack positions and supports transmissions for removal and installation. It delivers 2 ton capacity with a low 8.3 inch to 37.4 inch lift range and a saddle that tilts plus or minus 25 degrees for alignment. This is a standalone jack, not a replacement part.
- Features:
- 2 ton rated capacity provides the strength required for passenger vehicle and light truck transmission service while maintaining maneuverability
- Low 8.3 inch to 37.4 inch lift range helps reach under vehicles and raise components to working height for safer positioning

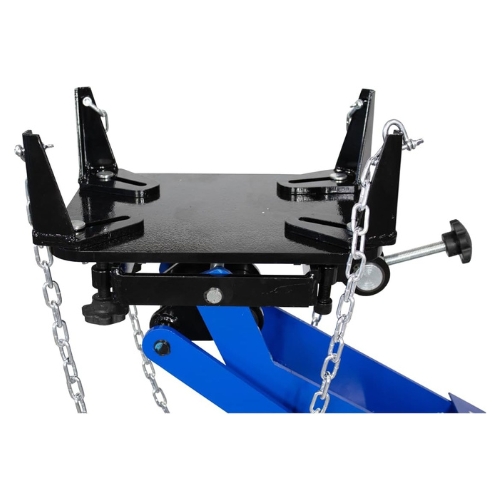

- Saddle tilt plus or minus 25 degrees aids precise alignment during removal and installation to reduce rework
- Large lifting head 16.14 inch x 20.87 inch offers broad support for varied transmission housings

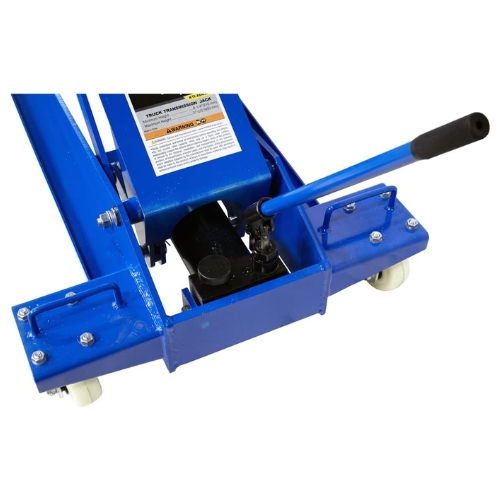

- Built in by pass system helps prevent ram over extension to protect the hydraulic circuit
- Meets or exceeds ASME PASE 2019 for professional service use; not a vehicle specific replacement part
- Specifications:
- Manufacturer: K-Tool International
- Part Number: XD63517
- Capacity: 2 ton, 4,000 pounds
- Lift Range: 8.3 inch low to 37.4 inch high
- Saddle Tilt: Plus or minus 25 degrees
- Max Lifting Head Size: 16.14 inch x 20.87 inch
- Chassis Dimensions: 43.5 inch length x 26 inch width
- Compliance: Meets or exceeds ASME PASE 2019
- Safety: Built in by pass system to prevent ram over extension
- Quantity: 1 jack
- System Compatibility / Application: Transmission handling and positioning in automotive service bays; not a replacement part
- The Portable Hydraulic Transmission Jack can also be referred to as 2 ton transmission jack, low profile transmission jack, underhoist transmission jack, automotive transmission jack, and high lift transmission jack.
K-Tool International supplies professional shop equipment and tools for automotive service environments. Model XD63517 combines a wide tilt saddle, large lifting head, and compliant hydraulic design to support accurate alignment and dependable transmission handling.
Q: What is the lift range of this jack?
A: The lift range is 8.3 inch low to 37.4 inch high, allowing access under the vehicle and precise positioning during installation.
Q: How much can the saddle tilt for alignment?
A: The saddle tilts plus or minus 25 degrees to help match transmission and engine angles during removal and installation.
Q: What is the size of the lifting head?
A: The maximum lifting head size is 16.14 inch by 20.87 inch, providing broad support for common transmission housings.
