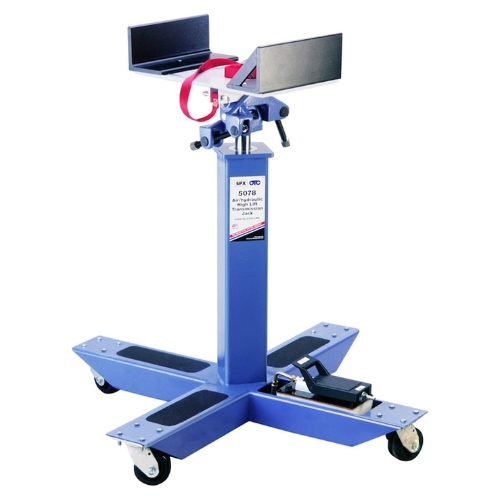

OTC 5078 Air-Assisted High-Lift Transmission Jack, 2000 lbs Capacity, Steel Tubular Frame with Allison Adapter
- The OTC 5078 Air-Assisted High-Lift Transmission Jack is built to handle transmissions up to 2,000 pounds, providing smooth, controlled lifting for truck and bus service. It combines pneumatic operation with durable steel construction for professional workshop use.
- Features:
- Air-assisted lift system minimizes manual effort and offers metered, precise control
- Low-profile design with a 41-1/2 inch collapsed height for easy access under vehicle frames
- Heavy-wall steel tubular construction and wide stance for maximum stability
- Includes dedicated Allison 500/600 automatic transmission adapter for popular applications
- Built-in safety bypass prevents overload during operation
- Specifications:
- Manufacturer: OTC (Bosch Automotive Service Solutions)
- Part Number: 5078
- Load Capacity: 2,000 lbs (at 100-140 psi air input)
- Minimum Height: 41-1/2 inches
- Maximum Height: 65 inches
- Material: Heavy-wall steel tubing
- Application: Designed for installation and removal of transmissions in trucks and buses, including Allison 500/600 series units
OTC, under Bosch Automotive Service Solutions, engineered the 5078 transmission jack to deliver strength, stability, and precision for heavy-duty drivetrain service. The air-assisted lift system and included adapter simplify transmission handling while maintaining operator safety and efficiency.
Q: What is the lifting capacity?
A: The OTC 5078 supports loads up to 2,000 lbs using air-assisted operation.
Q: What is the minimum collapsed height?
A: The jack’s low-profile design provides a minimum collapsed height of 41-1/2 inches, suitable for under-frame clearance.
Q: Does it include a transmission adapter?
A: Yes - the jack includes a dedicated adapter for Allison 500/600 automatic transmissions.
