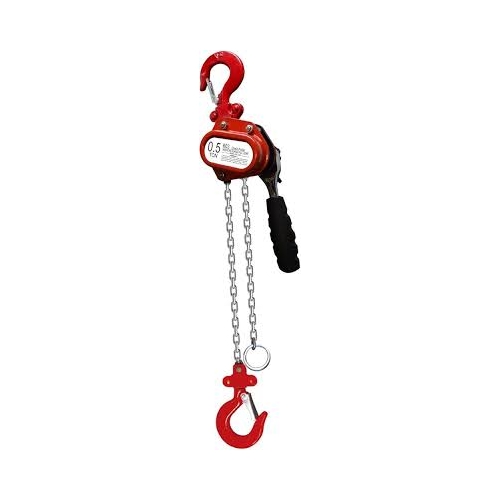

American Power Pull 405 Chain Block Hoist, 1/2-Ton Capacity, 10-Foot Lift, 1/4-Inch Chain
- American Power Pull 405 is a manual chain block hoist rated at 1/2 ton for lifting and positioning loads in shops and field work. It provides a standard 10-foot lift with a 1/4-inch load chain, a triple-geared drive, and drop-forged safety hooks for secure, controlled operation.
- Features:
- 1/2-ton rated capacity supports common automotive, farm, and industrial lifting tasks
- Standard 10-foot lift and 1/4-inch load chain offer versatile reach for overhead work
- Triple-geared mechanism with thick, heat-treated steel construction for durability
- Drop-forged safety hooks help maintain secure connections during lifts
- Minimum pulling effort approximately 52 lb improves efficiency under load
- Standalone hoist, not a replacement part; intended for complete lifting operations
- Specifications:
- Manufacturer: American Power Pull
- Part Number: 405 (also referenced as 405)
- Product Type / Function: Manual chain block hoist
- Rated Capacity: 1/2 ton
- Standard Lift: 10 feet
- Load Chain Diameter: 1/4 inch
- Distance Between Hooks: approximately 10-13/16 inches
- Minimum Pull to Lift Rated Load: approximately 52 lb
- Construction: thick steel housing; heat-treated components; triple-geared
- System Compatibility / Application: For lifting and positioning loads within rated capacity in automotive, industrial, farm, and marine environments
- The chain block hoist can also be referred to as 1/2-ton chain hoist, manual chain block, 10-foot lift hoist, 1/4-inch chain hoist, and triple-geared chain block.
American Power Pull manufactures manual hoists, cable pullers, and accessories for lifting, pulling, and positioning tasks across construction, industrial, farm, and maintenance applications.
Q: What are the lift and chain size on 405?
A: It provides a standard 10-foot lift using a 1/4-inch load chain.
Q: What effort is required at the hand chain?
A: Minimum pulling effort is approximately 52 lb to raise the rated load, per published specifications.
Q: Is the hoist suitable for general shop and field use?
A: Yes. The triple-geared, heat-treated steel construction with drop-forged safety hooks is intended for automotive, industrial, farm, and marine applications within the rated capacity.
