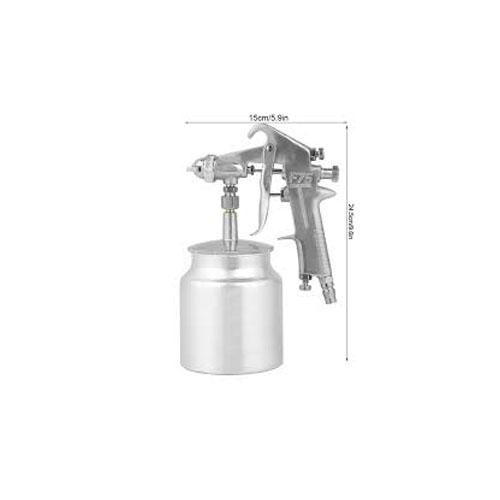

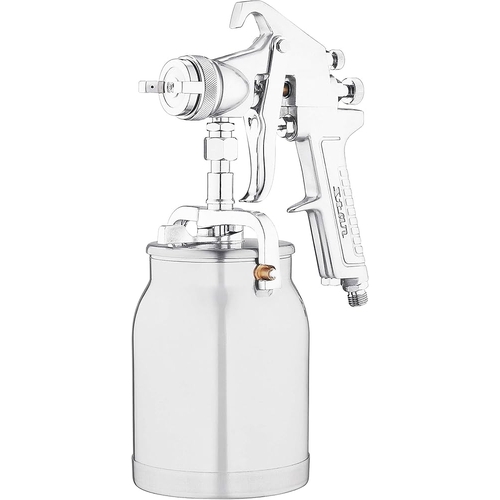

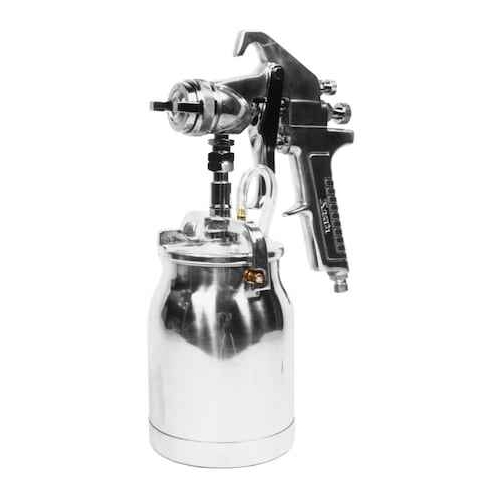

Astro Pneumatic AS8S Spray Gun with Cup, Silver Handle, 1.7 mm Nozzle, Siphon Feed, 1 Quart Dripless Cup
- Astro Pneumatic AS8S is a siphon-feed spray gun with a 1.7 mm nozzle and a 1 quart dripless cup for general-purpose refinishing. It features a stainless steel needle and fluid tip, an exclusive air-valve design, and an adjustable wide fan pattern for clean, controlled coverage with common shop compressors.
- Features:
- Stainless steel needle and fluid tip resist corrosion for longer service life and consistent flow
- Two-piece body with exclusive air-valve design supports smooth trigger modulation and spray control
- Fully adjustable wide fan pattern helps dial in coverage and finish quality across panels
- 1 quart dripless cup reduces refills and helps minimize mess during extended jobs
- Operates at 50-60 psi with 7-12 cfm air consumption for compatibility with typical 3 hp shop compressors
- General-purpose spray tool for automotive and industrial coatings; not a replacement part
- Specifications:
- Manufacturer: Astro Pneumatic Tool Company
- Part Number: AS8S
- Feed Type: Siphon
- Nozzle Size: 1.7 mm
- Cup Capacity: 1 quart (946 mL), dripless
- Operating Pressure: 50 to 60 psi
- Average Air Consumption: 7 to 12 cfm
- Air Inlet Thread: 1/4 inch NPT
- Fluid Inlet Thread: 3/8 inch NPT
- Required Compressor: 3 hp
- Maximum Fan Pattern: 11 inches at 8 inches distance (280 mm)
- Dimensions (W x H): 6-1/2 inches x 12 inches
- Wet Parts Material: Stainless steel needle and fluid tip
- System Compatibility / Application: General-purpose paint spraying on automotive and industrial surfaces; use with compatible compressor and 1/4 inch NPT air line; not a replacement part
- The Astro Pneumatic AS8S spray gun can also be referred to as siphon feed spray gun, 1.7 mm nozzle spray gun, automotive spray gun with cup, paint spray gun 1 quart, and silver handle spray gun.
Astro Pneumatic Tool Company designs and supplies professional air tools and automotive service equipment, offering practical solutions for body shops and industrial users across sanding, spraying, fastening, and general repair applications.
Q: What air supply do I need to run the AS8S?
A: Use a compressor capable of at least 3 hp that can deliver 7 to 12 cfm at 50 to 60 psi, with a 1/4 inch NPT air inlet connection.
Q: What is the fan pattern size at typical working distance?
A: Approximately 11 inches at 8 inches distance, allowing broad coverage on panels while maintaining control.
Q: Are the wet parts corrosion resistant?
A: Yes. The needle and fluid tip are stainless steel to help resist corrosion and wear.
