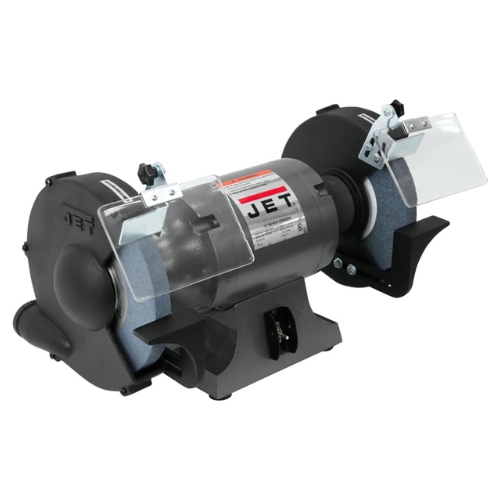

Jet 577103 JBG-10A Bench Grinder, Cast Iron, 1-1/2 HP Motor, 10 inch Wheels, 1725 RPM
- The Jet 577103 JBG-10A Bench Grinder is a shop-grade 10-inch grinder powered by a 1-1/2 horsepower motor delivering 1,725 rpm. Its cast-iron build, fine and coarse vitrified grinding wheels, and safety features make it ideal for metal sharpening, trimming, and tool maintenance.
- Features:

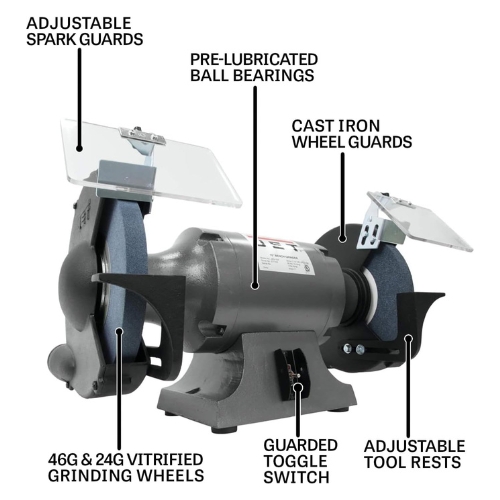

- Cast iron wheel guards with dust vents for safe and clean operation

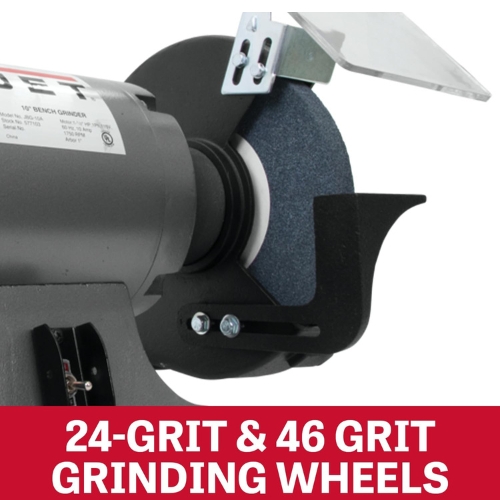

- Fine and coarse 24/46 grit vitrified wheels included for coarse grinding and finishing
- Totally enclosed, pre-lubricated ball bearings for long life and quieter use
- Adjustable tool rests and quick-adjust spark guards for precision and safety

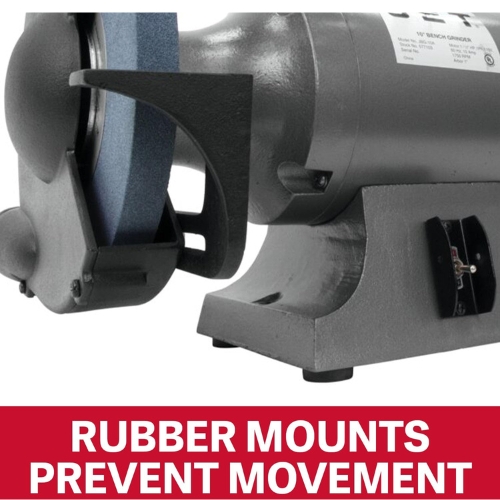

- Rubber feet or mounts to reduce vibration during operation
- Specifications:
- Manufacturer: Jet
- Part Number: 577103 JBG-10A
- Material: Cast Iron
- Motor: 1-1/2 HP, 115 V, 1 Phase
- Wheel Diameter x Width: 10 inch x 1 inch
- Wheel Speed: 1,725 RPM
- Wheel Grits: 24 / 46 grit
- Shaft / Arbor Size: 1 inch
- Overall Dimensions (L x W x H): 25 x 16 x 15 inch
- System Compatibility / Application: Designed for shop bench grinding, tool sharpening, deburring and metal finishing
- Also known as Jet JBG-10A 10-inch Bench Grinder, Jet 577103 Shop Bench Grinder, Jet Industrial Bench Grinder 10-inch
The Jet 577103 JBG-10A Bench Grinder is engineered for heavy workshop use with its rugged cast-iron construction, included coarse and fine wheels, and solid 1-1/2 HP motor. Great for sharpening, shaping, and smoothing metal tools and parts.
Q: What wheel sizes and grits are included?
A: It includes two 10-inch x 1-inch grinding wheels, one coarse (24 grit) and one medium/fine (46 grit).
Q: What is the motor power and speed?
A: The grinder is powered by a 1-1/2 HP motor, 115 V single-phase, running at approximately 1,725 RPM.
Q: What safety and convenience features does it have?
A: It includes adjustable tool rests, quick-adjust spark guards, eye shields, and enclosed bearings to enhance safety and reduce maintenance.
