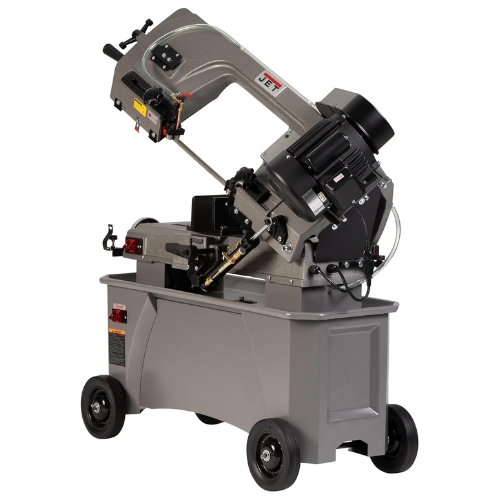

Jet 414559 HVBS-712 Horizontal Vertical Metalworking Bandsaw, Steel, 7" x 12" Capacity, 3/4 HP
- The Jet 414559 HVBS-712 7 x 12 Metalworking Bandsaw is a heavy-duty steel cutting saw that operates in both horizontal and vertical positions. It features a 3/4 HP motor, multiple blade speeds, and a swivel vise, making it ideal for precise cutting in fabrication and shop environments.

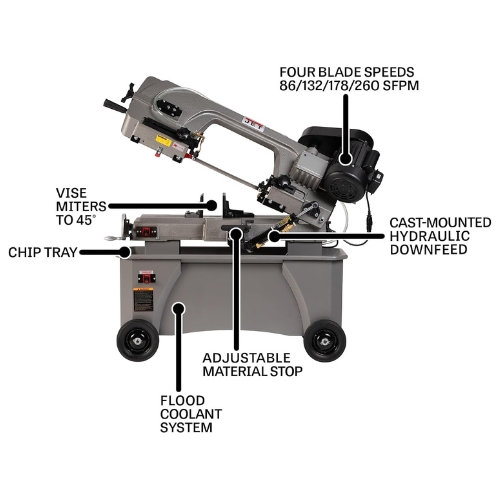

- Features:
- Four blade speeds (86, 132, 178, and 260 SFPM) for cutting a wide range of materials.

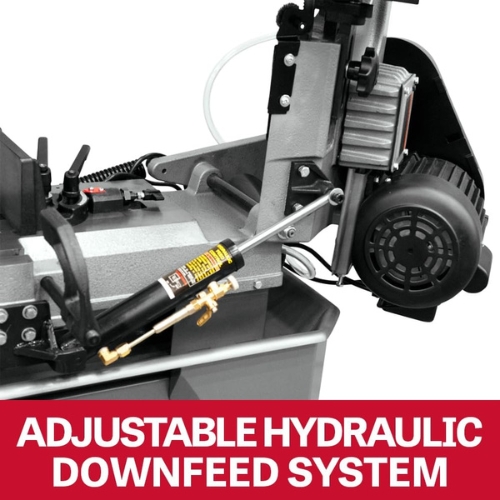

- Hydraulic downfeed control provides consistent and accurate cutting pressure.

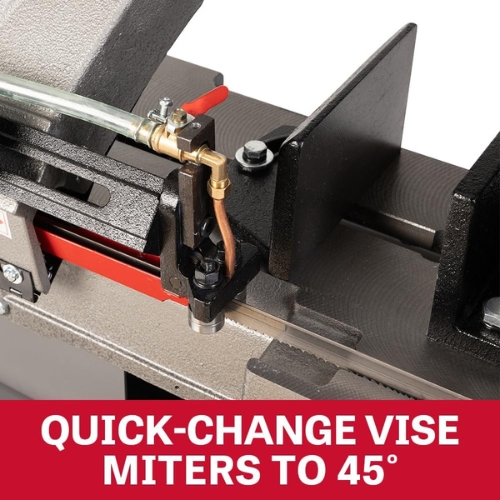

- Swivel vise allows up to 45-degree angled cuts for mitering applications.

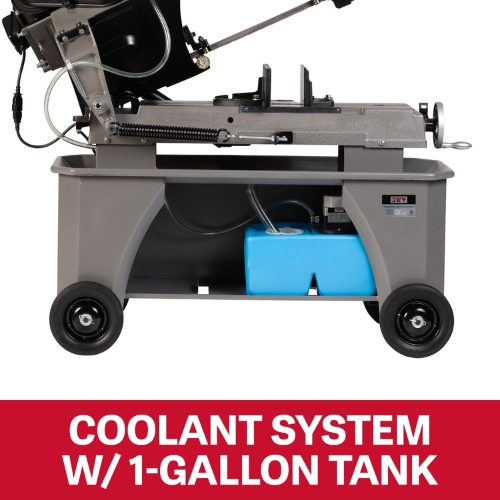

- Built-in coolant system extends blade life and ensures clean cuts.

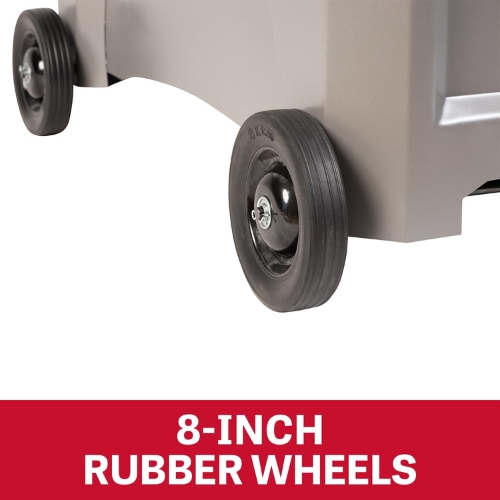

- Mounted on a wheeled steel stand with storage cabinet and chip tray for mobility and convenience.
- Specifications:
- Manufacturer: Jet Tools
- Part Number: 414559 (Model HVBS-712)
- Material: Steel frame, cast iron blade wheels
- Motor: 3/4 HP, 115/230 Volt, single phase
- Cutting Capacity (Round at 90degrees): 7 inch
- Cutting Capacity (Round at 45degrees): 5 inch
- Cutting Capacity (Rectangular at 90degrees): 7 inch x 12 inch
- Blade Speeds: 86, 132, 178, 260 SFPM
- Blade Wheel Diameter: 11-3/4 inch
- Blade Size: 3/4 inch x 0.025 inch x 93 inch
- Coolant Tank Capacity: 1 gallon
- Vise Swivel Range: Up to 45 degrees
- Overall Dimensions: 48 inch x 17 inch x 40 inch
- System Compatibility/Application: Designed for metalworking shops, fabrication tasks, and maintenance facilities requiring both horizontal and vertical cutting
- The Jet 414559 is also known as the HVBS-712 Horizontal Vertical Metal Bandsaw or Jet 7 x 12 Metalworking Bandsaw.
The Jet 414559 HVBS-712 provides rugged construction, variable blade speeds, and hydraulic control for dependable performance. With its built-in coolant system and swivel vise, it delivers accurate results for general fabrication and precision metal cutting applications.
Q: What are the available blade speeds?
A: This bandsaw operates at four blade speeds: 86, 132, 178, and 260 SFPM.
Q: Can it cut angles?
A: Yes, the vise swivels up to 45 degrees to allow for accurate miter cuts.
Q: Does the saw include a cooling system?
A: Yes, it has a built-in coolant system with a 1-gallon tank to prolong blade life and improve cut quality.
