Mastercool 72485-PRC Universal Hydraulic Flaring Tool Set with GM Transmission Cooling Line Dies and Mini Tube Cutter
- This Mastercool 72485-PRC kit is a universal hydraulic flaring tool set that fabricates push-connect, double flare, ISO bubble, GM fuel line, brake line, and GM transmission cooling line flares from 3/16 inch to 1/2 inch (4.75 mm to 10 mm). It includes a mini tube cutter.
- Features:

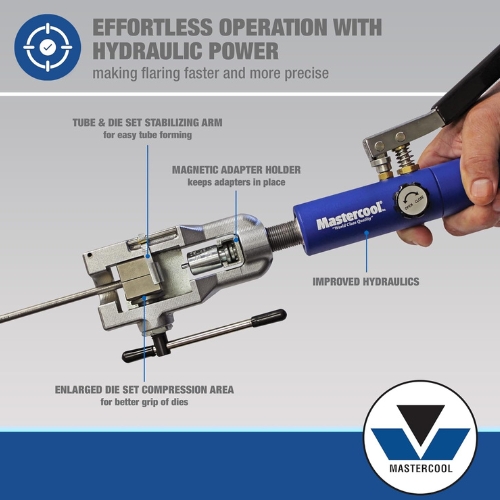

- Hydra-Flare yoke and pump assembly with enlarged die set compression area ensures strong grip on dies for consistent flares
- Tube and die set stabilizing arm aids in precise tube alignment during flare formation
- Magnetic adapter holder secures adapters and dies in place for faster tool changes
- Capable of working on annealed stainless steel, terne plate steel, soft aluminum, and soft copper tubing
- Custom molded storage box protects and organizes components

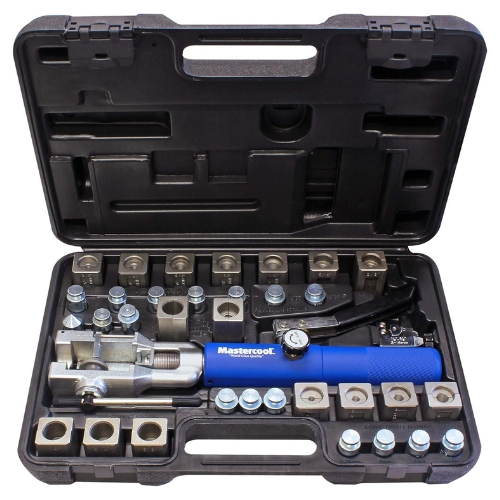

- Includes:
- Hydra-Flare yoke & pump assembly (71202)
- 45degrees flaring cone adapter (71097-01)
- Push-connect adapters: 1/4" (71204), 5/16" (71205), 3/8" (71206)
- Push-connect die sets: 1/4" (71214), 5/316" (71215), 3/8" (71216)
- GM fuel line adapters: 5/16" (71405), 3/8" (71406)
- GM fuel line die sets: 5/16" (71415), 3/8" (71416)
- 45degrees & double flare adapters: 3/16" (71097-03), 1/4" (71097-04), 5/16" (71097-05), 3/8" (71097-06), 1/2" (71097-08)
- 45degrees & double flare die sets: 3/16" (71097-13), 1/4" (71097-14), 5/16" (71097-15), 3/8" (71097-16), 1/2" (71097-18)
- Metric bubble flare adapters: 4.75 mm (71475-4M), 6 mm (71475-6M), 8 mm (71475-8M), 10 mm (71475-10M)
- Metric bubble flare die sets: 4.75 mm (71475-14M), 6 mm (71475-16M), 8 mm (71475-18M), 10 mm (71475-110M)
- GM transmission cooling line adapters: 3/8" (71099-06), 1/2" (71099-08)
- GM transmission cooling line die sets: 3/8" (71099-16), 1/2" (71099-18)
- Mini tube cutter (Mastercool 70027) for 1/8 inch to 5/8 inch outer diameter tubing
- Specifications:
- Manufacturer: Mastercool
- Part Number: 72485-PRC
- Flare Range: 3/16 inch to 1/2 inch and 4.75 mm to 10 mm
- Supported Flare Types: Push-connect, 45degrees single and double flare, ISO bubble, GM fuel line, brake line, GM transmission cooling line
- Materials: Annealed stainless steel, terne plate steel, soft aluminum, soft copper tubing
- Application / Compatibility: Use for automotive fuel, brake, transmission cooling, hydraulic tube systems requiring precise flares
- The Mastercool 72485-PRC Universal Hydraulic Flaring Tool Set can also be referred to as Mastercool hydraulic flaring tool kit 72485, Mastercool 72485 kit with GM transmission dies, hydraulic flaring tool set with mini cutter, and Mastercool Hydra-Flare 72485-PRC.
Mastercool designs professional tube forming and flaring tools. The 72485-PRC kit combines hydraulic power with comprehensive adapters and dies to serve multiple tubing standards in one package.
Q: Does this kit support GM transmission cooling line flaring?
A: Yes. It includes dedicated adapters and die sets for GM transmission cooling line flares in 3/8 inch and 1/2 inch sizes.
Q: Can I flare metric tubing with this set?
A: Yes. The kit includes metric bubble flare adapters and dies for 4.75 mm, 6 mm, 8 mm, and 10 mm tubing.
Q: What range of tubing diameters does the mini tube cutter handle?
A: The included mini tube cutter works with tubing outer diameters from 1/8 inch to 5/8 inch.
