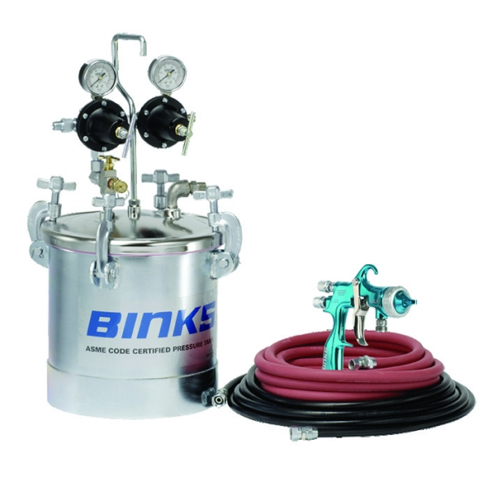

Binks 98-3156 Trophy HVLP Pressure Feed 2.8 Gallon Tank Outfit Kit, 1.4 mm Fluid Nozzle
- The Binks 98-3156 is a pressure feed spray outfit that includes a Trophy HVLP spray gun and a 2.8 gallon ASME rated pressure pot with dual regulators. It is intended for solvent based coatings and built for industrial finishing applications.
- Features:
- Dual regulator setup on the pressure pot allows independent control of fluid and air pressure
- 1.4 mm fluid nozzle standard on Trophy gun suited for light to medium viscosity materials
- Includes 25 ft fluid and 25 ft air hose for extended reach in production environments
- Zinc plated pressure pot provides corrosion resistance for industrial use
- Air inlet feathering control on the gun allows precise spray start and stop
- Includes:

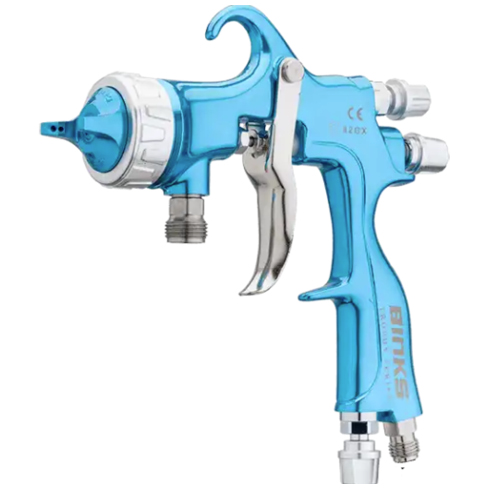

- Trophy HVLP pressure feed spray gun, 1.4 mm (model 2465-14HV-32S0)
- 83C-220 pressure pot, 2.8 gallon, dual regulators
- 71-3383 fluid hose, 1/4 inch x 25 ft
- 71-31101 air hose, 3/8 inch x 25 ft
- 71-1203 air hose, 5/16 inch x 15 ft
- Specifications:
- Manufacturer: Binks (Finishing Brands)
- Part Number: 98-3156
- Tank Capacity: 2.8 gallons (zinc plated)
- Nozzle Size: 1.4 mm (standard)
- Hoses Included: 25 ft fluid hose (1/4 inch), 25 ft air hose (3/8 inch), 15 ft air hose (5/16 inch)
- System Compatibility / Application: Pressure feed HVLP outfit designed for solvent based coating application in industrial and finish shop settings
- The Binks 98-3156 is also referred to as Binks 2.8 gallon pressure pot outfit, Binks 98-3156 HVLP gun and tank set, Binks 98-3156 finishing outfit, and Trophy HVLP pressure feed outfit.
Binks, part of Finishing Brands, manufactures high performance spray finishing equipment used in industrial coating applications.
Q: What type of materials can this outfit spray?
A: It is designed for solvent based coatings, including primers, enamels, urethanes, and industrial finishes.
Q: What is the advantage of dual regulators?
A: Dual regulators allow independent control of air pressure at the gun and pot pressure, offering better adjustment and performance.
Q: Can I change the nozzle size?
A: Yes. The Trophy series supports interchangeable fluid nozzles and needles to cover various coating viscosities and spray patterns.
