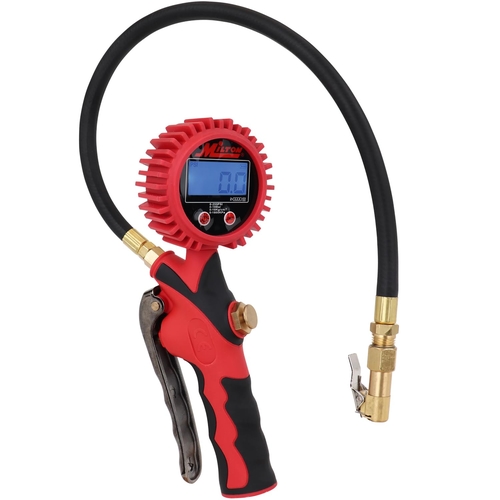

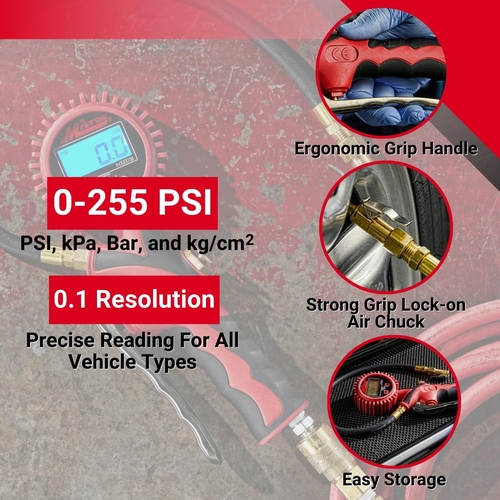

Milton 568 Digital Tire Inflator Gauge, Heavy-Duty Pistol-Grip with 20" Hose
- The Milton 568 Digital Tire Inflator Gauge is a heavy-duty, pistol-grip tool with 360-degree swivel digital display, offering 0-255 PSI range and multi-unit measurement for accurate tire pressure inflation and diagnostics.

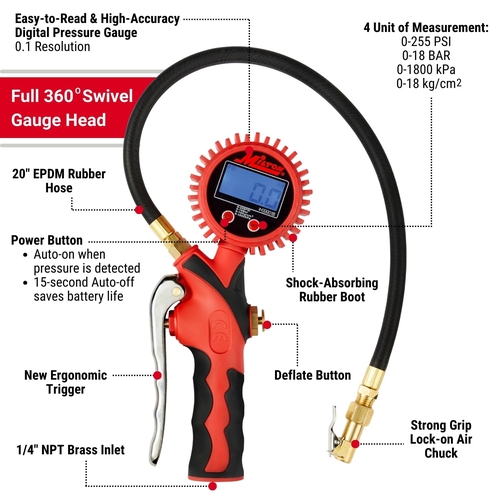

- Features:

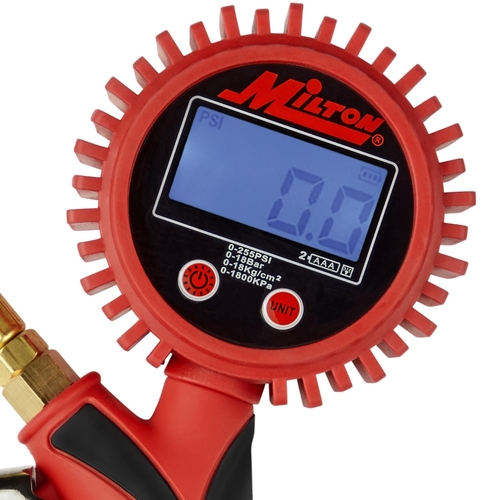

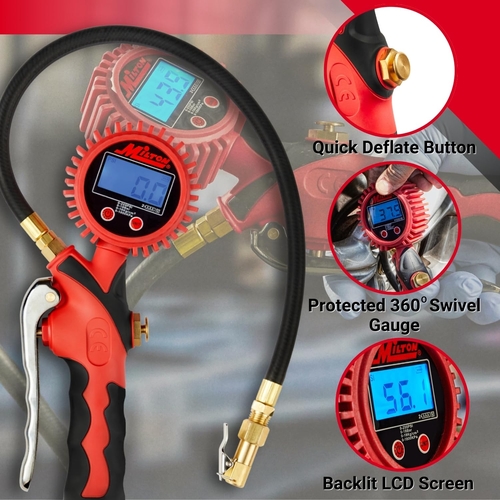

- 360-degree swivel digital display with protective rubber boot - ensures easy pressure readings from any angle and protects the gauge in tool storage.

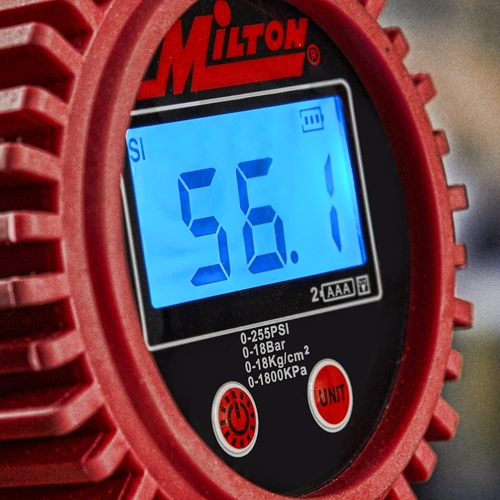

- Backlit readout with auto-on/auto-off (15 seconds) - ideal for low-light environments and preserves battery life.

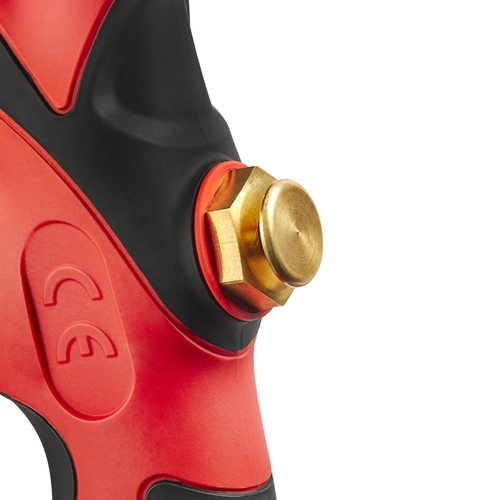

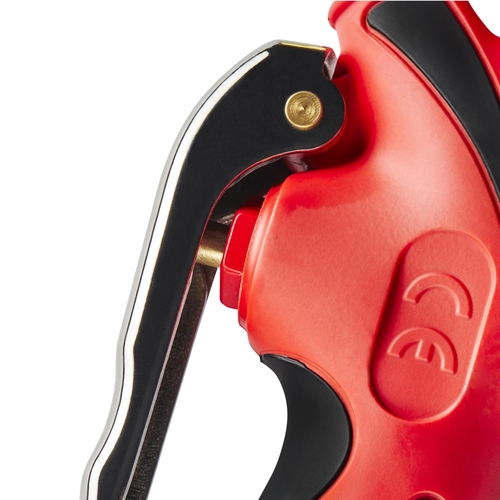

- Combination inflate/deflate trigger plus push-button deflation - allows precise one-handed pressure control.
- Durable 20-inch rubber hose (300 PSI rating) with lock-on brass air chuck - supports one-handed inflation convenience.
- Specifications:
- Manufacturer: Milton Industries
- Part Number: S-568
- Pressure Range: 0 to 255 PSI; resolution: 0.1 PSI
- Units of Measure: PSI, kPa (up to 1800), kg/cm² (up to 18), Bar (up to 18)
- Air Inlet: 1/4 NPT female
- Hose: 20 inches, rubber, 300 PSI-rated, 1/4 inch ID elastic with brass fittings
- Power Source: 2 AAA batteries (included)
- Handle Material: Reinforced molded nylon with thermoplastic elastomer
- This inflator gauge may also be referred to as digital tire pressure gauge, swiveling inflator handle, heavy-duty pneumatic gauge, lock-on chuck inflator, and pistol-grip digital tire tool.
Milton Industries is a recognized leader in professional pneumatic tools and accessories, delivering rugged, accurate solutions tailored for automotive and industrial maintenance applications.
Q: How do I read tire pressure in bright or low-light conditions?
A: The backlit display automatically turns on when pressure is detected and turns off after 15 seconds, offering clear visibility across lighting conditions.
Q: Can I both inflate and deflate tires with this tool?
A: Yes-the integrated combination trigger allows inflation by full-pull, while a built-in push-button deflation feature enables precise pressure reduction.
Q: What hose and chuck setup does it include?
A: It comes with a 20-inch, 300 PSI rated rubber hose (1/4 inch ID) and a lock-on brass air chuck for easy, hands-free inflation.
