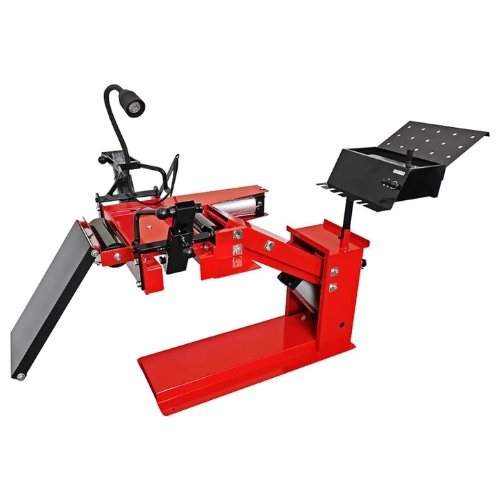

TMR JK068 Air Operated Elevating Tire Spreader, 26 Inch Max Elevating Height, Adjustable Arms and Rollers, Pressure Gauge and Regulator
- TMR JK068 Air Operated Elevating Tire Spreader is a pneumatic elevating stand that spreads tire beads and raises the work height for inspection and repair. With 26 inch maximum elevating height, adjustable arms and rollers, and an integrated pressure gauge and regulator, it supports safe, ergonomic tire service from passenger to heavy truck casings.
- Features:
- 26 inch max elevating height positions the casing at a comfortable working level to reduce strain and improve access.
- Adjustable clamping arms and tire rollers stabilize the casing and improve visibility of the inner liner during repair.
- Heavy duty pneumatic cylinder uses shop air for smooth lifting with minimal manual effort.
- Pressure gauge and regulator assembly helps set and monitor supply pressure for consistent operation.
- Adjustable work light and movable tool rack keep the repair area illuminated and organized.
- Air outlet for air tool connection streamlines buffing, cleaning, and patching steps.
- Specifications:
- Manufacturer: TMR
- Part Number: JK068
- Product Type / Function: Air operated elevating tire spreader for inspection and repair
- Working Height Range: Up to 26 inch maximum elevating height
- Adjustment: Adjustable in 5 stages; maximum enlargement approximately 350 mm
- Air Supply: Rated working pressure 0.6 MPa, approximately 87 psi; includes pressure gauge and regulator
- Work Aids: Adjustable light; movable tool rack; air outlet for air tool connection
- System Compatibility / Application: For passenger, small truck, and large truck tires; not a vehicle replacement part
- Alternate Part Numbers / Cross References: TMRJK068; PBJK068-ISN
- Packaging Type: Single unit
- The Air Operated Elevating Tire Spreader can also be referred to as pneumatic tire spreader, elevating tire spreader, truck tire bead spreader, tire repair spreader stand, and air powered tire spreader.
TMR manufactures professional tire service equipment and shop tools specified for inspection, repair, and installation tasks across passenger and commercial applications.
Q: What air pressure is recommended for the JK068?
A: The rated working pressure is 0.6 MPa, approximately 87 psi. Use the built-in regulator and gauge to set supply pressure.
Q: What tire sizes can it handle?
A: The adjustable arms, rollers, and elevating table are described for passenger, small truck, and large truck tires. Always secure the casing and follow the adjustment limits in the instructions.
Q: Does the unit include lighting and tool storage?
A: Yes. It features an adjustable work light and a movable tool rack to improve visibility and workflow at the repair area.
