ESAB 1-4000-1 Cutmaster 40 Plasma Cutter Package, SL60 1Torch, Dual-Voltage 110-240 V Input, 12-mm Pierce
- The ESAB 1-4000-1 Cutmaster 40 Package includes the Cutmaster 40 plasma power source and SL60 1Torch. It delivers a 40 amp plasma cutting system with automatic voltage detection, designed for cutting mild steel up to 12 mm and severing up to 25 mm; suitable for fabrication, maintenance, HVAC and repair workshop use.
- Features:
- Amperage range of 15-40 A with automatic input voltage detection from 110-240 V, single phase.
- Duty cycle ratings: 30 A at 60 %; 20 A at 100 %; 40 A at 40 %.
- SL60 1Torch with quick disconnect ATC connection; uses Cutmaster Black Series electrode offering up to 60 % longer consumable life.
- Pierce / cut capacity: up to 12 mm (1/2 inch) recommended; maximum sever rating up to 25 mm (1 inch).

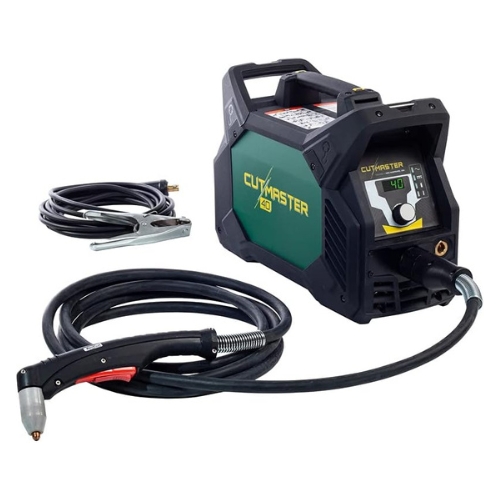

- Includes:

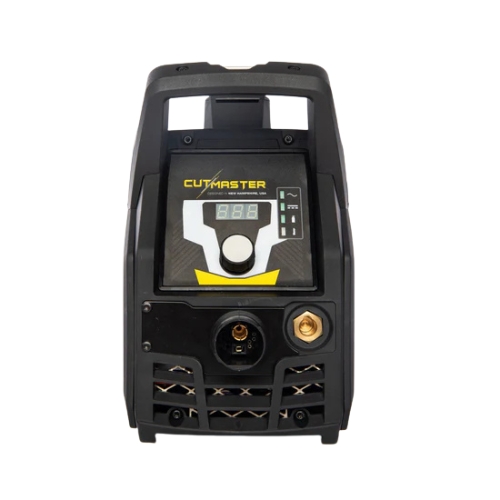

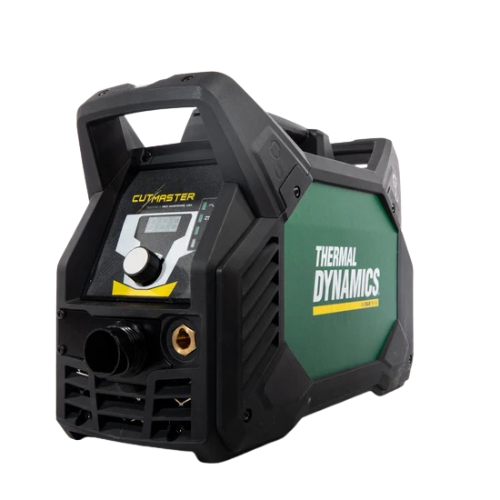

- Cutmaster 40 plasma cutter power unit
- 16-foot SL60 1Torch
- Work lead with ground clamp
- Spare parts / consumable kit
- Input adapters for power cords (e.g., 50 A to 20 A and 20 A to 15 A plugs)
- ¼-inch NPT air fitting with quick-connect
- Operator’s manual
- Specifications:
- Manufacturer: ESAB (Firepower branded)
- Part Number: 1-4000-1
- Amperage Output: 15-40 A
- Input Voltage: 110-240 V AC, single phase, 50/60 Hz
- Duty Cycle: 40 % at 40 A; 60 % at 30 A; 100 % at 20 A

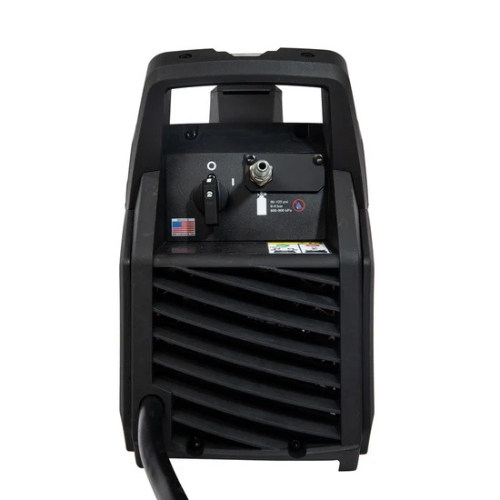

- Compressed Air Requirements: Pressure 6.2-8.6 bar (90-125 psi), Flow 80 l/min (170 cfh)
- Pierce / Cut Capacity (Recommended): up to 12 mm (1/2 inch); Maximum Sever: up to 25 mm (1 inch)
- Operating Temperature Range: 0-50 degreesC (32-122 degreesF)
- System Compatibility / Application: Plasma arc cutting for mild steel; suitable for field or shop use in repair, fabrication, maintenance, HVAC; requires compressed air supply.
- Also known as Cutmaster 40 with SL60 1Torch package, ESAB TD Cutmaster-40 SL60 kit, Firepower Cutmaster 40 plasma cutter set, Cutmaster-40 1Torch outfit

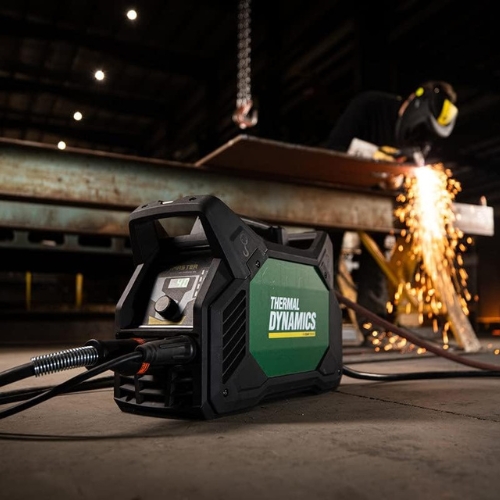

The ESAB 1-4000-1 Cutmaster 40 Package delivers portable and robust plasma cutting performance with a full SL60 torch, auto voltage detection, and high capacity cutting. Ideal for job sites, fabrication shops, maintenance, and HVAC tasks where reliability and efficiency are critical.
Q: What is the recommended pierce or cut thickness for this unit?
A: It is recommended to pierce or cut up to 12 mm (1/2 inch) mild steel, and sever up to 25 mm (1 inch) under optimal conditions.
Q: What are the duty cycle values at different amps?
A: At 20 A the duty cycle is 100 %; at 30 A it is 60 %; at 40 A it is 40 %.
Q: What air requirements does the unit need?
A: Compressed air supply at 6.2-8.6 bar (90-125 psi) with minimum flow of about 80 l/min (170 cfh) is required.
