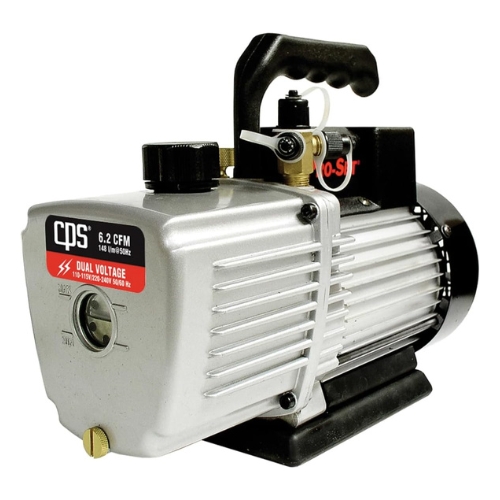

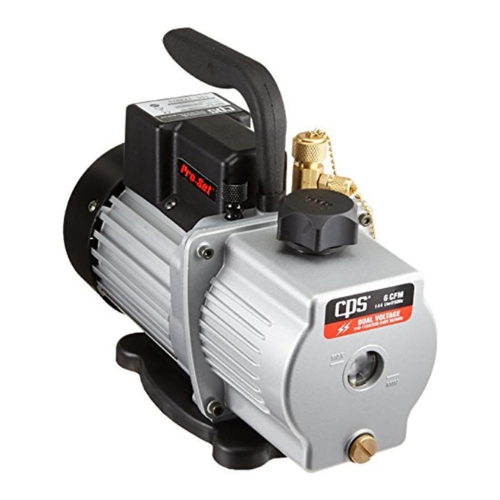

CPS Products VP6D Vacuum Pump, Steel / Aluminum, 6 CFM Two-Stage Dual Voltage
- The CPS Products VP6D Vacuum Pump is a steel / aluminum two-stage pump offering 6 CFM free-air displacement. It runs on dual voltage (110-120V or 220-240V, 50/60 Hz), delivers deep vacuum down to about 10 microns, includes a gas-ballast valve, and has multiple intake fitting options (1/4", 3/8" SAE and 1/2" ACME).
- Features:
- Two-stage motor delivers faster evacuation and deeper vacuum than single-stage models.
- Dual voltage operation allows use in various regions or with different electrical supplies.
- Gas ballast valve helps purge moisture and improve vacuum performance under load.
- Large oil sight glass and accessible oil fill/drain ports for easy maintenance.
- Intake fittings: 1/4-in SAE, 3/8-in SAE and 1/2-in ACME for compatibility with many hoses and systems.
- Specifications:
- Manufacturer: CPS Products
- Model / SKU: VP6D
- Material: Steel / Aluminum
- Power: 110-120V or 220-240V, 50/60 Hz
- Motor Size: 1/2 HP
- Free Air Displacement: 6 CFM @ 60 Hz (? 144 l/min @ 50 Hz)
- Ultimate Vacuum: ~10 microns
- Dimensions: 13.1 x 5.5 x 10 inches
- Oil Capacity: 14 oz / 400 ml
- Intake Fittings: 1/4-in SAE, 3/8-in SAE, 1/2-in ACME
- System/Application: HVAC / Refrigeration vacuum evacuation for system maintenance, repair, and charging
- The CPS VP6D may also be called Pro-Set 6 CFM vacuum pump, VP6D dual voltage pump, two-stage vacuum pump 6 CFM, refrigerant system vacuum pump by CPS, and CPS Products VP6D model.
The CPS VP6D Steel / Aluminum Vacuum Pump gives technicians reliable deep vacuum, flexible voltage compatibility, and robust build-ideal for demanding HVAC / refrigeration work.
Q: What is the ultimate vacuum of the VP6D?
A: It can pull down to approximately 10 microns vacuum.
Q: Which voltages will the VP6D accept?
A: It operates on either 110-120V or 220-240V, 50/60 Hz.
Q: What capacity and displacement does it have?
A: 6 CFM displacement at 60 Hz (?144 l/min at 50 Hz), with oil capacity around 14 oz / 400 ml.
