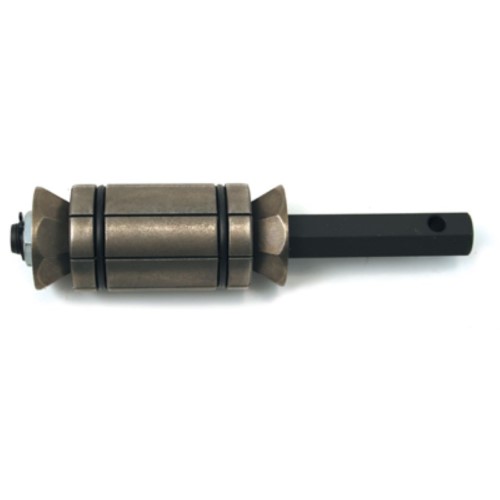

CTA 2624 Tailpipe Expander Large
- This heavy-duty expander is designed to flare and expand large tailpipes, straighten dents, and restore pipe diameter without damaging material—ideal for exhaust repair at body shops and service centers.
- Features:
- Expands within a range of 2-1/8″ to 3-1/2″ (54–89 mm) internal diameter
- Segmented expanding head with hex-shaft actuator for controlled gradual expansion
- Heavy-duty alloy steel construction for durability and long service life
- Manual operation via wrench for precise application and minimal over-expansion
- Specifications:
- Manufacturer: CTA
- Part Number: 2624
- Tool Type: Tailpipe expander, large
- Expansion Range: 2-1/8″ to 3-1/2″ (54 to 89 mm) I.D.
- Material: Alloy steel
- Dimensions: approx. 12.5 × 4.25 × 2.25 inches
- Country of Origin: Taiwan
- The Tailpipe Expander Large can also be referred to as CTA pipe expander 2624, CTA 54-89 mm expander, CTA exhaust expander large, CTA 2624 exhaust repair tool, CTA large tailpipe spreader
CTA Manufacturing (CTA Tools) is a respected producer of professional-grade specialty automotive tools since 1978. Known for precision-engineered repair equipment for collision centers, service shops, and technicians, CTA tools deliver durability, functionality, and consistent performance.
Q: What pipe sizes can CTA 2624 expand?
A: CTA 2624 works on tailpipes from 2-1/8″ to 3-1/2″ (54 – 89 mm) internal diameter, making it ideal for a wide range of exhaust tubing applications.
Q: How is the tool operated?
A: Insert the tool into the pipe, turn the hex shaft by hand until it engages, then use a wrench to rotate clockwise and expand the segments until the pipe is reshaped or straightened.
Q: What materials is the expander made from?
A: It’s constructed from heavy-duty alloy steel for maximum strength and durability in professional exhaust repair.
Q: Can it remove clamp grooves or dents?
A: Yes. It can remove clamp grooves, straighten dents, and restore roundness to pipes without damaging the surface.
