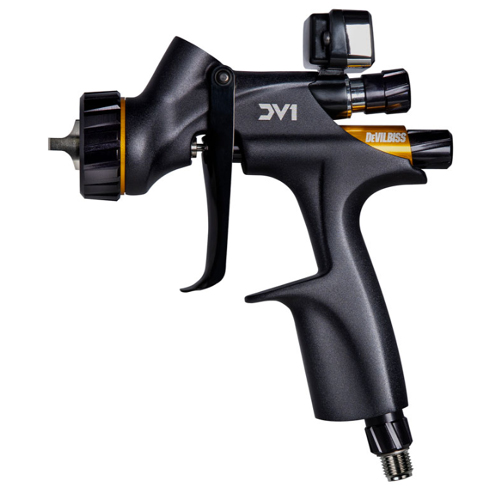

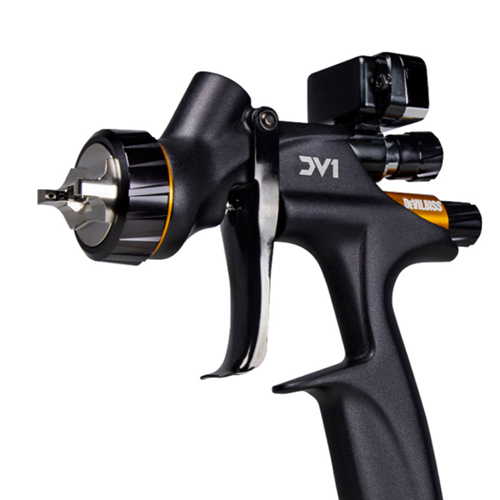

DeVilbiss 704520 DV1 Clearcoat HVLP Spray Gun, Digital with 1.2 mm, 1.3 mm, 1.4 mm Tips
- The DeVilbiss 704520 DV1 Clearcoat Spray Gun is engineered for high-efficiency clearcoat application, featuring integrated digital pressure monitoring, advanced C1 PLUS air cap technology, and multiple tip options for superior finishes.
- Features:
- C1 PLUS clearcoat air cap delivers consistent atomization for glasslike finishes
- Optional C2 PLUS cap available for extended coverage on larger surfaces
- Includes three stainless steel fluid tips (1.2 mm, 1.3 mm, 1.4 mm) for versatility across clearcoat viscosities
- Integrated digital gauge provides accurate, at-a-glance pressure monitoring
- Durable gravity-feed body with solvent-resistant anodized aluminum construction
- Includes:
- DV1 Clearcoat spray gun body
- C1 PLUS clearcoat HVLP air cap (optional C2 PLUS available separately)
- Fluid tips: 1.2 mm, 1.3 mm, 1.4 mm
- Integrated digital gauge
- DeKups cup adapter (DPC-43)
- Tool kit with valve tool, Torx driver, and tip wrench
- Specifications:
- Manufacturer: DeVilbiss
- Part Number: 704520
- Gun Type: Gravity-feed clearcoat HVLP
- Fluid Tips: 1.2 mm, 1.3 mm, 1.4 mm
- Air Caps: C1 PLUS (standard), optional C2 PLUS
- Air Inlet: standard 1/4 inch fitting
- Weight: about 470 g (gun only)
- Dimensions: 161 × 177 × 44 mm
- Application: automotive clearcoat spraying for refinishing and repair
- The DeVilbiss 704520 DV1 Clearcoat Spray Gun can also be referred to as DV1 704520 clearcoat HVLP, DeVilbiss DV1-C1 PLUS clear gun, DV1 Clearcoat digital spray gun, DeVilbiss DV1 Clearcoat 704520, and DV1 HVLP clearcoat spray gun.
DeVilbiss designed the DV1 Clearcoat Spray Gun to deliver premium clear finishes with advanced air cap engineering, precision fluid control, and digital pressure feedback for professional refinishing environments.
Q: Which clearcoat air caps are supported?
A: The spray gun comes standard with the C1 PLUS clearcoat cap, and a C2 PLUS cap can be used for broader coverage and transfer efficiency.
Q: What fluid tips are included?
A: The kit includes 1.2 mm, 1.3 mm, and 1.4 mm fluid tips for handling a range of clearcoat products.
Q: How is the digital gauge integrated?
A: The gauge is built directly into the spray gun body, allowing operators to monitor pressure at eye level while spraying.
