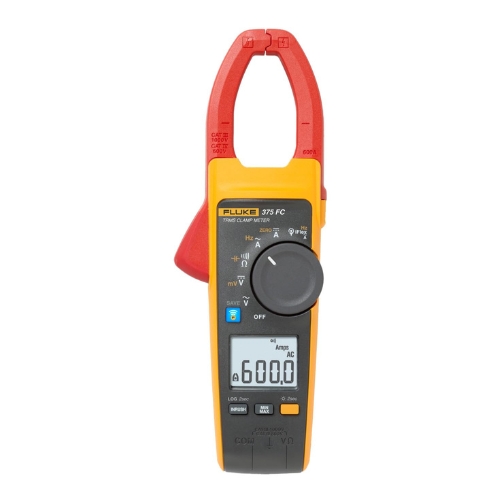

Fluke 375 FC True-RMS AC DC Clamp Meter, Measures AC DC Current to 600 A, AC DC Voltage to 1000 V, CAT III 1000 V, CAT IV 600 V Safety

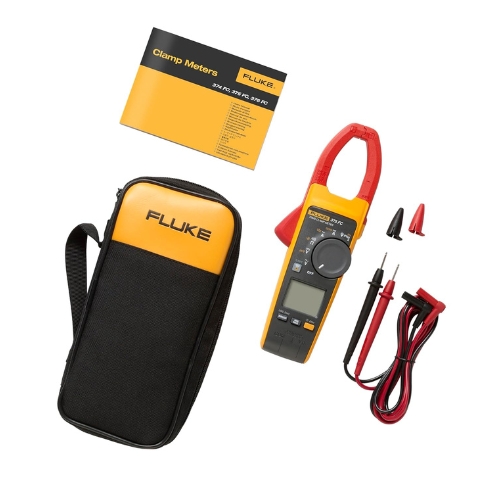

- The Fluke 375 FC True-RMS AC DC Clamp Meter is a plastic-cased tester designed for professional electrical diagnostics. It measures AC and DC current up to 600 amps and AC and DC voltage up to 1000 volts. It features True-RMS accuracy, a low-pass filter for variable frequency drives, wireless connectivity through Fluke Connect, and comes with batteries, test leads, and a soft carrying case.
- Features:
- True-RMS sensing for accurate readings on non-linear loads.
- Low-pass filter for stable motor drive and VFD measurements.

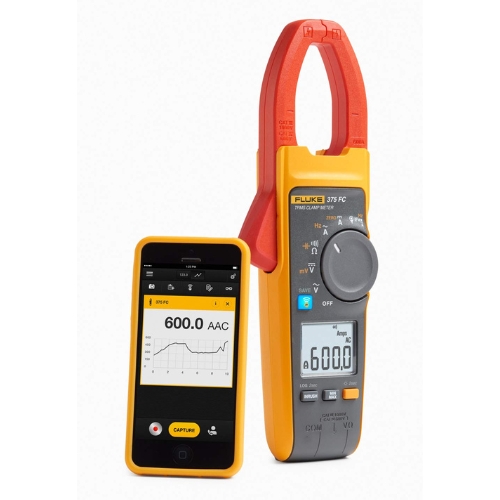

- Wireless data transfer with Fluke Connect smartphone app.
- Multiple modes including Min/Max/Average, inrush capture, resistance, capacitance, frequency, and continuity.
- Specifications:
- Manufacturer: Fluke Corporation
- Model / SKU: 375 FC
- Material: Plastic housing
- AC Current Range: up to 600 amps
- DC Current Range: up to 600 amps
- AC Voltage Range: up to 1000 volts
- DC Voltage Range: up to 1000 volts
- Resistance Range: up to 60 kilo-ohms
- Capacitance Range: up to 1000 microfarads
- Frequency Range: approximately 5 Hz to 500 Hz
- Includes: Test leads, two AA batteries, soft carrying case
- Safety Rating: CAT III 1000 V, CAT IV 600 V
- System/Application: Electrical diagnostics for industrial and commercial systems
- The Fluke 375 FC may also be referred to as Fluke 375 FC Clamp Meter, Fluke 375 FC True-RMS Meter, Fluke Connect Clamp Meter, Fluke 375 FC 600 A Clamp, and Fluke 375 FC VFD Capable Clamp Meter.
The Fluke 375 FC Plastic True-RMS AC DC Clamp Meter provides accurate current and voltage testing with advanced safety ratings and wireless connectivity, ideal for industrial electricians and maintenance professionals.
Q: What current capacity does the Fluke 375 FC support?
A: It measures up to 600 amps AC or DC using its fixed jaw clamp.
Q: What is the maximum voltage range?
A: The meter supports up to 1000 volts AC or DC.
Q: What are the safety category ratings?
A: It is rated CAT III 1000 V and CAT IV 600 V for use in high-energy environments.
