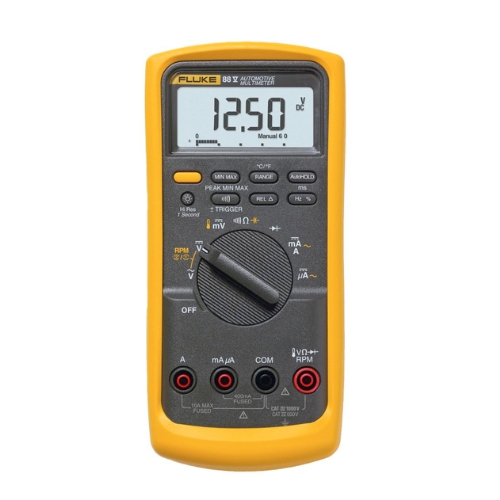

Fluke 88V Deluxe Automotive Multimeter, AC DC Voltage up to 1000 V, 10 Amp Current, Pulse Width, Duty Cycle and RPM Measurement
- The Fluke 88V Deluxe Automotive Multimeter is engineered for diagnosing conventional and hybrid vehicles. It measures AC and DC voltage up to 1000 volts, current up to 10 amps (20 amps for 30 seconds), resistance, frequency, capacitance, duty cycle, pulse width, and RPM. It comes with test leads, a holster, and an RPM inductive pickup for automotive diagnostics.
- Features:
- Measures AC and DC voltage up to 1000 volts and current up to 10 amps continuous (20 amps short duty).
- Supports duty cycle and pulse width measurements for fuel injector and PWM signal testing.
- Frequency measurement up to 200 kHz for automotive sensors and control systems.
- RPM measurement capability with included inductive pickup probe.
- Large backlit display with analog bar graph for tracking fast signal fluctuations.
- Specifications:
- Manufacturer: Fluke Corporation
- Model / SKU: 88V
- Material: Plastic housing
- Voltage Range AC/DC: up to 1000 volts
- Current Range AC/DC: up to 10 amps continuous, 20 amps for 30 seconds
- Resistance Range: up to 50 megaohms
- Capacitance Range: up to 9,999 microfarads
- Frequency Range: up to 200 kHz
- Pulse Width: millisecond resolution
- Duty Cycle: 0 to 99.9 percent
- RPM Measurement: supported with inductive pickup
- Display: Backlit LCD with 6000-count resolution and analog bar graph

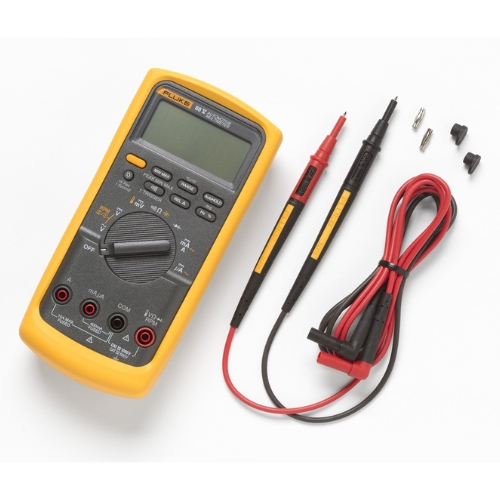

- Includes: Test leads, holster, RPM inductive pickup probe, 9-volt battery

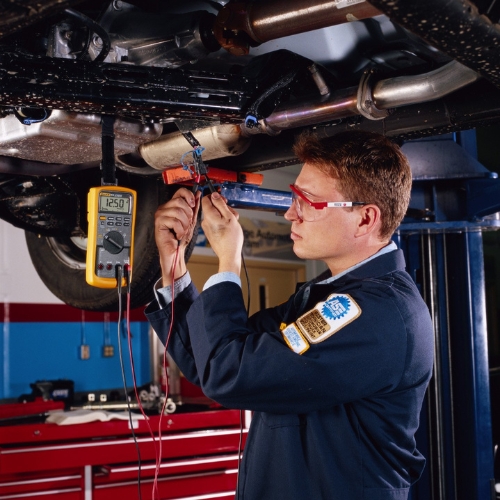

- System/Application: Designed for troubleshooting conventional and hybrid automotive electrical systems
- The Fluke 88V may also be referred to as Fluke 88V Automotive Multimeter, Fluke 88V Deluxe Multimeter, Fluke 88V RPM Tester, Fluke 88V Duty Cycle Meter, and Fluke 88V Pulse Width Multimeter.
The Fluke 88V Plastic Deluxe Automotive Multimeter combines precision measurements with automotive-specific functions, making it an essential tool for diagnosing fuel injectors, duty cycle, RPM, and hybrid vehicle systems.
Q: Can the Fluke 88V measure pulse width?
A: Yes, it measures injector and PWM pulse widths down to millisecond resolution.
Q: What is the maximum voltage and current range?
A: It measures AC/DC voltage up to 1000 volts and current up to 10 amps continuous, or 20 amps for short durations.
Q: Does it support RPM testing?
A: Yes, it includes an inductive pickup probe for RPM measurement.
