Jackco 804 Hydraulic Body Frame Repair Kit, 4-Ton Push-On (Snap-On)
- The Jackco 804 (Push-On / Snap-On type) hydraulic body frame repair kit is a 4-ton, 5-inch stroke porta-power style straightening set. It suits pulling, pushing, spreading, bending, and aligning tasks in vehicle structural repair. It comes in a blow-molded case with a hand pump, ram, hose, and attachments.
- Features:
- 4-ton hydraulic unit with 5-inch stroke ram for heavy-duty force application.
- Multiple extension tubes (19-1/2", 16-1/2", 8-1/2", 5", 3-1/4") for accessing tight or recessed repair points.
- Broad set of attachments: serrated saddle, flat base, wedge head, 90° V-base, spreader toes, connector.
- 6-foot hydraulic hose with half coupling allows separation of pump and work area for convenience and safety.

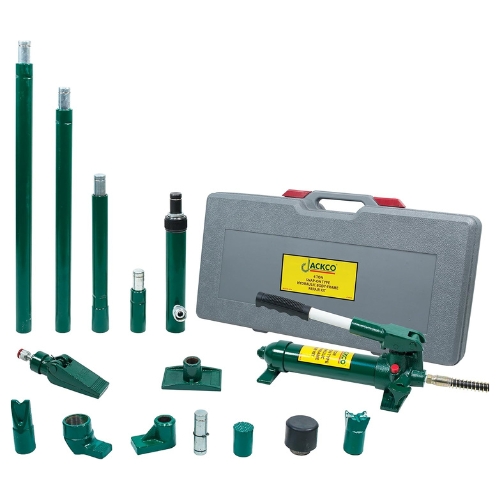

- Includes:
- Blow-molded carrying case
- 19-1/2 inch extension tube
- 16-1/2 inch extension tube
- 8-1/2 inch extension tube
- 5 inch extension tube
- 3-1/4 inch extension tube
- Serrated saddle
- Spreader ram
- 2-3/4 inch rubber head
- Flat base
- Spreader ram toe
- Spreader plunger toe
- Wedge head
- 90° V-base
- Connector
- 4-ton hydraulic hand pump / unit
- 4-ton, 5-inch stroke ram
- 6-ft hose with half coupling
- Specifications:
- Manufacturer: Jackco
- Part / Model: 804 (Push-On / Snap-On version)
- Capacity: 4 tons (40,000 lbf approximate force) via hydraulic ram
- Ram Stroke: 5 inch
- Extension Tubes: 19-1/2", 16-1/2", 8-1/2", 5", 3-1/4" lengths
- Hose: 6 ft with half coupling
- Attachment Types: serrated saddle, wedge, flat base, V-base, toe adapters, etc.
- System Compatibility: Designed for automotive body and frame straightening, dent repair, bending, pulling, pushing, and structural alignment jobs in repair shops or collision centers
- This Jackco 804 tool kit is also referred to as Jackco 4-ton frame repair kit, 4-ton porta-power kit, hydraulic body straightener kit, push-on jackco kit, and Snap-On type body repair set.
Jackco is a trusted manufacturer of professional automotive and industrial tools, offering durable, high-performance equipment designed to meet the needs of technicians and repair professionals worldwide.
Q: Is the kit compatible with both push and pull operations?
A: Yes, The supplied attachments and extensions allow use in pushing, pulling, spreading, and bending modes for body repair and alignment.
Q: Does the kit include both pump and ram?
A: Yes, The kit includes a 4-ton hydraulic hand pump (unit) and a 5-inch stroke ram to deliver force for repair tasks.
Q: What is the difference between "Push-On / Snap-On" and standard versions?
A: The Push-On / Snap-On designation refers to the coupling style and fittings for attaching the hose or tubes, offering compatibility with quick-connect or snap coupling systems. Tool suppliers list this variant for easier hookup.
