Jet 287101 JLP-025A-10 Mini-Puller Lever Hoist, Steel, 1/4 Ton Capacity, 10' Lift

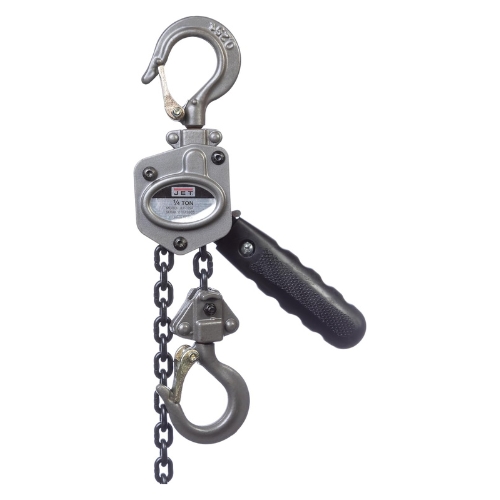

- The Jet 287101 JLP-025A-10 Mini-Puller is a compact steel lever hoist designed for lifting, pulling, and tensioning up to 1/4 ton over a 10-foot lift. Its lightweight design and low headroom requirement make it ideal for tight spaces in construction, maintenance, and industrial applications.
- Features:

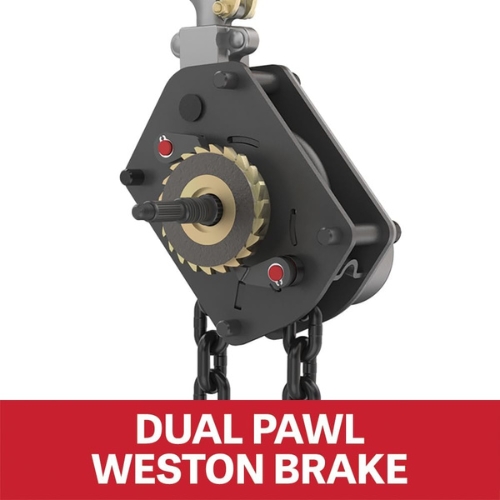

- Weston-style double pawl brake securely holds loads and ensures reliable operation.
- Industrial alloy steel hooks rotate 360 degrees for easy rigging and reduced chain twist.
- Needle bearing construction reduces effort and provides smoother lever operation.
- Compact design with only 8.25 inches of headroom allows use in confined areas.
- Equipped with a brake wear indicator for added safety and maintenance awareness.
- Specifications:
- Manufacturer: Jet Tools
- Part Number: 287101 (Model JLP-025A-10)
- Material: Steel body, chain, and hooks
- Capacity: 1/4 ton (500 lb)
- Lift Height: 10 feet
- Headroom: 8.25 inches
- Handle (Lever) Length: 6 inches
- Lift per Full Lever Turn: 3 inches
- Load Chain Dimensions: 4 mm x 12 mm
- Hook Throat Opening: 1.4 inches
- Overall Width: 3.1 inches
- Number of Falls: 1 (single fall chain)
- System Compatibility/Application: Suitable for lifting, pulling, and tensioning in maintenance, construction, and light industrial work
- The Jet 287101 is also known as the Jet JLP-025A-10 Mini Lever Hoist or 1/4 Ton Mini-Puller Hoist with 10 ft Lift.
The Jet 287101 JLP-025A-10 Mini-Puller offers durable steel construction, secure load holding, and smooth lever action. With its compact size and 10-foot lift, it is an excellent solution for overhead lifting or pulling tasks in confined spaces.
Q: What is the rated capacity of this hoist?
A: It is rated for 1/4 ton (500 lb) maximum lifting capacity.
Q: What is the minimum clearance needed to operate this hoist?
A: The hoist requires about 8.25 inches of headroom, making it suitable for low-clearance applications.
Q: How much lift does each lever pull provide?
A: Each full lever turn provides approximately 3 inches of lift.
