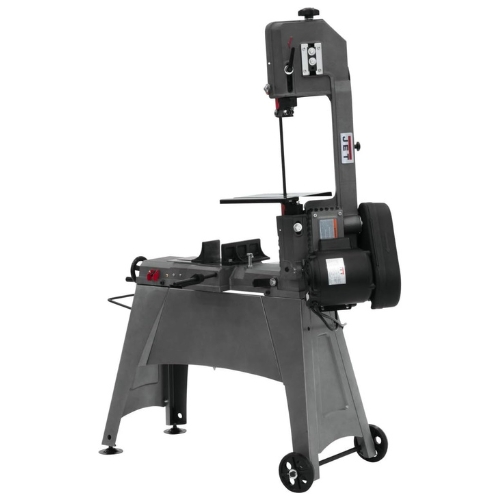

Jet 414458 HVBS-56M Horizontal Vertical Bandsaw, Steel, 5" x 6" Capacity, 3 Speeds
- The Jet 414458 HVBS-56M Horizontal Vertical Bandsaw is a steel-framed cutting tool with a 1/2 HP motor designed for both horizontal and vertical cutting applications. With a 5 x 6 inch capacity, three blade speeds, and adjustable guides, it provides versatility for light industrial and workshop use.
- Features:

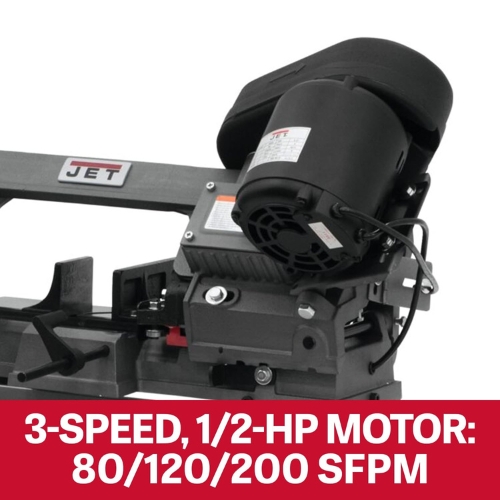

- Three blade speeds of 80, 120, and 200 surface feet per minute for various materials.

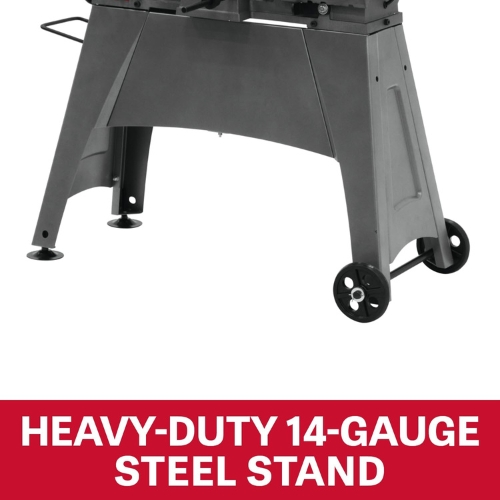

- Heavy-duty 14-gauge steel stand with integrated shelf for stability and storage.
- Durable worm gear drive in oil bath ensures smooth and long-lasting operation.
- Ball bearing blade guides and blade wheels improve cutting accuracy.

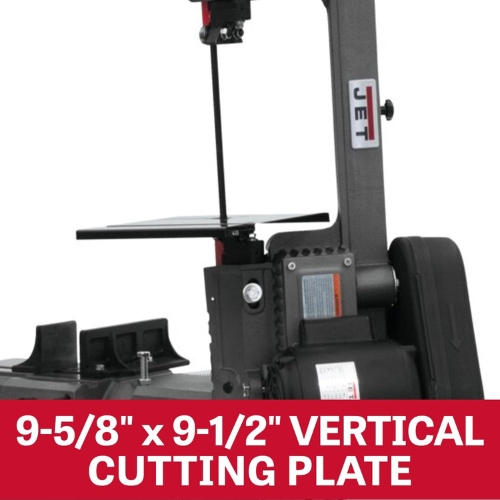

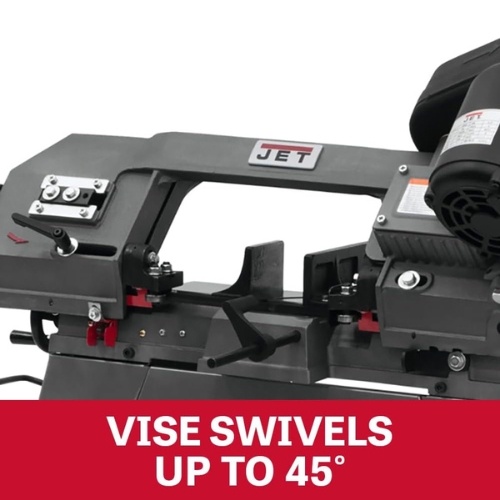

- Swivel vise and tilting table (up to 45 degrees) for angled cuts.
- Automatic shut-off at end of cut with adjustable material stop for safety and convenience.
- Specifications:
- Manufacturer: Jet Tools
- Part Number: 414458 (Model HVBS-56M)
- Material: Steel frame, cast and steel components
- Motor: 1/2 HP, 115/230 V, single-phase
- Cutting Capacity (Round at 90degrees): 5"
- Cutting Capacity (Round at 45degrees): 3"
- Cutting Capacity (Rectangular at 90degrees): 5" x 5-3/4" and 2" x 6"
- Cutting Capacity (Rectangular at 45degrees): 4-1/2" x 3"
- Blade Wheel Diameter: 7-3/8"
- Blade Length: 64-1/2"

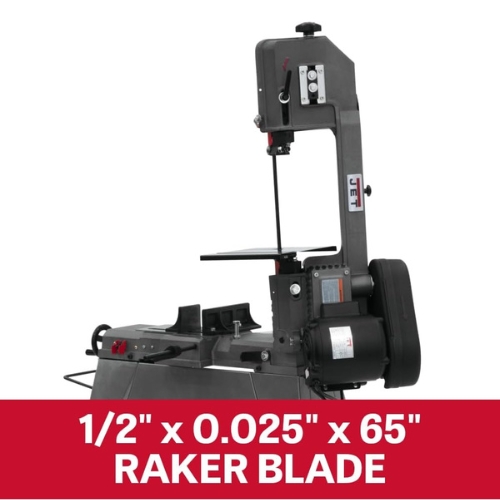

- Blade Size: 1/2" x 0.025" x 64-1/2"
- Bed Height: 26 inch
- Overall Dimensions: 36" x 20" x 39-1/2"
- System Compatibility/Application: Designed for cutting steel and other metals in horizontal or vertical positions for fabrication and workshop tasks
- This saw is also referred to as the Jet HVBS-56M 5 x 6 Horizontal Vertical Bandsaw or Jet Model 414458 Metal Cutting Bandsaw.
The Jet 414458 HVBS-56M delivers precise cutting with a strong steel frame, multiple blade speeds, and flexible horizontal or vertical operation. Compact yet powerful, it is ideal for small shops, fabrication tasks, and light industrial applications.
Q: What are the available blade speeds?
A: The saw operates at 80, 120, and 200 surface feet per minute for different materials.
Q: Can it perform angled cuts?
A: Yes, the vise swivels and the worktable tilts up to 45 degrees for angled cutting.
Q: What is the maximum round cutting capacity?
A: The maximum round stock capacity is 5 inch at 90 degrees and 3 inch at 45 degrees.
