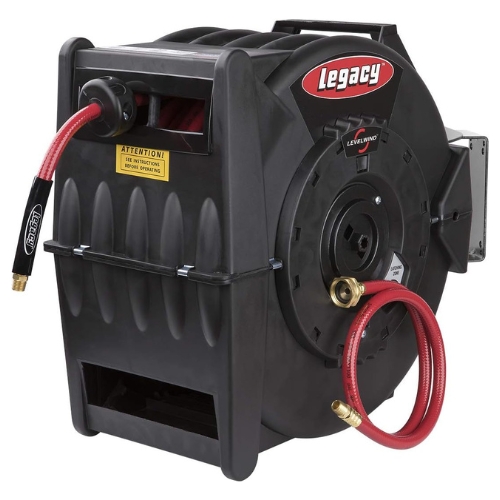

Legacy Manufacturing L8310 Levelwind Retractable Air Hose Reel, 3/8 inch ID x 100 feet, 350 psi
- Legacy Manufacturing L8310 is a Levelwind retractable air hose reel for shop air service. It includes a 3/8 inch inside diameter, 100 feet PVC air hose and a latching or free run rewind mode to speed setup and storage while maintaining smooth payout and retraction.
- Features:
- Levelwind winding system layers hose evenly for smooth payout and rewind, reducing kinks and wear
- Latching mode switch allows free run or latching every 3 feet to match the task
- Seven position locking bracket enables fixed angles or free swivel for flexible mounting
- Extra large swivel reduces flow restriction for better air delivery
- Freestanding base permits portable use or mounting on wall or ceiling
- Durable, UV stabilized polypropylene housing for shop environments
- Specifications:
- Manufacturer: Legacy Manufacturing
- Part Number: L8310
- Category: Hose reels
- Subcategory: Air hose reels
- Product Type / Function: Retractable open face hose reel for compressed air
- Hose Size and Length: 3/8 inch inside diameter, 100 feet PVC hose
- Working Pressure: 350 psi at 70 F
- Temperature Range: 15 F to 150 F
- Reel Inlet: 3/4 inch 11-1/2 male GHT
- Hose Outlet: 1/4 inch MNPT
- Mounting: freestanding base or wall and ceiling mounting with seven position locking bracket
- Color: black reel with black and red hose
- System Compatibility / Application: shop compressed air distribution; not a replacement part for a specific SKU
- The Levelwind retractable air hose reel can also be referred to as air hose reel 3/8 inch x 100 feet, retractable air hose reel, Levelwind hose reel, shop air hose reel, and Legacy L8310 hose reel.
Legacy Manufacturing designs Levelwind air and water hose reels for professional shops, using durable housings and service focused features such as latching control, locking brackets, and large flow swivels.
Q: Can this reel be used freestanding or must it be mounted?
A: It can be used freestanding or mounted on a wall or ceiling. The base is designed to sit flat, and the bracket provides seven locking positions.
Q: What thread types are on the inlet and outlet?
A: The reel inlet is 3/4 inch 11-1/2 male GHT and the hose outlet is 1/4 inch MNPT.
Q: Does the rewind latch every few feet?
A: Yes. The latching mode can be set to latch every 3 feet or switched to free run for continuous automatic rewind.
