Lisle 69910 Turbo Air System Test Kit With Smoke Adapter, 14 Piece
- Lisle 69910 Turbo Air System Test Kit is a service tool for pressurizing and smoke-testing turbo intake plumbing on cars and light trucks. It uses a T-adapter to connect a smoke machine and applies regulated air and smoke to help pinpoint leaks. The kit includes six pairs of stepped adapters and a molded case.
- Features:
- Smoke machine connectivity: includes a T-adapter to connect common smoke machines for visual leak detection during intake testing.

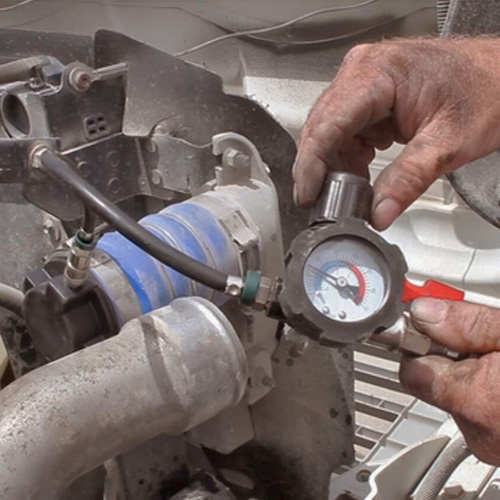

- Integrated control: pressure gauge, shut off valve, and pressure regulator help apply controlled pressure and monitor the test.
- Wide coverage: six pairs of stepped adapters fit common hose inner diameters from 31 to 90 mm for broad vehicle coverage.

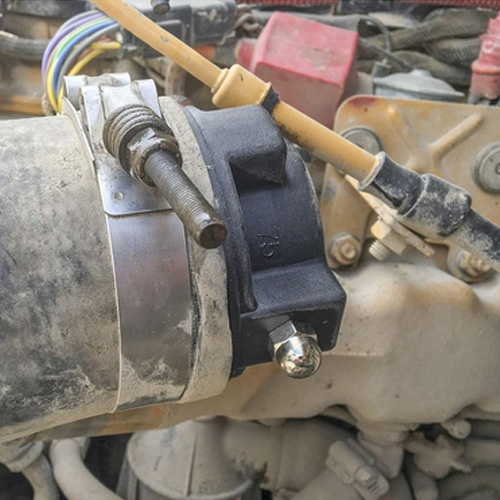

- Dual end adapters: one plugged adapter seals the circuit while the matching air fitting adapter introduces air and smoke through a single point.
- Application focused: universal diagnostic tool for turbo systems; can also be used on some cooling system hoses and is not a replacement part for a specific vehicle.

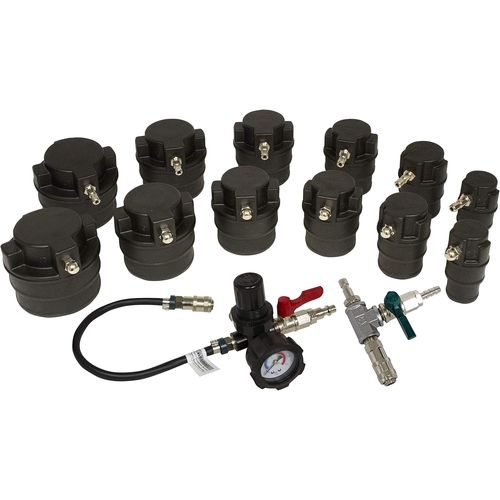

- Includes:
- 31/38 mm Plugged Adapter (69710) - 1-1/4 inch / 1-1/2 inch
- 31/38 mm Air Fitting Adapter (69720) - 1-1/4 inch / 1-1/2 inch
- 46/51 mm Plugged Adapter (69730) - 1-7/8 inch / 2 inch
- 46/51 mm Air Fitting Adapter (69740) - 1-7/8 inch / 2 inch
- 55/60 mm Plugged Adapter (69750) - 2-1/8 inch / 2-3/8 inch
- 55/60 mm Air Fitting Adapter (69760) - 2-1/8 inch / 2-3/8 inch
- 65/70 mm Plugged Adapter (69770) - 2-1/2 inch / 2-3/4 inch
- 65/70 mm Air Fitting Adapter (69780) - 2-1/2 inch / 2-3/4 inch
- 75/80 mm Plugged Adapter (69790) - 3 inch / 3-1/8 inch
- 75/80 mm Air Fitting Adapter (69800) - 3 inch / 3-1/8 inch
- 85/90 mm Plugged Adapter (69810) - 3-3/8 inch / 3-1/2 inch
- 85/90 mm Air Fitting Adapter (69820) - 3-3/8 inch / 3-1/2 inch
- Air Regulator Hose And Gauge (69840)

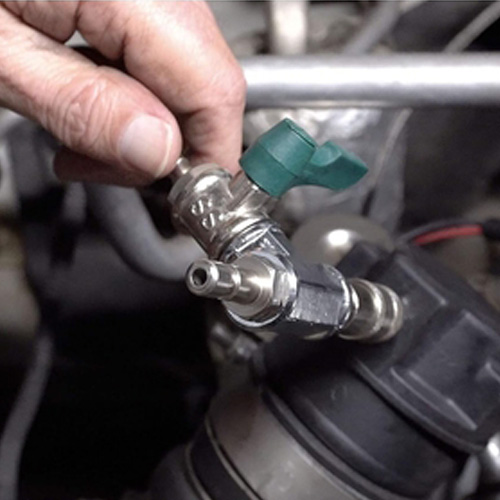

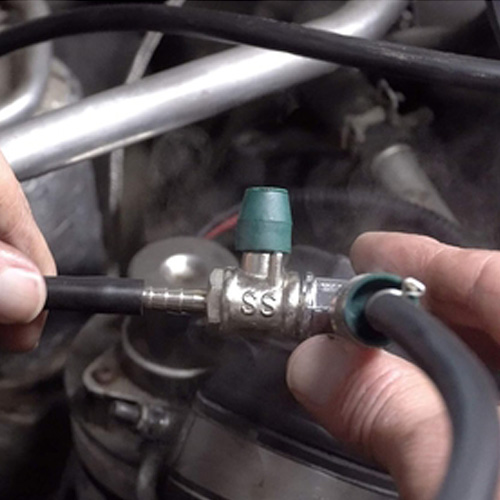

- Smoke Adapter, T-adapter style (69920)
- Case For 69910 (69830)
- Specifications:
- Manufacturer: Lisle
- Part Number: 69910
- Category: Automotive Tools
- Subcategory: Engine Diagnostic Tools
- Product Type / Function: Turbo air system leak test kit with smoke machine adapter
- Size / Capacity: Six pairs of stepped adapters cover hose inner diameters from 31 to 90 mm (approximately 1-1/4 inch to 3-1/2 inch)
- Drive / Connection Type: T-adapter connection for smoke machines; integrated pressure gauge, regulator, and shut off valve
- System Compatibility / Application: For pressurizing and smoke-testing turbo intake systems on cars and light trucks; can also be used on some cooling system hoses
- Packaging Type: Molded case (69830)
- Quantity: 14 pieces plus case (see Includes for all distinct components)
- The Turbo Air System Test Kit With Smoke Adapter can also be referred to as turbo leak test kit, smoke adapter turbo tester, boost leak test tool, intake system pressure tester, and turbo system smoke test kit.
Lisle designs and manufactures specialty automotive service tools for professional and DIY technicians, including diagnostic and engine service tools engineered for practical use in shop environments.
Q: Does the kit connect directly to a smoke machine?
A: Yes. The included smoke adapter is a T-adapter that connects to a smoke machine so air and smoke can be applied through one adapter.
Q: What hose sizes are covered by the adapters?
A: The six stepped adapter pairs cover common hose inner diameters from 31 to 90 mm, as listed in the Includes section.
Q: Can it be used outside of turbo intake testing?
A: Yes. It can also be used on some cooling system hoses where appropriate for leak checks.
