Midtronics MDX-P300 Battery and Electrical System Analyzer, Integrated Printer, 12 volt, 100 to 1400 CCA, For Cars and Light Trucks

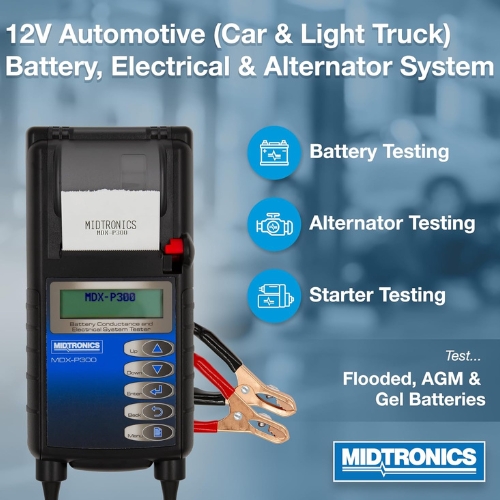

- Midtronics MDX-P300 battery and electrical system analyzer tests 12 volt automotive batteries and starting or charging systems. It uses conductance technology for quick results and prints findings for customers. This is a diagnostic tool for cars and light trucks; it is not a replacement part for another SKU.
- Features:

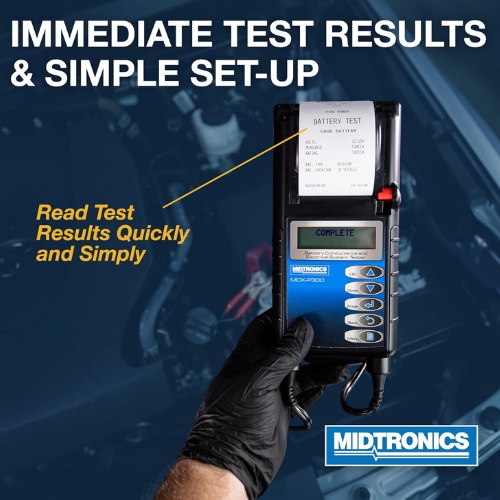

- Integrated printer provides immediate test results for customer records and preventive maintenance

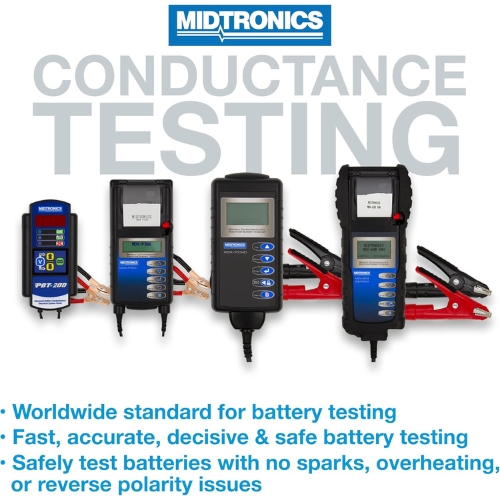

- Conductance based testing delivers fast, repeatable decisions without applying a load, improving safety
- Wide rating coverage from 100 to 1400 CCA with support for CCA, SAE, DIN, EN, IEC, and JIS systems
- Supports regular flooded, AGM, and gel batteries; works on discharged batteries down to 1 volt
- Designed for 12 volt passenger cars and light trucks; also checks starter and charging system voltage
- Includes:

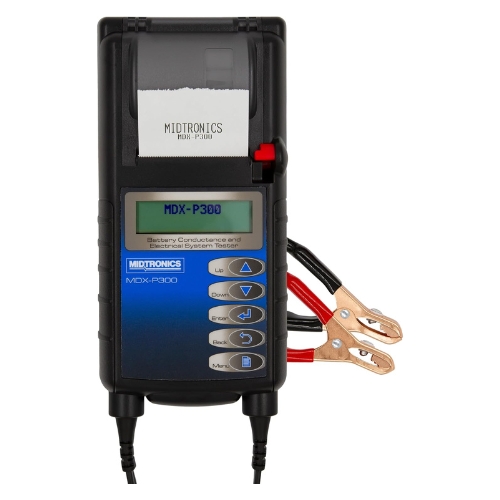

- MDX-P300 analyzer with integrated printer
- Lead terminal adapters
- Thermal printer paper roll installed
- Specifications:
- Manufacturer: Midtronics
- Part Number: MDX-P300
- Product Type: Battery and electrical system analyzer with integrated printer
- Battery Chemistries: Regular flooded, AGM, gel
- Rating Systems: CCA, SAE, DIN, EN, IEC, JIS
- Test Range: 100 to 1400 CCA
- System Compatibility / Application: For testing 12 volt automotive batteries and starter or charging systems on passenger cars and light trucks; not a replacement part
- Voltmeter Range: 0 to 30 Vdc
- Discharged Battery Capability: Tests down to 1 volt
- Power: Uses the battery under test and an internal 9 volt battery for menus and low voltage testing
- Cable Length: 533.4 mm
- Housing Material: Acid resistant ABS plastic
- Dimensions: 230 mm x 102 mm x 65 mm
- Languages: English, Spanish, French, Japanese
- The Midtronics MDX-P300 can also be referred to as battery and electrical system analyzer, 12 volt battery tester, CCA battery tester, AGM battery tester, and automotive battery tester with printer.
Midtronics develops battery and electrical diagnostic equipment for automotive service professionals. The MDX-P300 applies conductance technology and integrated printing to support quick battery, starter, and charging assessments for passenger vehicles in service bays.
Q: Which batteries and vehicles can the MDX-P300 test?
A: It tests 12 volt regular flooded, AGM, and gel batteries used in passenger cars and light trucks, and it can check starter and charging system voltage.
Q: What rating systems and ranges are supported?
A: It supports CCA, SAE, DIN, EN, IEC, and JIS, with a CCA test range from 100 to 1400.
Q: Does it print results and does it need special power?
A: Yes, the integrated printer outputs test results. Printing requires connection to a vehicle battery with sufficient voltage; the unit also has an internal 9 volt battery that supports menus and low voltage testing.
