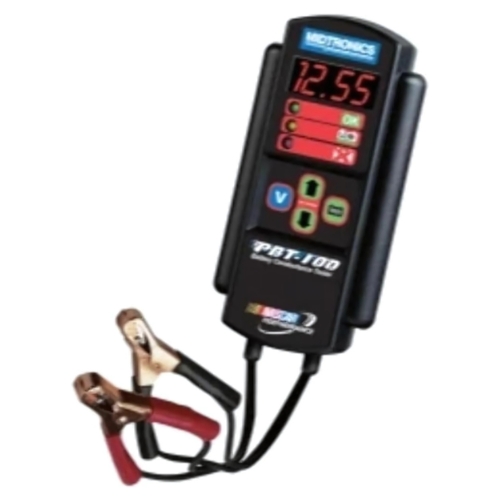

Midtronics PBT-100 Advanced Battery Conductance Tester, 12 Volt Automotive, 200 to 850 CCA, Voltmeter Mode Midtronics MID.PBT100
View Larger

Midtronics PBT-100 Advanced Battery Conductance Tester, 12 Volt Automotive, 200 to 850 CCA, Voltmeter Mode

Item # MID.PBT100
$311.45
Quantity:      On Hand: 27QTY_CHECK:27-net:-DB:27-VSTOCK:0  Sold As: each


Midtronics
More Products from Midtronics

  Add to Shopping List
  Save For Later


Overview



Midtronics PBT-100 Advanced Battery Conductance Tester, 12 Volt Automotive, 200 to 850 CCA, Voltmeter Mode

  • Midtronics PBT-100 is an advanced battery conductance tester for 12 volt automotive systems. It evaluates starting batteries and provides a voltmeter mode for starter and charging checks. The 200 to 850 CCA range and battery powered operation support quick diagnostics in the service bay.
  • Features:
    • Conductance testing delivers fast, repeatable battery condition decisions without applying a load, improving safety and consistency
    • Measurement range 200 to 850 CCA supports common passenger vehicle starting batteries
    • Voltmeter mode 8.0 to 19.0 VDC enables live checks of starter and charging system performance
    • Powered by the battery under test with a minimum 8 volts required, eliminating internal batteries and maintenance
    • Designed for testing 12 volt automotive starting batteries and related electrical system checks; not a replacement part
  • Specifications:
    • Manufacturer: Midtronics
    • Part Number: PBT-100
    • Type: Advanced battery conductance tester with voltmeter mode
    • Measurement Range: 200 to 850 CCA (SAE)
    • Voltmeter Range: 8.0 to 19.0 VDC
    • Power: Uses power from the battery under test; minimum 8 volts required
    • Display: 3 LEDs and 3 position LED screen
    • Housing Material: Acid resistant ABS plastic
    • Housing Dimensions: 7.5 inch x 3.5 inch x 2.0 inch (230 mm x 102 mm x 65 mm)
    • System Compatibility / Application: For testing 12 volt automotive starting batteries and performing starter and charging system checks; not a replacement part
    • Quantity: 1 tester
  • The Midtronics PBT-100 Advanced Battery Conductance Tester can also be referred to as automotive battery tester, conductance battery tester, 12 volt battery tester, CCA battery tester, and starter and alternator tester.



Midtronics designs battery management and electrical diagnostic equipment for automotive service operations. The PBT-100 provides conductance based testing and basic starter and charging checks for 12 volt vehicles in a compact handheld format.



Q: Does the PBT-100 test only 12 volt batteries?
A: Yes. It is intended for 12 volt automotive starting batteries and related electrical system checks.



Q: What battery rating and range does it support?
A: It uses the SAE CCA rating and measures from 200 to 850 CCA.



Q: Does it require internal batteries?
A: No. The tester draws power from the battery under test and requires a minimum of 8 volts.
