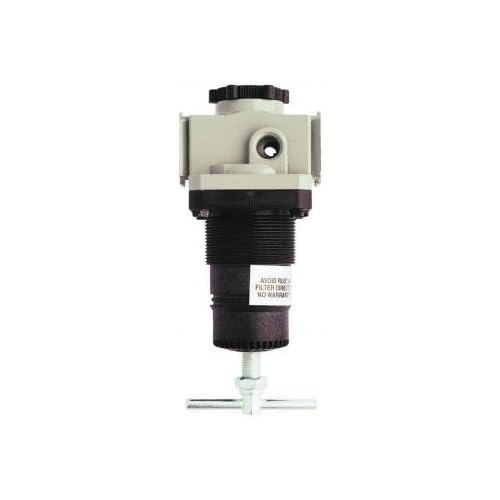

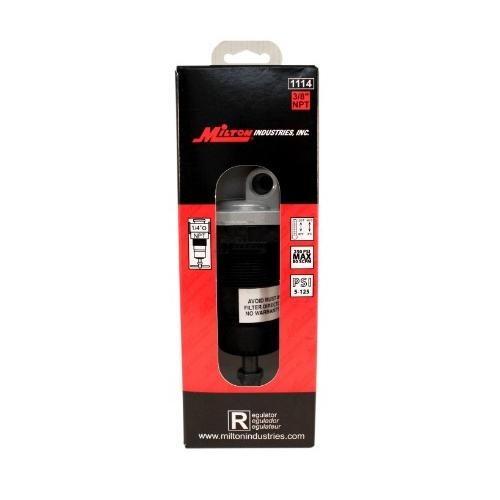

Milton 1114 Pressure Regulator, 3/8" NPT, Standard Range 5 to 125 PSI
- The Milton 1114 Pressure Regulator is a mid-size pneumatic control device with 3/8 NPT ports, designed to provide accurate downstream air pressure regulation in workshop and industrial compressed air systems.
- Features:
- Aluminum die-cast body with balanced piston and molded rubber seat - delivers durability and consistent air pressure control.
- Buna-N diaphragm and O-rings - ensure leak resistance and long service life.
- Two offset 1/4 NPT gauge ports - allow dual gauge installation or can be repurposed as supply lines for flexible setups.
- Adjustable pressure range from 5 to 125 PSI - supports a wide variety of pneumatic tool applications.
- Specifications:
- Manufacturer: Milton Industries
- Part Number: 1114
- Maximum Inlet Pressure: 250 PSI
- Regulated Pressure Range: 5 to 125 PSI
- Thread Size: 3/8 NPT inlet and outlet
- Gauge Port Size: 1/4 NPT (two offset ports)
- Operating Temperature Range: 40 degrees F to 120 degrees F
- Material: Aluminum body
- System Compatibility: Designed for compressed air systems requiring precise downstream pressure regulation
- The Pressure Regulator can also be referred to as pneumatic pressure regulator, mid-size air regulator, 3/8 NPT air regulator, inline pressure control device, and balanced piston air regulator.
Milton Industries is a trusted manufacturer of pneumatic components, known for reliable regulators, couplers, and air system accessories engineered for professional and industrial use.
Q: What is the maximum inlet pressure this regulator can handle?
A: It is rated for a maximum inlet pressure of 250 PSI, making it suitable for most compressed air systems.
Q: Can I use both gauge ports at the same time?
A: Yes-the two offset 1/4 NPT gauge ports can accommodate dual gauges or serve as additional supply line connections.
Q: What temperature range does this regulator operate in?
A: It is designed for reliable use between 40 degrees F and 120 degrees F, covering standard workshop and industrial conditions.
