Milton 2780-50D Steel Dual Arm Auto Retractable Air Hose Reel, 1/2" x 50', 300 PSI

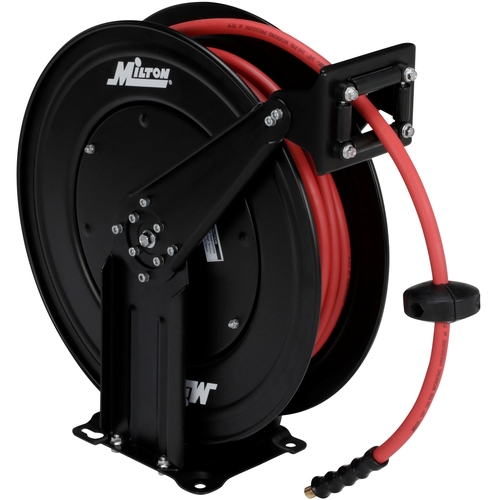

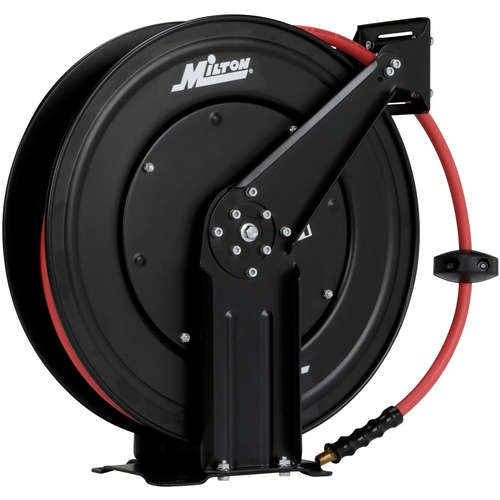

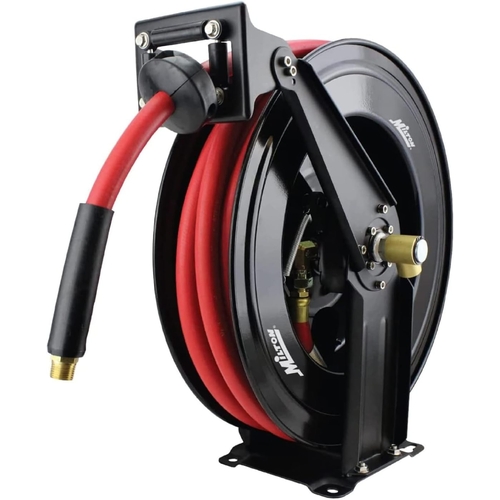

- The Milton 2780-50D steel dual arm auto retractable air hose reel delivers organized, safe air delivery with 1/2 inch by 50 foot EPDM rubber hose, rated to 300 PSI, in a durable, automatic-recoil steel reel.
- Features:

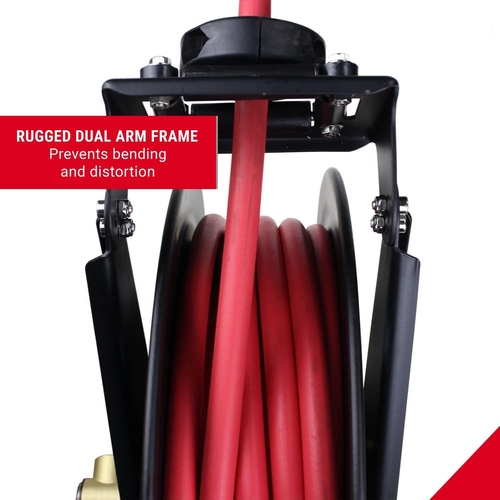

- Dual-arm steel frame resists twisting and adds rigidity for long-term durability

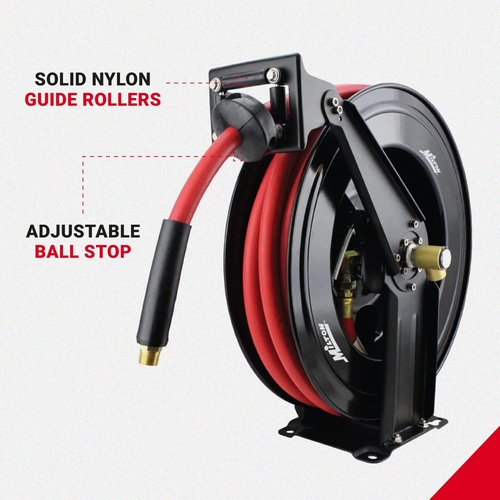

- Automatic recoil with adjustable ball stop locks hose at preferred length with 12 clicks per revolution
- Nylon roller guides ensure smooth hose movement in any direction

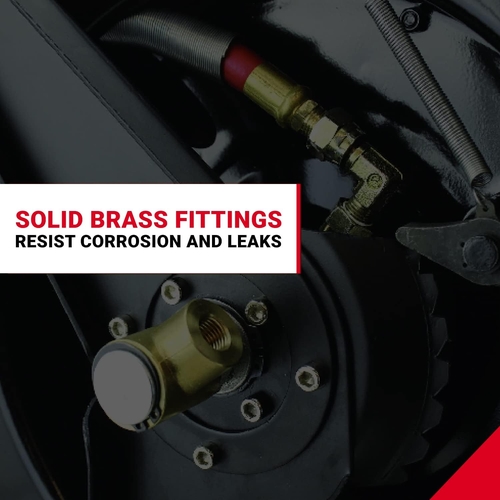

- Solid brass fittings with powder-coated finish for corrosion resistance and high airflow performance

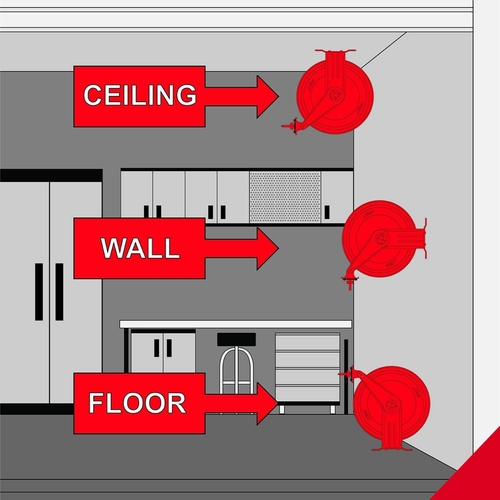

- Keyhole mounting slots support easy installation on ceilings, walls, benches, or service vehicles
- Specifications:
- Manufacturer: Milton
- Part Number: 2780-50D

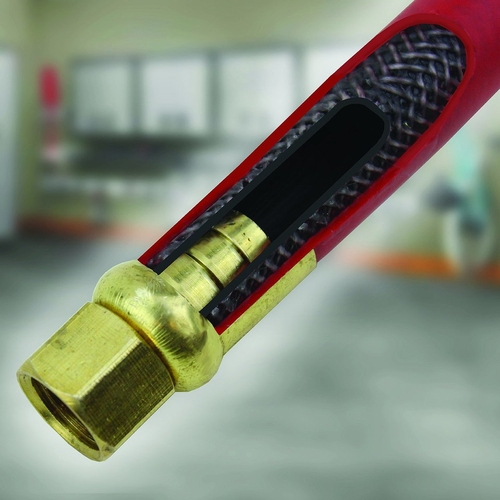

- Hose Size and Length: 1/2 inch inner diameter x 50 feet of nylon-reinforced EPDM rubber

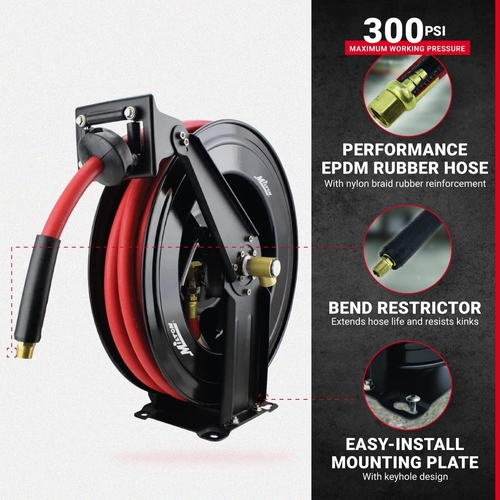

- Maximum Working Pressure: 300 PSI
- Air Inlet: 1/2 inch NPT female
- Air Outlet: 1/2 inch NPT male
- Operation: Automatic spring-driven recoil with adjustable ball stop and 12 ratchet positions per revolution
- Application: Recoiling air hose reel for pneumatic tools and compressed air systems
- The reel may also be referred to as auto-retract hose reel, dual-arm air reel, automatic air hose organizer, pneumatic hose reel, and shop air hose reel.
Milton’s 2780-50D combines a robust dual-arm steel frame with a long, flexible EPDM hose and automatic reel mechanism to provide efficient, tangle-free air delivery-ideal for busy automotive and industrial shops.
Q: What hose capacity and pressure does this reel support?
A: It comes with a 1/2 inch inner diameter hose, 50 feet long, rated for up to 300 PSI.
Q: How do I control hose length and retraction?
A: Simply pull the hose to the desired length; the ratchet clicks lock it in place. To retract, pull slightly past the set point, then guide it back. The adjustable ball stop helps manage retraction fully.
Q: How is the reel mounted?
A: It features keyhole mounting slots for easy installation on walls, ceilings, workbenches, or in service vehicles-mounting hardware not included.
