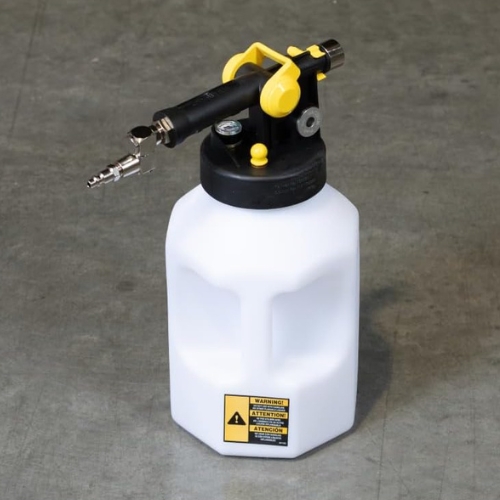

Mityvac MV7105 Fluid Evacuator/Dispenser, 1.2 Gallon Capacity, 90 to 120 PSI Shop Air, Vacuum or Pressure Operation

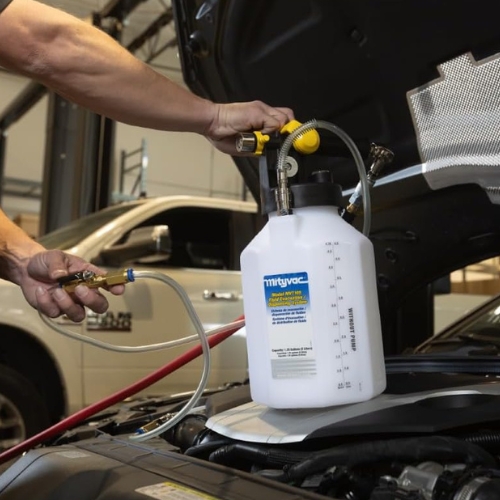

- Mityvac MV7105 is a shop air powered fluid evacuator and dispenser for evacuating, topping off, refilling reservoirs, and pressure or vacuum bleeding hydraulic brake and clutch systems. It has a 1.2 gallon reservoir and switches between vacuum and positive pressure using the integrated venturi system.
- Features:
- Dual function vacuum and pressure operation lets technicians extract or dispense fluids using the same tool for faster service changes.
- Operates on 90 to 120 PSI compressed air with a built in relief that maintains reservoir pressure between 20 and 25 PSI for controlled flow.
- Quick connect fluid coupler, shutoff valve, and slide selector simplify setup and reduce spills during fills and bleeds.
- 1.2 gallon reservoir supports common automotive fluids, including engine oil, coolant, brake fluid, power steering fluid, and ATF.
- Standalone system for general service; not a replacement part and not dedicated to a specific vehicle or SKU.

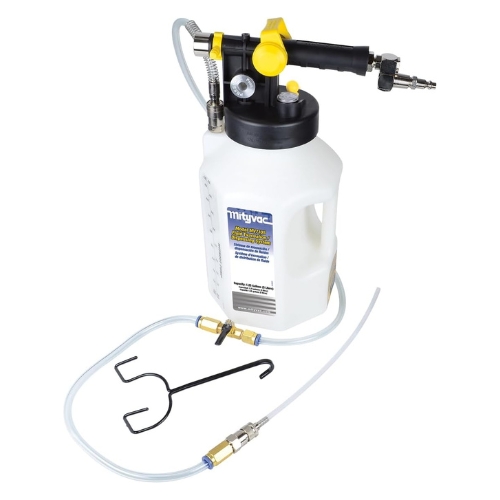

- Includes:
- Reservoir with lid assembly and integrated venturi vacuum and pressure dispensing controls
- Fluid hose assembly (MVA575) with shutoff
- Fluid dispensing wand (MVA570)
- Hanging hook (822753)
- User manual
- Specifications:
- Manufacturer: Mityvac
- Part Number: MV7105
- Size / Capacity: 1.2 gallons
- Drive / Connection Type: Quick connect fluid coupler; shop air inlet
- Inlet Air Pressure: 90 to 120 PSI
- Operating Pressure: 20 to 25 PSI; maximum reservoir pressure 25 PSI
- Compatible Systems / Application: Evacuating and dispensing fluids; pressure or vacuum bleeding brake and clutch systems; supports engine oil, coolant, ATF, brake and power steering fluids; standalone unit, not a replacement part
- Packaging Type: Boxed with user manual
- The Fluid Evacuator and Dispenser can also be referred to as fluid evacuator dispenser, pneumatic fluid extractor, shop air fluid dispenser, brake pressure bleeder, and transmission refill dispenser.
Mityvac designs professional fluid evacuation and dispensing systems and service adapters for automotive, commercial, and industrial maintenance, emphasizing safe pressure control, reliability, and coverage across common vehicle fluids.
Q: What air pressure is required and what is the reservoir pressure limit?
A: Supply 90 to 120 PSI shop air to the inlet. The built in relief limits reservoir pressure to 25 PSI and normal operating pressure is 20 to 25 PSI.
Q: Which fluids can be handled?
A: It is intended for engine oil, coolant, automatic transmission fluid, brake fluid, power steering fluid, and windshield washer fluid. Do not use with gasoline or other flammable liquids.
Q: What components are included with MV7105?
A: The system includes the reservoir with lid assembly, a fluid hose assembly with shutoff, a dispensing wand, a hanging hook, and the user manual.
