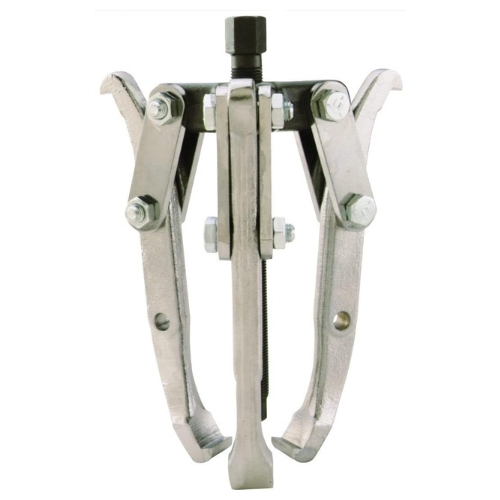

OTC 1027 Mechanical Grip-O-Matic Puller, 5 Ton, Long 2/3-Jaw Reversible Jaws
- This OTC 1027 Grip-O-Matic puller is a mechanical 5 ton tool with long 2- or 3-jaw reversible configuration; designed for high-strength removal of bearings, gears, pulleys etc., featuring forged steel and heat treatment ensuring durability and exceeding rated capacity.
- Features:
- Capacity 5 ton for heavy-duty pulling in automotive or industrial settings.
- Long 2/3-jaw reversible design offers extended reach and adaptability for different shapes or clearances.
- Max reach 5-1/2 inch and max spread 7 inches allows pulling from deeper or wider components.
- Screw thread 9/16-20 x 6-15/16 inch helps achieve force needed while maintaining control.

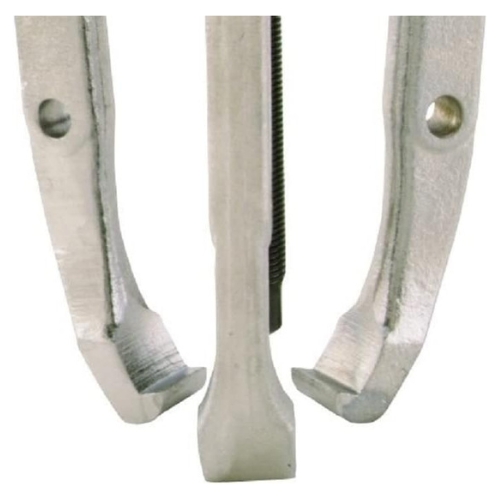

- Jaw thickness upper 5/16 inch, lower 1/4 inch; jaw width upper 3/8 inch, lower 3/4 inch balances strength and grip.
- Specifications:
- Manufacturer: OTC
- Part Number: 1027
- Capacity: 5 ton
- Jaw Type: Long 2/3-jaw reversible
- Max Reach: 5-1/2 inch
- Maximum Spread: 7 inch
- Screw Size: 9/16-20 x 6-15/16 inch
- Jaw Thickness: upper 5/16 inch; lower 1/4 inch
- Jaw Width: upper 3/8 inch; lower 3/4 inch
- Material: forged steel
- The OTC 1027 can also be referred to as OTC 5 ton long jaw puller, OTC reversible 2/3 jaw puller, OTC mechanical Grip-O-Matic puller 1027, OTC long reach bearing puller, OTC puller for automotive applications.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability
Q: What does "long 2/3-jaw reversible" mean?
A: It means the puller has longer jaws than standard, that can be configured in either two or three jaw setups, and the jaws can be reversed (upper or lower position) depending on the workpiece.
Q: What are the reach and spread and why do they matter?
A: Reach of 5-1/2 inch allows accessing parts located deeper toward a shaft or component, and spread of 7 inch determines how wide of a diameter the puller can grip; both must suit the part you are removing for safe operation.
Q: Is OTC 1027 suitable instead of other OTC pullers like 1026?
A: Yes, 1027 offers the same capacity but longer reach than some shorter models, making it better for parts that are harder to reach; ensure that reach and spread limits are not exceeded and that the component and condition match the tool’s rated strength.
