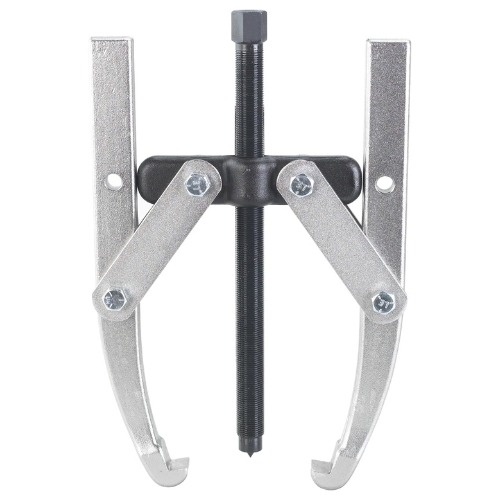

OTC 1039 Mechanical Grip-O-Matic Puller, 13 Ton, 2-Jaw
- OTC 1039 Grip-O-Matic puller is a mechanical 13 ton, 2-jaw puller designed for heavy-duty removal of bearings, gears, pulleys etc., made from forged, heat-treated steel to exceed its rated capacity.
- Features:
- 13 ton capacity handles large, press-fitted components in automotive, agricultural or industrial applications.
- 2-jaw fixed design gives strong symmetrical pulling force for parts that are accessible from two sides.
- Maximum reach 11 inch and maximum spread 12 inches accommodates deeper parts and larger outer diameters.
- Jaw thickness of 9/16 inch and jaw width 1 inch thick, robust jaws reduce flex and maximize grip.
- Screw size 13/16-16 thread x 12 inch long long screw provides strong leverage and reach.
- Specifications:
- Manufacturer: OTC
- Part Number: 1039
- Capacity: 13 ton
- Jaw Type: 2-jaw fixed
- Maximum Reach: 11 inch
- Maximum Spread: 12 inch
- Jaw Thickness: 9/16 inch
- Jaw Width: 1 inch
- Screw Size: 13/16-16 thread, 12 inch long
- System Compatibility: Designed to remove or install parts such as bearings, gears or pulleys in automotive or industrial settings; replaces or complements other OTC Grip-O-Matic pullers when large spread or reach is required.
- The OTC 1039 can also be referred to as OTC 13 ton puller, OTC 2-jaw Grip-O-Matic, OTC heavy-duty puller 1039, OTC mechanical puller large spread, OTC industrial jaw puller.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.
Q: What does "maximum reach" and "maximum spread" mean?
A: Maximum reach is the distance from the jaw grip point to the back of the screw when fully extended (11 inches in this case), while maximum spread refers to the widest diameter the jaws can open (12 inches) so the puller can grip around larger parts.
Q: Can this puller handle deep seated parts?
A: Yes, with its 11 inch reach, it’s suited for parts that are located deep on shafts or within housings; ensure that there is enough clearance to use the screw safely without interference.
Q: Is OTC 1039 safe for high torque applications?
A: Yes, provided you stay within the 13 ton capacity, use proper jaw alignment, ensure pulling screws are maintained (lubricated and undamaged), and inspect tool condition before use.
