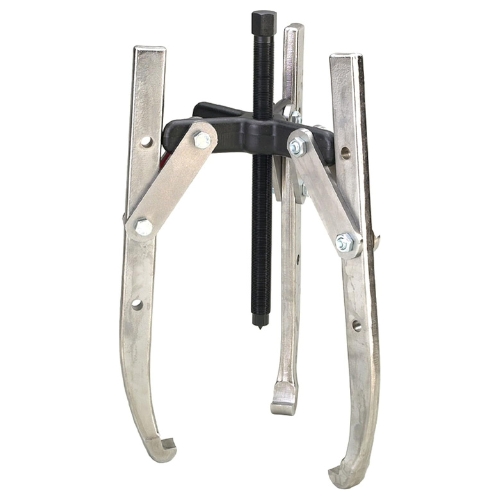

OTC 1041 Mechanical Grip-O-Matic Puller, 13 Ton, 2/3-Jaw
- The OTC 1041 Grip-O-Matic puller is a mechanical 13 ton capacity puller with choice of 2- or 3-jaw configuration; designed for removal of gears, bearings, pulleys etc., forged steel, heat treated to exceed rated strength.
- Features:
- 13 ton capacity for heavy-duty pulling tasks beyond lighter pullers.
- 2/3-jaw reversible design gives flexibility for either two or three jaw setup per workpiece requirement.
- Maximum reach 11 inch and maximum spread 12 inch accommodates deeper seated parts and larger outer diameters.
- Jaw thickness 9/16 inch with jaw width 1 inch thick jaws provide strength; width ensures grip around component.
- Screw Size: 13/16-16 thread with 12-inch screw length long screw allows for deeper reach and strong leverage.
- Specifications:
- Manufacturer: OTC
- Part Number: 1041
- Capacity: 13 ton
- Jaw Type: 2/3-jaw reversible
- Maximum Reach: 11 inch
- Maximum Spread: 12 inch
- Jaw Thickness: 9/16 inch
- Jaw Width: 1 inch
- Screw Thread / Length: 13/16-16 x 12 inches
- System Compatibility : For removal and installation of press-fitted parts such as bearings, gears, pulleys in automotive, industrial or maintenance settings; replaces other OTC pullers where larger pull spread or reach is required.
- The OTC 1041 can also be referred to as OTC 13 ton puller, OTC 2/3 jaw puller model 1041, OTC heavy-duty Grip-O-Matic puller, OTC large spread reach puller, OTC mechanical bearing puller.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability
Q: What does 2/3-jaw reversible mean?
A: It means this puller includes jaws that can be configured either with two jaws or three jaws, and those jaws are reversible.
Q: What are the limits of reach and spread, and why are they important?
A: Reach is 11 inch, which is the depth the screw can extend into; spread is 12 inches, which is how wide the jaws can open. These dimensions determine what size or how deep a part you can safely grip and pull.
Q: Is OTC 1041 suitable for replacing other OTC pullers?
A: Yes, due to its high capacity, large reach, and spread, it can replace or complement smaller OTC pullers where larger size or greater depth is required; just ensure that the part fits within its reach and spread limits and that force is applied evenly.
