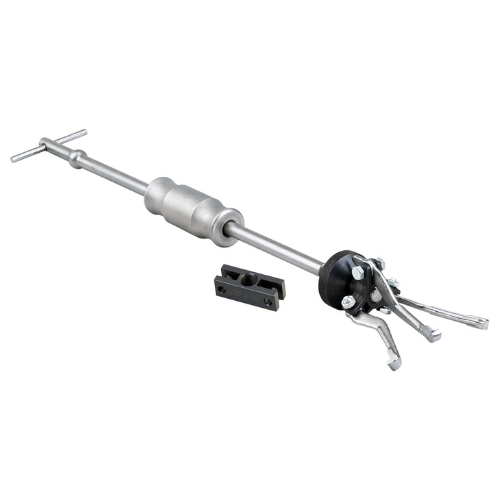

OTC 1176 Reversible-Jaw Slide Hammer Puller, 2/3-Jaw, 27 inch, 2-1/2 lb Hammer
- This OTC 1176 Reversible-Jaw Slide Hammer Puller is a mechanical slide hammer tool with reversible or interchangeable 2- or 3-jaw configuration, designed to remove gears, bearings, seals, race outer rings etc.; it includes a 2-1/2-pound hammer and a total length of 27 inches.
- Features:
- Includes 2-1/2 lb slide hammer delivers impact force to help loosen stubborn parts without damaging the component.
- 27 inch overall length gives reach to access components situated deep or recessed.
- 2-jaw spread ranges: inside 1-1/4 inch to 3-1/2 inch; outside 1 inch to 4-1/2 inch allows gripping from inside and outside with 2 jaws.
- 3-jaw spread ranges: inside 1-1/2 inch to 4-1/4 inch; outside 1-1/2 inch to 4-1/2 inch adds flexibility for different geometries with 3 jaws.
- Specifications:
- Manufacturer: OTC
- Part Number: 1176
- Type / Function: Reversible-jaw slide hammer puller
- Hammer Weight: 2-1/2 lb
- Overall Length: 27 inch
- 2-Jaw Spread (Inside): Min 1-1/4 inch, Max 3-1/2 inch
- 2-Jaw Spread (Outside): Min 1 inch, Max 4-1/2 inch
- 3-Jaw Spread (Inside): Min 1-1/2 inch, Max 4-1/4 inch
- 3-Jaw Spread (Outside): Min 1-1/2 inch, Max 4-1/2 inch
- System Compatibility: Designed to work on internal pulling jobs (bearing cups, outer races etc.) or external pulling (gears, pulleys etc.), using two or three jaws as needed. Replaces or complements other slide hammer pullers for jobs needing reversible jaws and long reach.
- The OTC 1176 can also be referred to as OTC reversible jaw slide hammer puller, OTC 1176 puller 2-3 jaw, OTC slide hammer bearing puller, OTC gear puller slide hammer, OTC internal external puller 1176.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability
Q: What does "reversible jaws 2 or 3-jaw" mean with this puller?
A: It means you can configure the tool with two jaws or three jaws depending on whether you need inside or outside grip, and the jaws are reversible so the same jaw parts can often be used in both inside and outside puller arrangements.
Q: What size components will this tool pull safely?
A: With 2 jaws, it can pull components with internal spread as small as 1-1/4 inch or outside spread as small as 1 inch, and up to 3-1/2 inch inside or 4-1/2 inch outside. With 3 jaws, its range is about 1-1/2 inch to 4-1/4 inside or up to 4-1/2 outside. Check the specific part history and condition before use.
