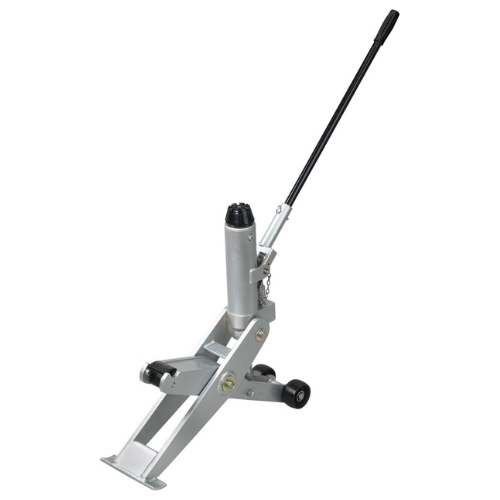

OTC 1540 Fork Lift Jack, 4-Ton Capacity (8,000 lb)
- An OTC 1540 Fork Lift Jack rated at 4-ton (8,000 lb) capacity; intended for lifting or supporting heavy lift truck or material-handling equipment attachments, forks, or other loads. It features a low starting height and adjustable pad to suit different fork shapes.
- Features:
- 8,000 lb capacity for heavy loads typical of lift trucks or heavy material-handling setups.
- Low starting height of 2-5/8 inch; minimum low lift of 2-1/4 inch helps get under tight forks or raised loads.
- Maximum lifting height of 16-1/4 inch enough range for many lift applications.
- Two-position lift pad accommodates both flat and edged surfaces on lift truck forks adds flexibility.
- 30-inch handle with handle stop improves leverage and safety when maneuvering heavy loads.
- Specifications:
- Manufacturer: OTC
- Part Number: 1540
- Capacity / Load Rating: 8,000 lb (4 tons)
- Minimum Height (Pad Lowered): 2-1/4 inch
- Starting Height: 2-5/8 inch
- Maximum Lifting Height: 16-1/4 inch
- Handle Length: 30 inch
- Lift Pad: Two-position (flat and edged surfaces)
- System Compatibility: Designed to lift and position lift truck attachments, pallet forks, or loads on lift trucks; useful in forklift maintenance or shop environments for supporting or adjusting forks or fork attachments.
- The OTC 1540 can also be referred to as OTC lift truck jack 1540 4-ton, OTC low-height forklift support jack, OTC 8,000 lb shop jack for forks, OTC two-position pad forklift jack, OTC handle-stop pad lifting jack.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability
Q: What is the difference between "minimum height" and "starting height"?
A: "Minimum height" refers to the lowest the lift pad can reach (2-1/4 inch for this jack), which is the clearance needed under the load or fork; "starting height" is the height of the pad when fully lowered (2-5/8 inch), often including mounted height or pad thickness.
Q: What does the two-position pad do?
A: The two-position lift pad allows the jack to adapt to either flat forks or edged forks on lift trucks by switching or positioning the pad accordingly so that contact is stable and load distributed safely.
Q: Is this jack safe for use under heavy loads and in tight clearance situations?
A: Yes, it’s designed with low minimum heights and strong steel construction and seals. Still, always ensure the load is secure, forks are adequately positioned, and you do not exceed the rated 8,000 lb capacity. Maintenance of seals and hydraulics is key.
