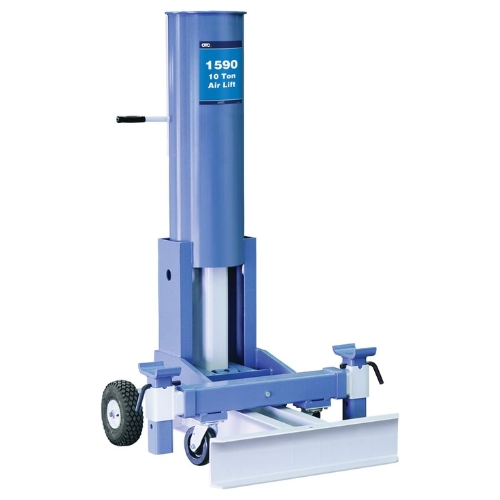

OTC 1590 Air Lift Jack, 10 Ton Capacity, Portable Heavy-Duty Lift
- The OTC 1590 Air Lift is a heavy-duty shop jack rated for 10 ton lifting capacity; using 200 PSI shop air it lifts loads from low-height service level up to tall heights for truck or trailer applications.
- Features:
- 10 ton capacity at 200 PSI adequate for heavy truck, trailer, and large-equipment lifting.
- Lifting range 13 inches minimum to 52 inches maximum height provides both low-clearance starting and elevated lift height coverage.
- Automatic mechanical safety catch with five height positions ensures operator safety at intermediary heights.
- Adjustable lifting saddles and extra-wide stance for enhanced stability under heavy loads.
- Two large swivel casters and pneumatic tires (or large wheels) for mobility, plus control valve with fittings (air inlet at 200 PSI).
- Specifications:
- Manufacturer: OTC
- Part Number: 1590
- Capacity / Load Rating: 10 tons (20,000 lb) at 200 PSI air pressure
- Minimum Lift Height: 13 inch
- Maximum Lift Height: 52 inch
- System Compatibility: Suited for lifting truck and trailer frames, large equipment undercarriages, or other heavy duty service tasks; replaces smaller portable jacks when capacity, height range, or safety steps are required.
- The OTC 1590 Air Lift can also be referred to as OTC 10 ton air lift, OTC heavy-duty portable air jack, OTC air-powered shop jack 1590, OTC truck lift air jack, OTC OTC Tools 10 ton air-lift jack.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.
Q: What air pressure is required to operate the OTC 1590 safely?
A: The OTC 1590 is designed for about 200 PSI shop air to reach its full rated capacity of 10 tons; using lower pressure reduces lifting force and may limit lift speed.
Q: How does the automatic mechanical safety catch work?
A: It engages at any one of five programmed height positions to lock the lift automatically, preventing sudden drops; it must be manually released to continue lifting or lowering.
Q: What kind of equipment is this air lift intended for?
A: It is suited for heavy truck/trailer frame work, large undercarriage jobs, powertrain removal/installation, and any application where a 10 ton lift range with significant height variability and safety features is needed.
