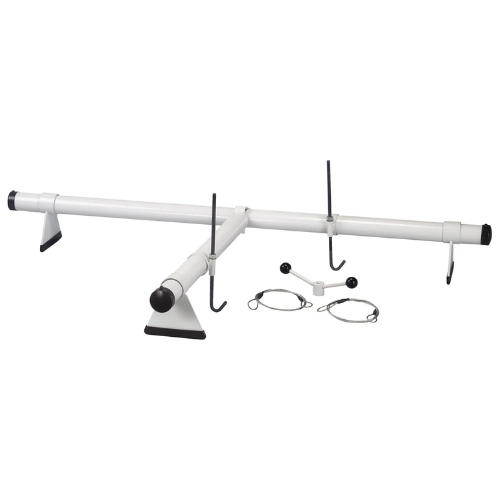

OTC 1725 Engine Support Bar, 3 Point, 700-lb Capacity Steel

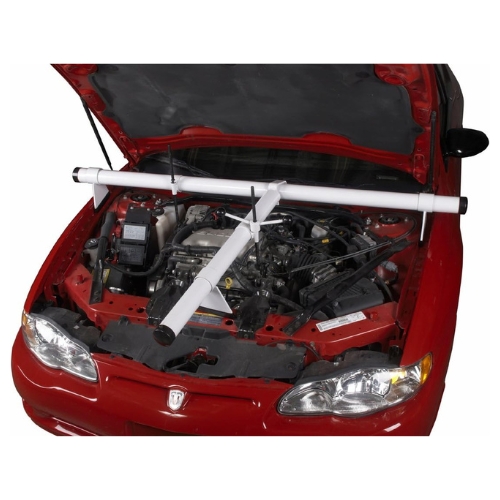

- The OTC 1725 3 Point Engine Support Bar is a transverse support tool designed to hold engines or transmissions in place during service work; it attaches via the vehicle’s lip structure using support stands, J-hooks, and optional sling or third-arm bar. It is not a lifting device for raising the engine only for supporting the engine/transmission already lifted or removed from mounts.
- Features:
- 700-lb rated capacity supports moderate weight transverse engine/transmission assemblies.
- Self-centering design to prevent tipping on inclined vehicle lip surfaces enhances stability and safety.
- Smooth sliding legs that adjust easily to different vehicle widths accommodates a variety of vehicle frame geometries.
- PVC-coated support legs and J-hooks protect vehicle finish and reduce risk of scratching.
- "Quick Connect" third-point bar for option of three-point support and increased load stability.
- Spinner handle for fast adjustment of width and setting, simplifies setup.
- Specifications:
- Manufacturer: OTC
- Part Number: 1725
- Capacity: 700-lb maximum supporting load
- Material: Steel, with PVC-coated support legs and J-hooks
- Product Dimensions: Length 71-1/4 inch; Width 10-5/8 inch; Height 3-15/16 inch
- The OTC 1725 can also be referred to as 3-Point Engine Support Bar 1725, OTC transverse support bar, engine support transverse bracket, OTC 1725 support bar steel, and OTC 700-lb engine support bar.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.
Q: Can this support bar be used if the vehicle has no engine mount brackets accessible?
A: Yes, the 1725 includes slings and J-hooks so that even if no engine brackets are available, the engine or transmission can be supported via a sling wrapped around it. However, ensure the sling is properly secured and the vehicle’s lip structure is sufficiently strong.
Q: How do I determine if my vehicle’s lip structure can safely support the 1725 bar?
A: Check the vehicle manufacturer’s body or frame strength at the lip where the support stands will bear load; look for flat, reinforced surfaces. Avoid applying load to thin sheet metal or areas that might deform.
Q: Is the third-arm support mandatory for certain setups?
A: The third-arm bar is optional in some cases; used when extra support is needed, especially for long overhangs or sloped lips to prevent tipping or imbalance. Always ensure proper balance for safety.
