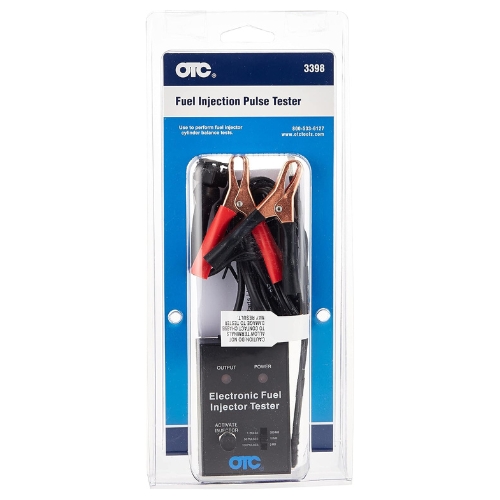

OTC 3398 Fuel Injection Pulse Tester, 4.9 x 2 x 8.1 inch
- The OTC 3398 Fuel Injection Pulse Tester is a diagnostic tool for checking cylinder balance by firing individual fuel injectors in selectable pulse durations; it includes a wiring harness adapter and instructions from OTC Tools/Bosch. It is intended for use with gasoline-fuel electronic injection systems not diesel.
- Features:
- Provider of three pulse modes: one pulse of 500 milliseconds; 50 pulses of 10 milliseconds; 100 pulses of 5 milliseconds allows diagnosis of injector consistency issues.
- Selectable 1/2-second increment triggering of individual injectors enables cylinder balance testing.

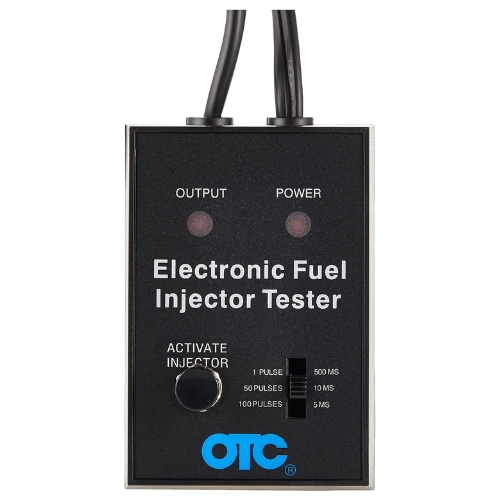

- Power and output indicator lights visually confirm test activation and pulse output.
- Includes wiring harness adapter and instruction manual ensures correct connection and safe operation.
- Designed for use on vehicle battery as power source portable and usable in typical automotive service conditions.
- Specifications:
- Manufacturer: OTC
- Part Number: 3398
- Pulse Modes: 500 milliseconds (1 pulse); 10 milliseconds (50 pulses); 5 milliseconds (100 pulses)
- Trigger Interval: 1/2 second increment per injector
- Power Source: Vehicle battery (12-volt typical automotive system)
- Dimensions: 4.9 x 2 x 8.1 inch (length x width x height)
- The OTC 3398 can also be referred to as fuel injection pulse tester, fuel injector pulse tester, electronic injector pulse tool, OTC injector diagnostic tester, and automotive fuel injector tester.
OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.
Q: What vehicles are compatible with the OTC 3398 Fuel Injection Pulse Tester?
A: It is compatible with most gasoline vehicles fitted with electronic fuel injection systems; it should not be used on diesel injectors. Check the vehicle service manual to verify it uses a compatible injector type.
Q: How do I use the different pulse modes?
A: The tester allows three pulse durations (500 milliseconds single pulse; 50 pulses at 10 milliseconds; 100 pulses at 5 milliseconds) to simulate injector firing; use longer pulses for coarse testing and shorter pulses for checking fine responsiveness and leakages.
Q: Is an Includes section required for the OTC 3398?
A: No, it is not required because this product is a single tool with non-distinct components beyond the harness adapter and instructions which are standard accessories rather than separate distinct items.
