OTC 3505A 100 Series Autoranging Automotive Multimeter, 12-Function Vehicle Diagnostic Meter

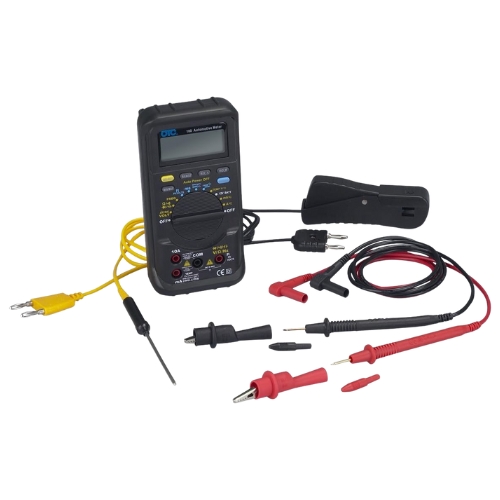

- The OTC 3505A is a 100 Series autoranging automotive multimeter designed for diagnosing vehicle electrical systems. It combines standard multimeter functions with engine control tests and includes leads, clamp, and temperature probe.
- Features:
- Auto and manual ranging modes across voltage, current, resistance, and frequency
- Capacitance, continuity, diode, and resistance tests for component-level diagnostics
- Vehicle-specific tests: RPM clamp, dwell angle, O? cross count, injector pulse width, and duty cycle
- Data hold, min/max recording, relative mode to subtract lead resistance, fused 10 A DC current input
- Specifications:
- Manufacturer: OTC (Bosch Automotive Service Solutions)
- Part Number: 3505A
- DC Voltage Ranges: 400 mV / 4 V / 40 V / 400 V (±0.5%), 600 V (±0.8%)
- AC Voltage: 4 V / 40 V / 400 V (±0.8%), 600 V (±1.2%)
- DC Current: 40 mA / 400 mA (±1.5%), 4 A / 10 A (±2%)
- AC Current: 40 mA / 400 mA (±2%), 4 A / 10 A (±2.5%)
- Resistance: 400 ? / 4 k? / 40 k? / 400 k? (±1%), 4 M? / 40 M? (±2%)
- Capacitance: 40 nF / 400 nF / 4 µF / 40 µF (±3%), 400 µF / 4000 µF (±20%)
- Frequency: 1 Hz to 10 MHz (±0.1%)
- Duty Cycle: 0.1% to 99.9% (±2%)
- Injector Peak Voltage: 4 V / 40 V / 400 V (±5%)
- O? Cross Count: up to 500 Hz (±0.5%)
- RPM: up to 10,000 rpm (±0.5%)
- Dwell Angle: 1 to 12 cylinders (±2%)
- Pulse Width (negative): 1 ms to 999 ms (±2%)
- Temperature: -50 degreesC to +400 degreesC (±0.75% ±3 degreesC)
- System Compatibility / Application: Designed for automotive electrical diagnostics and engine control measurements
- Also referred to as OTC 3505A Multimeter, OTC 100 Automotive Diagnostics Meter, 100 Series Auto Multimeter, OTC Vehicle Multimeter, and 3505A Diagnostic Tool.
Q: Does this meter perform injector pulse width measurements?
A: Yes, it supports millisecond pulse width and peak voltage tests for fuel injectors.
Q: What accessories are included?
A: The kit includes heavy-duty test leads with removable alligator clips, an inductive RPM clamp, and a temperature probe.
Q: What is the maximum current it can measure?
A: It can measure DC current up to 10 A (fused input) and AC current up to 10 A.
