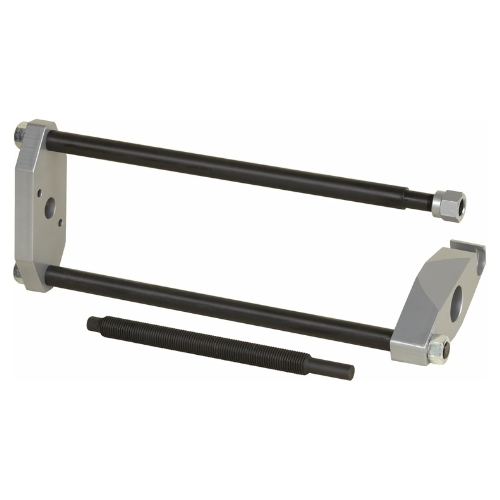

OTC 4241 30-Ton Kingpin and Brake Anchor Pin Pusher, Steel Body, Anchor Pin Adapter
- The OTC 4241 is a 30-ton kingpin and brake anchor pin removal tool designed for heavy trucks and buses. It delivers powerful mechanical push force when connected to an external hydraulic power source.
- Features:
- Delivers up to 30 tons of push force for fast, safe kingpin and anchor pin removal
- Includes built-in anchor pin adapter in the base block for brake anchor pin service

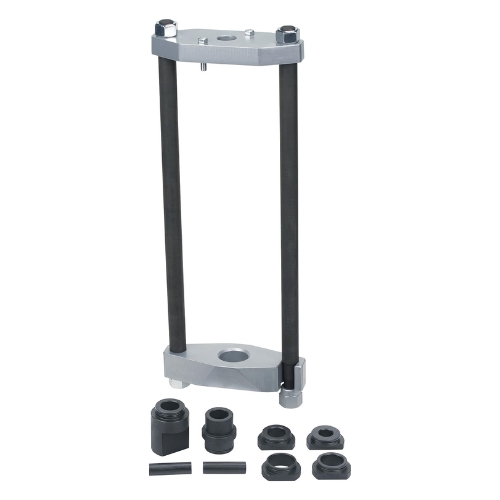

- Compatible with both straight and tapered kingpins using five special collars and two pins
- Handles kingpin diameters from 7/8 inch to 2 inches and pin lengths up to 11-1/4 inches
- Specifications:
- Manufacturer: OTC (Bosch Automotive Service Solutions)
- Part Number: 4241
- Body Material: Steel
- Capacity: 30 tons push force
- Overall Height: 27-1/2 inches
- Width: 8-1/2 inches
- Kingpin Diameter Range: 7/8 inch to 2 inches
- Maximum Kingpin Length: 11-1/4 inches
- Weight: 58.85 lbs
- Application: Designed for removal of kingpins and brake anchor pins on heavy trucks and buses; requires external hydraulic power source
OTC, part of Bosch Automotive Service Solutions, designed the 4241 Kingpin and Brake Anchor Pin Pusher as a heavy-duty solution for truck and bus maintenance. Its steel construction and integrated adapter make it ideal for shop use where reliable pin removal force is required.
Q: Does the OTC 4241 include hydraulics?
A: No. The 4241 is supplied without hydraulic components and must be used with an external hydraulic pump and hose.
Q: What kingpin sizes can it accommodate?
A: It fits kingpin diameters from 7/8 inch to 2 inches and pin lengths up to 11-1/4 inches using the included collars and pins.
Q: Can it also remove brake anchor pins?
A: Yes. The base block includes an anchor pin adapter specifically for brake anchor pin removal.
