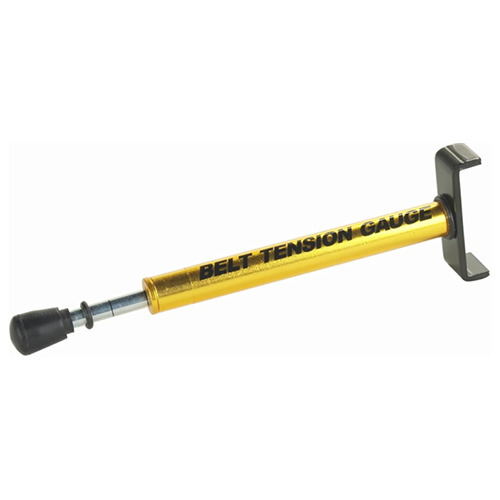

OTC 4748 Belt Tension Gauge for Motorcycle Secondary Drive Belts, 10 lb. Tension Specification
- The OTC 4748 Belt Tension Gauge is an essential tool designed to accurately measure and set the tension of secondary drive belts, particularly those requiring a 10 lb. tension specification. Its user-friendly design ensures precise adjustments after belt replacement, adjustment, or wheel service.
- Features:
- Specifically calibrated for belts with a 10 lb. tension requirement
- Easy-to-read markings facilitate quick and accurate measurements
- Compact and lightweight design enhances portability and ease of use
- Durable construction ensures long-lasting performance
- Specifications:
- Manufacturer: OTC
- Part Number: 4748
- Product Type: Belt Tension Gauge
- Dimensions: 7.75 × 2.94 × 1"
- The OTC 4748 Belt Tension Gauge is also known as a motorcycle belt tension tool, 10 lb. belt tension tester, secondary drive belt tension gauge, OTC belt tension meter, and drive belt tension measuring tool.
OTC, a division of Bosch Automotive Service Solutions, is renowned for producing high-quality automotive specialty tools and equipment. With a commitment to innovation and reliability, OTC provides professionals and DIY enthusiasts with the tools needed to perform tasks efficiently and accurately.
Q: How do I use the OTC 4748 Belt Tension Gauge?
A: To use the gauge, position the small O-ring over the 10 lb. mark. Place the U-shaped belt cradle against the bottom of the belt at a 90-degree angle and align the large O-ring to a reference point. Push upward on the rubber bumper until the small O-ring touches the tool's body, then re-align the large O-ring to the reference point. The difference in readings indicates the belt deflection. Refer to your service manual for specific deflection specifications.
Q: Is this tool suitable for all types of belts?
A: The OTC 4748 is specifically designed for secondary drive belts with a 10 lb. tension specification. It may not be suitable for belts requiring different tension settings.
Q: Can I use this gauge for automotive serpentine belts?
A: This gauge is primarily intended for motorcycle secondary drive belts. For automotive serpentine belts, it's recommended to use a tension gauge designed for that purpose.
