OTC 4794 Safety Wire Drill Guide, SAE/MM, Precision Machined, Durable Construction
- The OTC 4794 Safety Wire Drill Guide Set is an essential tool designed to facilitate the precise drilling of nuts and bolts for safety wire applications. This set ensures accurate alignment and support, reducing the risk of drill bit breakage and enhancing overall efficiency.
- Features:

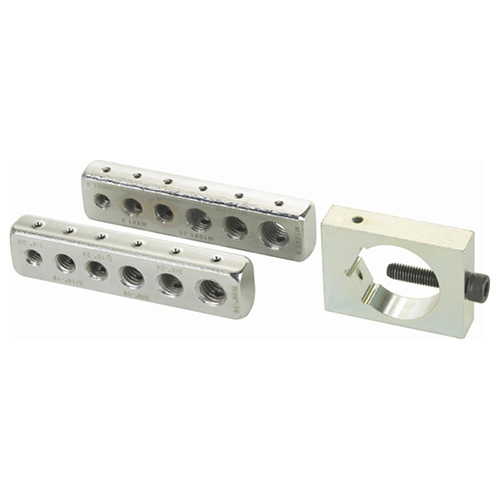

- Guides, aligns, and supports hex heads or bolt threads for precise drilling
- Hex fixture accommodates nuts and bolt heads up to 1-1/4" (31.75 mm)
- SAE fixture bar threaded for: 1/4"-20, 5/16"-18, 5/16"-24, 3/8"-18, 3/8"-24, and 7/16"-14 bolts
- Metric fixture bar threaded for: M6x1.0 mm, M8x1.0 mm, M8x1.25 mm, M10x1.25 mm, M10x1.5 mm, and M12x1.5 mm bolts
- Heavy-duty, plated metal guide blocks for durability and longevity
- Specifications:
- Manufacturer: OTC
- Part Number: 4794
- Product Type: Safety Wire Drill Guide
- Material: Plated metal
- Hex Fixture Capacity: Up to 1-1/4" (31.75 mm)
- SAE Thread Sizes: 1/4"-20, 5/16"-18, 5/16"-24, 3/8"-18, 3/8"-24, 7/16"-14
- Metric Thread Sizes: M6x1.0 mm, M8x1.0 mm, M8x1.25 mm, M10x1.25 mm, M10x1.5 mm, M12x1.5 mm
- Product Dimensions: 6.1 x 4.5 x 0.5" (15.5 x 11.4 x 1.3 cm)
- The OTC 4794 Safety Wire Drill Guide Set is also known as a safety wire drill jig, bolt drilling guide, safety wire bolt jig, nut and bolt drill fixture, and safety wire hole drilling tool.
OTC, a Bosch Automotive Service Solutions brand, has been a trusted name in the automotive industry since 1925. Renowned for producing high-quality, innovative tools and equipment, OTC serves professional technicians and DIY enthusiasts worldwide, ensuring reliability and efficiency in automotive repair and maintenance.
Q: What is the primary function of the OTC 4794 Safety Wire Drill Guide Set?
A: This set is designed to guide, align, and support hex heads or bolt threads, enabling precise drilling for safety wire applications without breaking the drill bit.
Q: What sizes of nuts and bolts are compatible with this drill guide set?
A: The hex fixture fits nuts and bolt heads up to 1-1/4" (31.75 mm). The SAE fixture bar accommodates thread sizes from 1/4"-20 to 7/16"-14, while the metric fixture bar covers sizes from M6x1.0 mm to M12x1.5 mm.
Q: Is the OTC 4794 suitable for both SAE and metric fasteners?
A: Yes, the set includes fixture bars threaded for both SAE and metric sizes, making it versatile for various applications.
