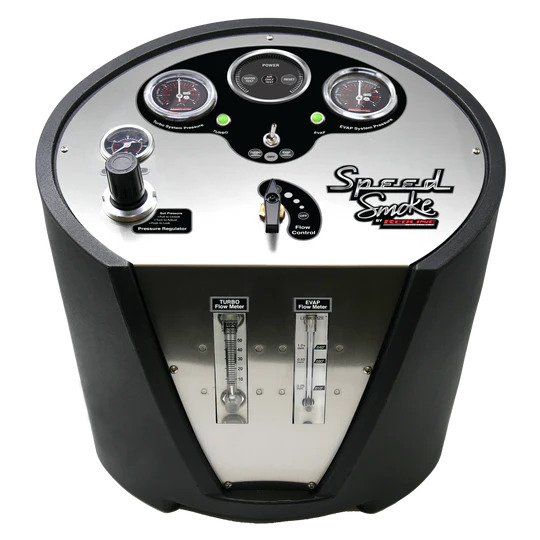

Redline Detection 95-0135 SpeedSmoke Diagnostic Leak Locator Dual Pressure Vapor Machine
- The Redline Detection 95-0135 SpeedSmoke Diagnostic Leak Locator is a professional dual-mode vapor machine designed for both low-pressure EVAP system testing and high-pressure turbo or boost leak detection. Its integrated micro compressor eliminates the need for external air, making it ideal for mobile or independent diagnostics.
- Features:

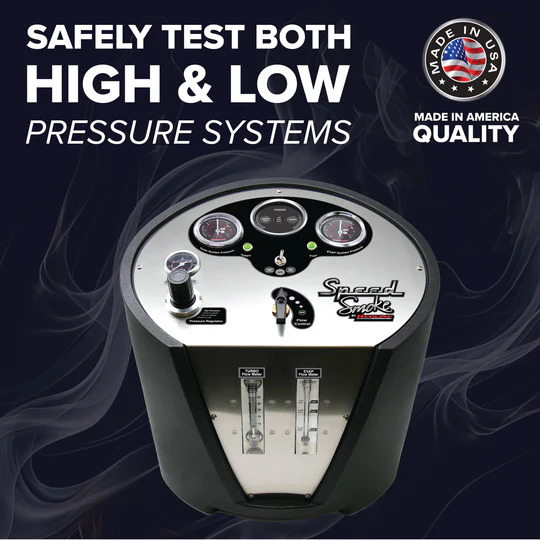

- Selectable EVAP Mode and Turbo/High Pressure Mode for testing a wide range of vehicle and engine systems.
- Variable pressure and flow control-produces up to 20x the pressure and 40x the flow of standard EVAP testers.
- Built-in micro air compressor and 12 V DC input enable fully self-contained operation.

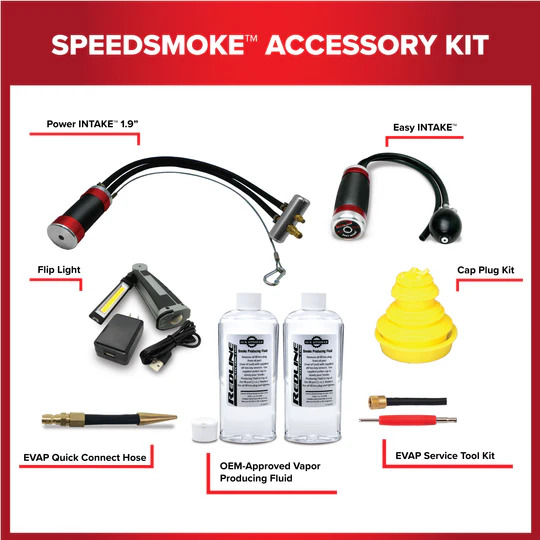

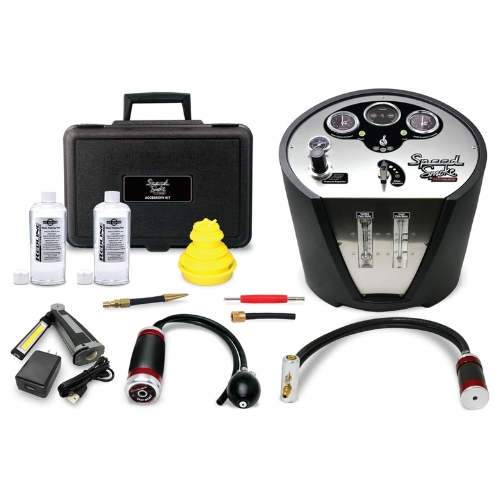

- Includes:
- Accessory storage case
- Easy Intake adapter
- Power Intake bladder adapter
- 2 bottles of OEM-approved smoke fluid
- LED cordless inspection light
- EVAP service tool kit and cap plug kit
- EVAP quick-connect hose
- Specifications:
- Manufacturer: Redline Detection, LLC
- Part Number: 95-0135
- Power Supply: 12 V DC
- Output Pressure (Turbo Mode): 2 to 17 PSI (0.14 to 1 bar)
- Output Pressure (EVAP Mode): 11-14 in. H?O (~0.47 PSI)
- Operating Temperature Range: 0 degreesF to 140 degreesF (-17 degreesC to 60 degreesC)
- Application / System Compatibility: Designed for locating leaks in EVAP systems, turbo and supercharged intakes, diesel boost systems, exhaust leaks, and vacuum circuits.
- Also known as Redline SpeedSmoke 95-0135 smoke machine, Redline dual-pressure leak locator, RDL 95-0135 vapor diagnostic machine, and Redline SpeedSmoke turbo/EVAP tester.
The Redline Detection 95-0135 SpeedSmoke Diagnostic Leak Locator provides advanced leak detection for both low-pressure fuel vapor and high-pressure boost systems. Its built-in compressor, variable output, and professional-grade accessories make it a powerful all-in-one diagnostic solution.
Q: Can this machine test both EVAP and turbo systems?
A: Yes - SpeedSmoke includes selectable EVAP and Turbo modes for diagnosing both sealed and pressurized systems.
Q: Does it require an external air source?
A: No - it includes an internal micro compressor for completely self-contained operation.
Q: What is the warranty period?
A: The SpeedSmoke machine is backed by a 1-year limited manufacturer warranty.
