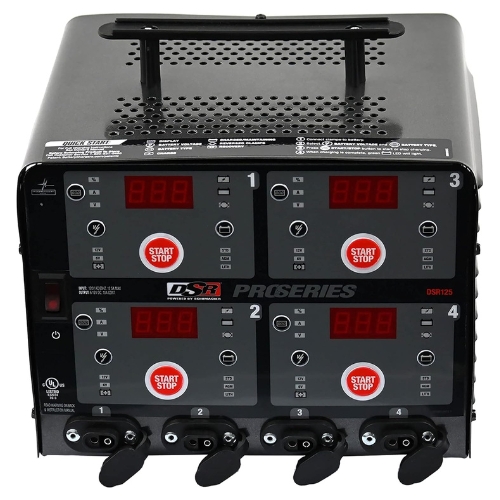

Schumacher DSR125 10 Amp 4-Bank Automatic Battery Charging Station, Steel Enclosure
- The Schumacher DSR125 is a 4-bank automatic battery charger and maintainer that lets users charge up to four batteries at once. It supports both 6-volt and 12-volt battery systems in a durable, fan-cooled steel housing.
- Features:
- Four independent microprocessor-controlled charging banks, each able to output up to 10 amps.
- Automatic detection and adjustment for 6 V or 12 V battery types.
- Multi-stage charging algorithm including float mode to maintain optimal battery charge.

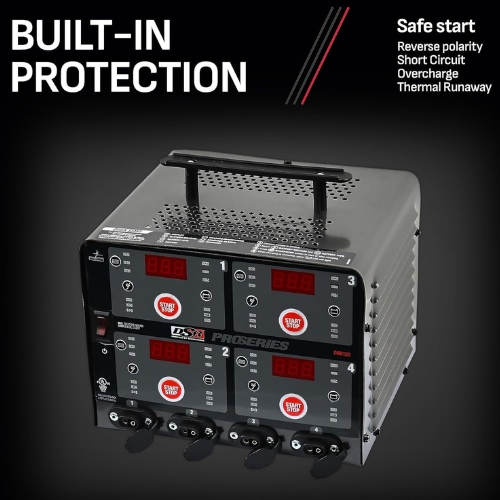

- Built-in safety protections: reverse polarity, short-circuit protection, and overcharge prevention.

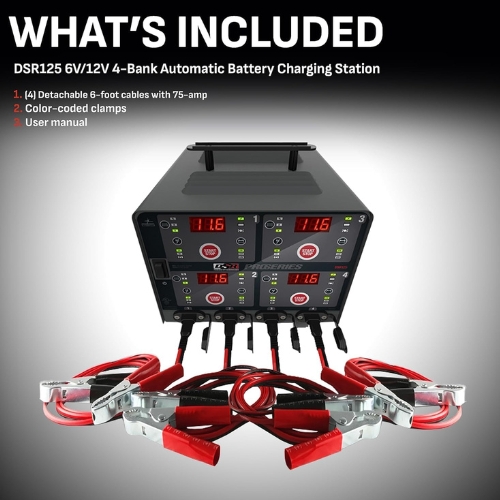

- Detachable 6-foot output cables with 75-amp color-coded clamps for each bank.
- Fan cooling and thermal runaway protection to keep performance under heat.
- Specifications:
- Manufacturer: Schumacher Electric
- Model / Part Number: DSR125
- Input Voltage: 120 V AC
- Input Current: up to 12.5 amps
- Output Voltage: 6 V / 12 V selectable
- Output Current: 10 amps continuous per bank
- Number of Banks: 4 independent charging circuits
- Battery Types Supported: Standard lead-acid, AGM, gel, deep-cycle, LiFePO4
- Cooling: Internal fan
- Protection: Reverse polarity, short circuit, thermal, overcharge
- This charger is also known as Schumacher DSR-125 4-Bank Charger, Schumacher Pro-Series 4-Bank Charger, 10 Amp Multi-Bank Battery Charger, and Schumacher DSR125 Battery Charging Station.

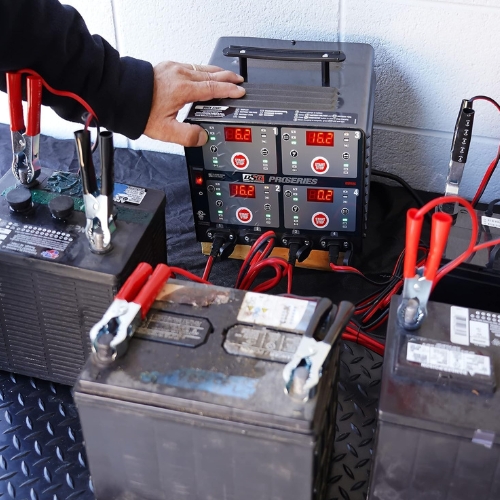

Schumacher positions the DSR125 as a powerful, professional multi-bank charger for shops or enthusiasts needing to charge multiple batteries simultaneously. Its steel construction, intelligent control, and safety features make it suited for demanding environments.
Q: Can it charge 6-volt and 12-volt batteries at the same time?
A: Yes - each bank independently supports either 6 V or 12 V, allowing mixed charging in different banks.
Q: What is the maximum output per bank?
A: Each bank can deliver up to 10 amps continuously.
Q: What safety features does it have?
A: The DSR125 includes reverse polarity protection, short circuit protection, thermal protection, overcharge prevention, and safe-start functions to avoid harmful connections.
