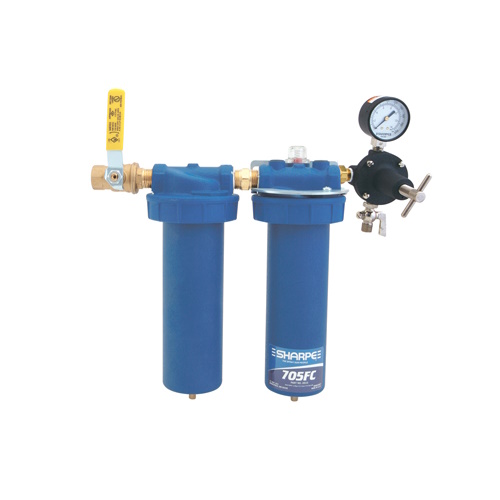

Sharpe 6910 Coalescing Filter System 705FC, 1/2" In-Line, Auto Drain, 0.01 Micron Filtration
- The Sharpe 6910 Coalescing Filter System 705FC is designed to provide clean, dry air for various applications, including prep stations and air/finishing areas. This in-line filter and coalescer effectively removes water, oil, and contaminants without the need for desiccant, ensuring optimal performance of moisture-sensitive tools and equipment.
- Features:
- Two-stage filtration system for comprehensive air purification.
- Stage 1 removes water and contaminants down to 5 microns.
- Stage 2 eliminates oil and sub-micronic particles down to 0.01 microns.
- Automatic drain feature for hassle-free maintenance.
- Designed for use in prep stations and air/finishing areas.
- Provides clean, dry air without the use of desiccant.
- Specifications:
- Manufacturer: Sharpe
- Part Number: 6910
- Model: 705FC
- Filtration Efficiency: 0.01 micron
- Air Inlet Size: 1/2" FPT
- Air Outlet Size: 1/2" FPT
- Air Flow Capacity: 70 CFM (2 m³/min)
- Maximum Operating Pressure: 175 PSI
- Maximum Temperature: 150°F (65°C)
- Dimensions: 16" (L) x 4.25" (W) x 13.5" (H)
- Weight: 5.95 lbs
- The Sharpe 6910 Coalescing Filter System 705FC can also be referred to as an in-line air filter, coalescing air filter, 0.01 micron air filter, auto drain filter system, and 1/2" FPT filter coalescer.
Sharpe is a reputable manufacturer specializing in high-quality air filtration and spray equipment. With a commitment to innovation and performance, Sharpe products are trusted by professionals in automotive, industrial, and woodworking industries to deliver clean air solutions and superior finishing results.
Q: What is the purpose of the two-stage filtration in the Sharpe 6910 Coalescing Filter System?
A: The two-stage filtration system ensures comprehensive air purification by first removing water and larger contaminants down to 5 microns, followed by the elimination of oil and sub-micronic particles down to 0.01 microns.
Q: Is the automatic drain feature adjustable?
A: The Sharpe 6910 Coalescing Filter System comes equipped with an automatic drain designed for hassle-free maintenance. For specific adjustments or settings, please refer to the user manual or contact Sharpe customer support.
Q: Can this filter system be used with any air compressor?
A: Yes, the Sharpe 6910 Coalescing Filter System is compatible with most air compressors, provided they operate within the specified parameters of 1/2" FPT fittings, a maximum air flow capacity of 70 CFM, and a maximum operating pressure of 175 PSI.
