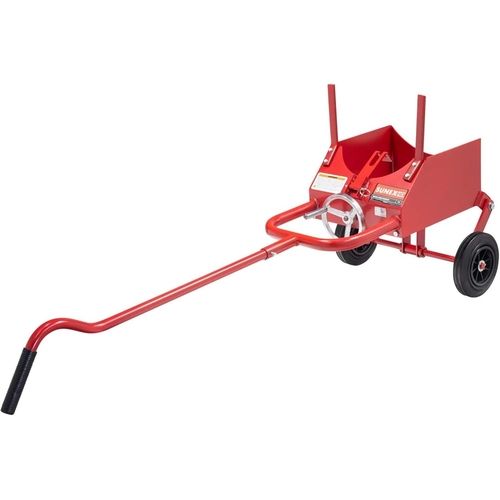

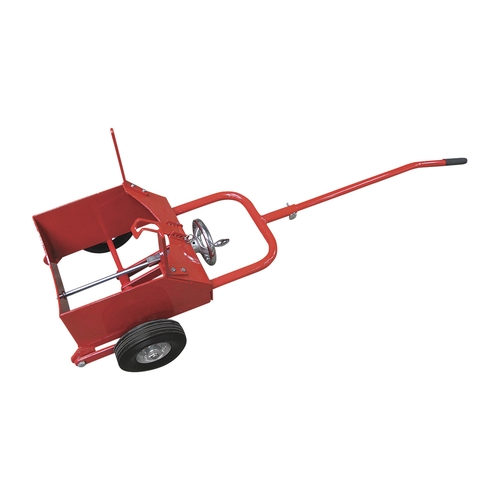

Sunex 1330 Steel Brake Drum Handler, Adjustable for 15 and 16.5 inch Drums, 63 inch Length
- The Sunex 1330 steel brake drum handler safely lifts, installs, and transports 15 inch and 16.5 inch brake drums for Class 7 and 8 tractor and trailer applications. Its adjustable angle bracket, drive screw carriage, and 8 inch rubber wheels maximize ease of use without requiring manual lifting.
- Features:
- Adjustable bracket secures brake drums of 15 inch and 16.5 inch sizes.
- Drive screw with machine-style handle smoothly raises and lowers the carriage.
- 8 inch rubber pneumatic wheels allow easy movement on shop floors.
- Removable handle facilitates compact storage.
- Overall length of 63 inches accommodates large brake drums and provides leverage.
- Specifications:
- Manufacturer: Sunex
- Part Number: 1330
- Product Type: Brake drum handler
- Drum Size Compatibility: 15 inches and 16.5 inches
- Minimum Height: 10.25 inches
- Maximum Lift Height: 15.25 inches
- Overall Length: 63 inches
- Overall Width: 20.5 inches
- Wheel Diameter: 8 inches
- Material: Steel frame with rubber pneumatic wheels
- System Compatibility / Application: removal, installation, and transport of brake drums on Class 7 and 8 tractors and trailers
- The Sunex 1330 brake drum handler can also be referred to as brake drum dolly, trailer drum handler, heavy-duty brake tool, drum remove and install cart, and commercial brake drum handler.
Sunex manufactures durable, shop-grade handling tools. The 1330 steel brake drum handler simplifies tasks involving large brake drums with adjustable drum support, smooth lift action, and pneumatic mobility.
Q: What drum sizes does this handler support?
A: It handles brake drums of 15 inches and 16.5 inches supported by most Class 7 and 8 trailer brake systems.
Q: How does the carriage adjust height?
A: The drive screw mechanism operated by a machine-style handle smoothly raises and lowers the carriage between 10.25 inches and 15.25 inches.
Q: Are the wheels suitable for shop floors?
A: Yes. The 8 inch rubber pneumatic wheels roll easily over typical shop surface with good shock absorption.
