Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit, 8-oz multi-dose cartridge

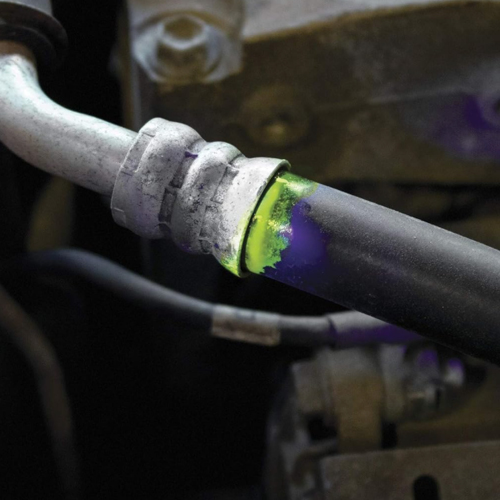

- The Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit injects UV fluorescent dye into R-134a, R-1234yf, and PAG systems, helping locate refrigerant leaks quickly and accurately in up to 64 A/C systems.
- Features:
- Universal/ester dye compatible with R-134a, R-1234yf, and PAG systems
- Large 8-oz (237 mL) BigEZ multi-dose dye cartridge supports high-volume use
- Caulking gun–style dye injector assembly for precise dispensing

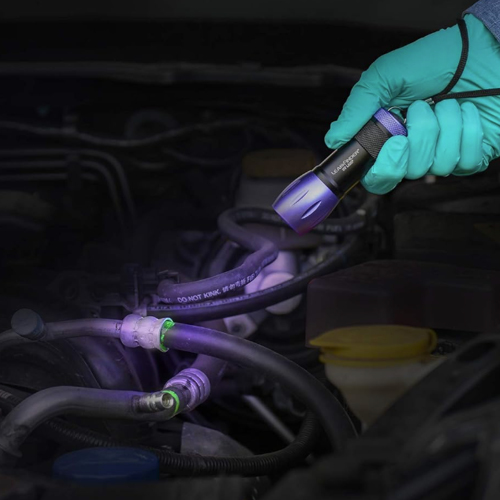

- Includes violet LED leak detection flashlight and hose with purge fitting for system connection

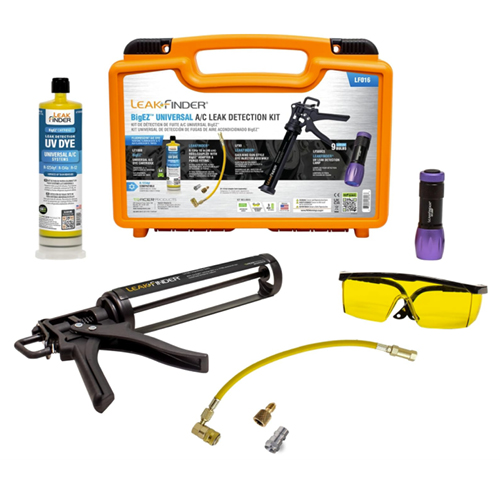

- Includes:
- LF50 caulking gun–style dye injector assembly
- BigEZ R-134a hose, coupler and purge fitting
- LF500CS LeakFinder cordless violet LED leak detection flashlight
- LF1800 8-oz (237 mL) BigEZ universal multi-dose A/C dye cartridge
- 18-inch hose with low-side coupler and purge fitting
- Specifications:
- Manufacturer: Tracer Products
- Part Number: LF016
- Dye Volume: 8-oz (237 mL)
- System Coverage: up to 64 A/C systems
- Dye Type: Universal/ester fluorescent dye
- Compatibility: R-134a, R-1234yf, PAG A/C systems
- The Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit can also be referred to as BigEZ A/C leak kit LF016, LeakFinder UV dye kit, universal A/C dye injector kit, Tracer BigEZ leak detection system, and LF016 UV dye detection kit.
Tracer Products designs the BigEZ line of A/C leak detection kits for high-efficiency diagnostic service, matching robust dye capacity with a precise injector and LED diagnostic light.
Q: Will the dye work in R-1234yf systems?
A: Yes. The universal/ester dye is compatible with R-1234yf systems. For R-1234yf, an LF60 adapter is required (not included in this kit).
Q: How many vehicles can one cartridge serve?
A: One 8-oz cartridge can treat up to 64 A/C systems.
Q: Must the dye be removed after diagnosis?
A: No. The dye remains in the system and allows re-checks without removal.
